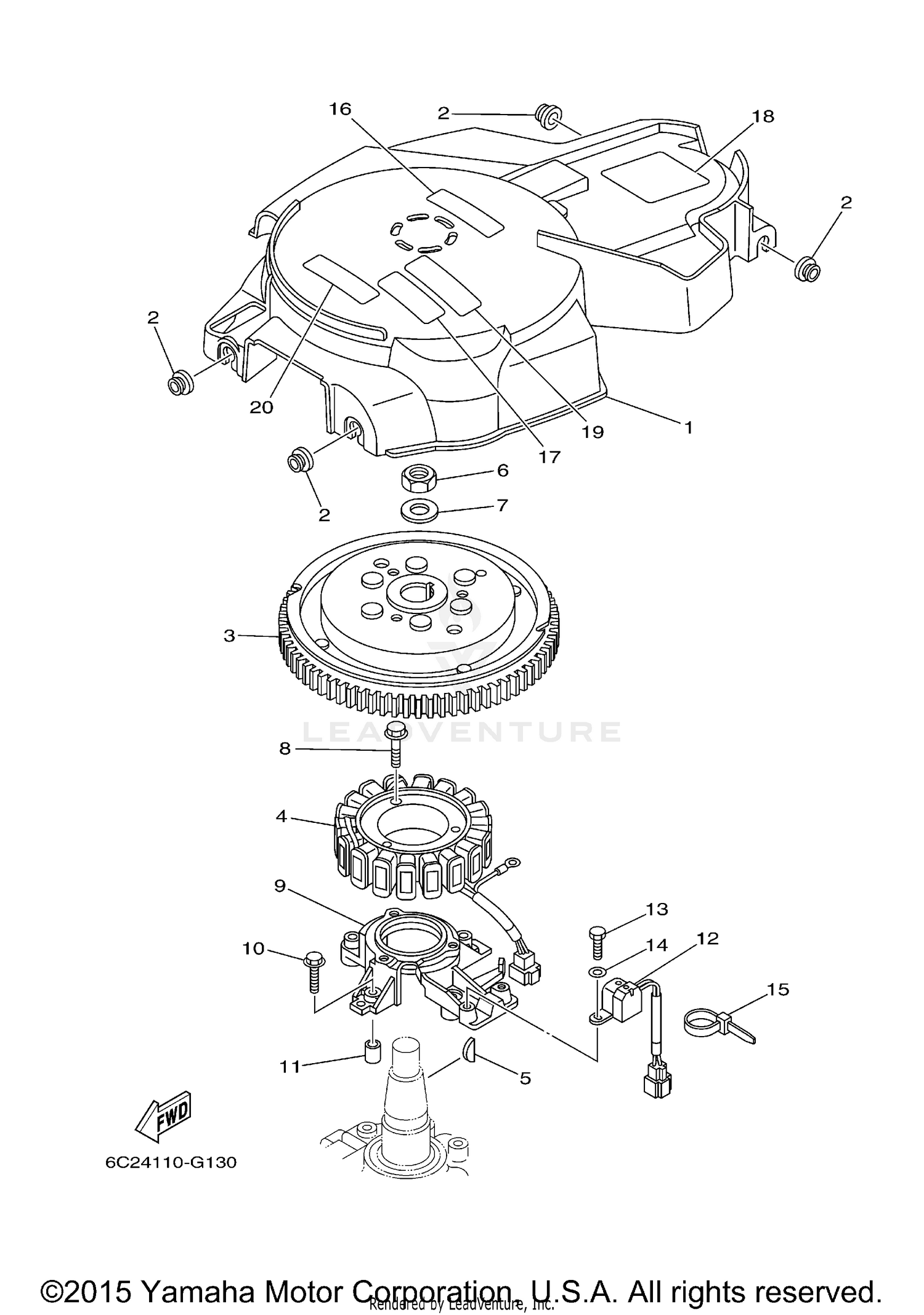

| Ref | Part Number | Description |
|---|
| 1 |
6C5-81337-00-00 |
COVER, FLYWHEEL Price: $47.70 |
| 2 |
90480-12072-00 |
GROMMET Price: $9.49 |
| 3 |
6C5-81450-01-00 |
ROTOR ASSY This part replaces 6C5-81450-00-00. Price: $559.99 |
| 4 |
6C5-81410-02-00 |
STATOR ASSY This part replaces 6C5-81410-00-00. Price: $383.70 |
| 5 |
6H4-11545-00-00 |
KEY, WOODRUFF Price: $9.35 |
| 6 |
90170-20137-00 |
NUT Price: $11.49 |
| 7 |
90201-21M18-00 |
WASHER, PLATE Price: $7.30 |
| 8 |
95024-06030-00 |
BOLT,FLANGE This part replaces 95023-06030-00. Price: $9.49 |
| 9 |
6C5-85561-00-00 |
BASE, MAGNETO This part replaces 6C5-85561-00-94. Price: $80.35 |
| 10 |
95024-06030-00 |
BOLT,FLANGE This part replaces 95023-06030-00. Price: $9.49 |
| 11 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 12 |
62Y-85580-00-00 |
COIL, PULSER Price: $91.20 |
| 13 |
97095-05012-00 |
BOLT Price: $1.75 |
| 14 |
92990-05600-00 |
WASHER, PLATE This part replaces 92995-05600-00. Price: $0.80 |
| 15 |
90465-13M97-00 |
CLAMP Price: $3.45 |
| 16 |
6C5-13437-42-00 |
MARK, CAUTION This part replaces 6C5-13437-41-00. Price: $9.65 |
| 17 |
6EE-81995-40-00 |
LABEL, WARNING This part replaces 6AH-81995-40-00. Price: $16.70 |
| 18 |
62Y-83626-00-00 |
MARK 6 Price: $8.15 |
| 19 |
6EE-81994-40-00 |
LABEL, SAFETY This part replaces 6AH-81994-40-00. Price: $17.10 |
