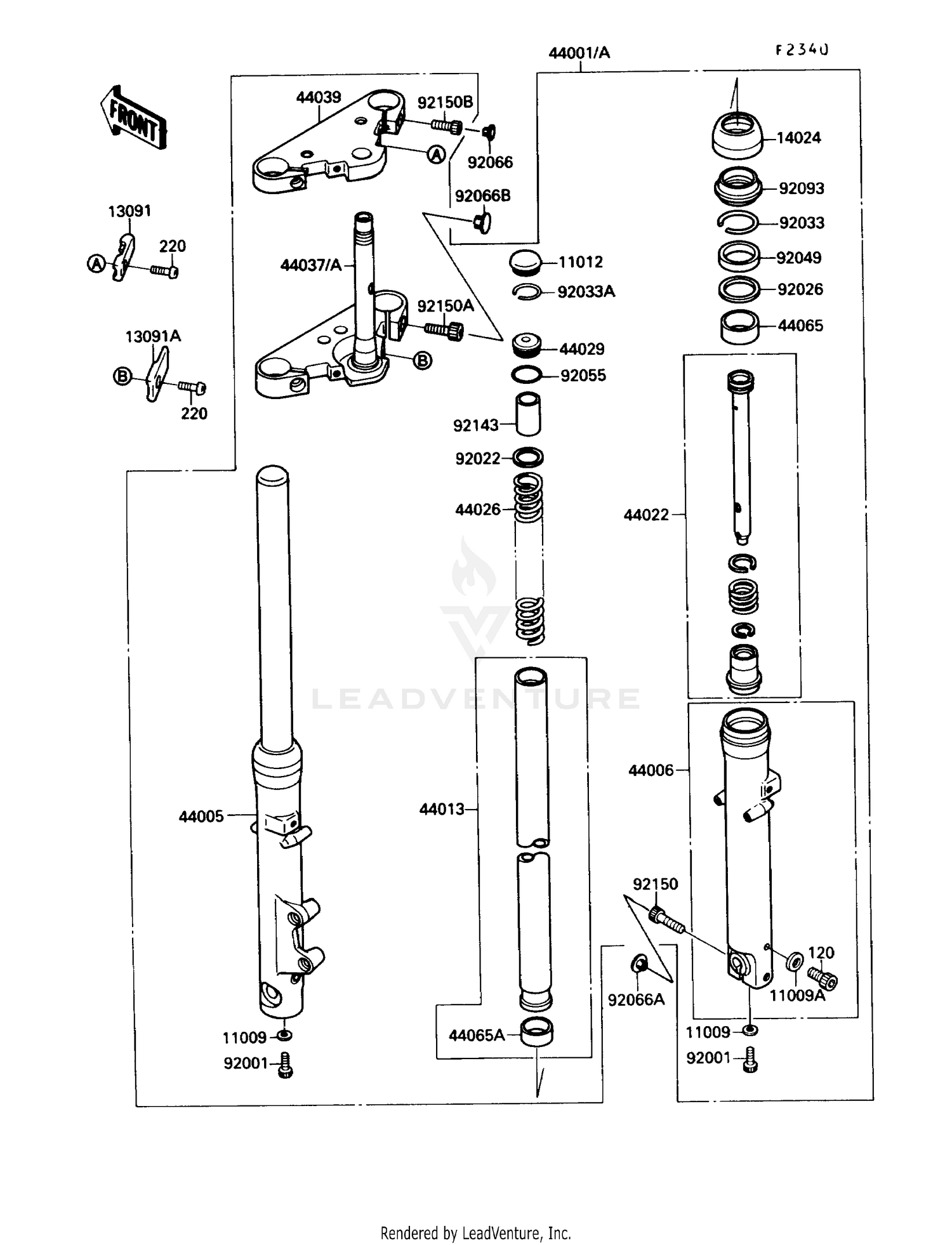

| Ref | Part Number | Description |
|---|
| 120 |
120P0608 |
BOLT-SOCKET Price: $3.53 |
| 11009 |
44045-051 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11009A |
44045-052 |
GASKET,DRAIN PLUG Price: $6.10 |
| 11012 |
11012-1618 |
CAP,FORK TOP Price: $25.14 |
| 13091 |
13091-1482 |
HOLDER,UPP Price: $27.52 |
| 13091A |
13091-1483 |
HOLDER,LWR Price: $28.93 |
| 14024 |
14024-1600 |
COVER,FORK OUTER TUBE Price: $46.63 |
| 44001 |
44001-1654 |
FORK-FRONT Price: $3,425.50 |
| 44005 |
44005-1264 |
PIPE-LEFT FORK OUTER Price: $511.64 |
| 44006 |
44006-1261 |
PIPE-RIGHT FORK OUTER Price: $485.24 |
| 44013 |
44013-1268 |
PIPE-FORK INNER Price: $453.76 |
| 44022 |
44022-1215 |
CYLINDER-FORK Price: $121.07 |
| 44026 |
44026-1372 |
SPRING-FRONT FORK Price: $84.17 |
| 44029 |
44029-1125 |
SEAT-FORK SPRING Price: $42.88 |
| 44037 |
44037-1215 |
HOLDER-FORK UNDER Price: $335.34 |
| 44039 |
44039-1151 |
HOLDER-FORK UPPER Price: $328.17 |
| 44065 |
44065-1079 |
BUSHING-FRONT FORK Price: $24.34 |
| 44065A |
44065-1087 |
BUSHING-FRONT FORK,INNER PIPE This part replaces 44065-1080. Price: $16.99 |
| 92001 |
92001-1464 |
BOLT,FORK CYLINDER Price: $6.22 |
| 92022 |
92022-1909 |
WASHER Price: $11.49 |
| 92026 |
92026-1276 |
SPACER,FORK OUTER Price: $9.51 |
| 92033 |
92033-1222 |
RING-SNAP Price: $6.51 |
| 92033A |
92033-1223 |
RING-SNAP,SPRING SEAT Price: $6.82 |
| 92049 |
92049-1363 |
SEAL-OIL This part replaces 92049-1272. Price: $25.52 |
| 92055 |
92055-1363 |
RING-O,SPRING SEAT Price: $7.34 |
| 92093 |
92093-1268 |
SEAL,FORK This part replaces 92093-1231. Price: $24.97 |
| 92143 |
92143-1053 |
COLLAR,FORK SPRING Price: $9.81 |
| 92150 |
92150-1029 |
BOLT,SOCKET,10X40 Price: $11.07 |
| 92150A |
92150-1030 |
BOLT,SOCKET,12MM Price: $9.92 |
| 92150B |
92150-1031 |
BOLT,SOCKET,8MM Price: $9.63 |
