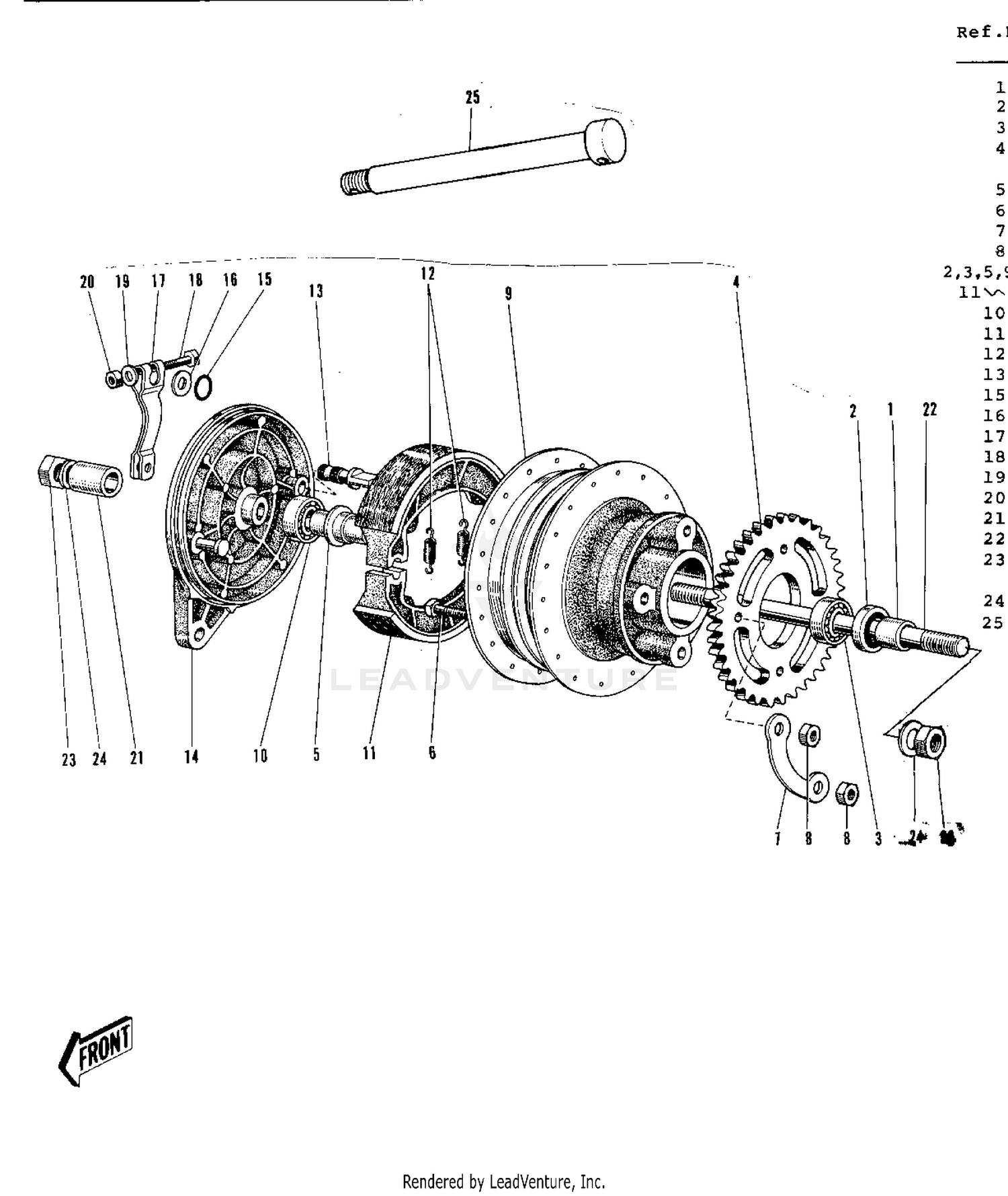

| Ref | Part Number | Description |
|---|
| 1 |
42032-005 |
COLLAR REAR HUB L.H Price: $3.96 |
| 2 |
92052-001 |
OIL SEAL RR BRK DRUM Price: $11.93 |
| 3 |
601B6301 |
BEARING BALL #6301 Price: $17.51 |
| 4 |
42041-020 |
REAR SPROCKET 37T Price: $78.34 |
| 4 |
42041-051 |
REAR SPROCKET 42T Price: $69.66 |
| 5 |
42010-003 |
SPACER RR HUB BEARING Price: $11.93 |
| 6 |
92001-021 |
BOLT REAR SPROCKET Price: $5.59 |
| 7 |
92088-003 |
WASHER RR SPRCKT LOCK Price: $4.60 |
| 8 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 10 |
601B6301Z |
BEARING BALL #6301Z Price: $20.51 |
| 11 |
41048-1085 |
SHOE-BRAKE Price: $22.53 |
| 12 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 13 |
41050-018 |
CAM SHAFT-FRONT BRAKE Price: $23.50 |
| 16 |
41052-001 |
WASHER BRAKE CAM SHT Price: $0.90 |
| 17 |
41053-002 |
LEVER,FRONT BRAKE CAM Price: $11.89 |
| 18 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 19 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 20 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 21 |
92027-1477 |
COLLAR,12.2X22X28.5 This part replaces 42032-006. Price: $9.81 |
| 22 |
42031-009 |
AXLE REAR Price: $7.49 |
| 24 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
