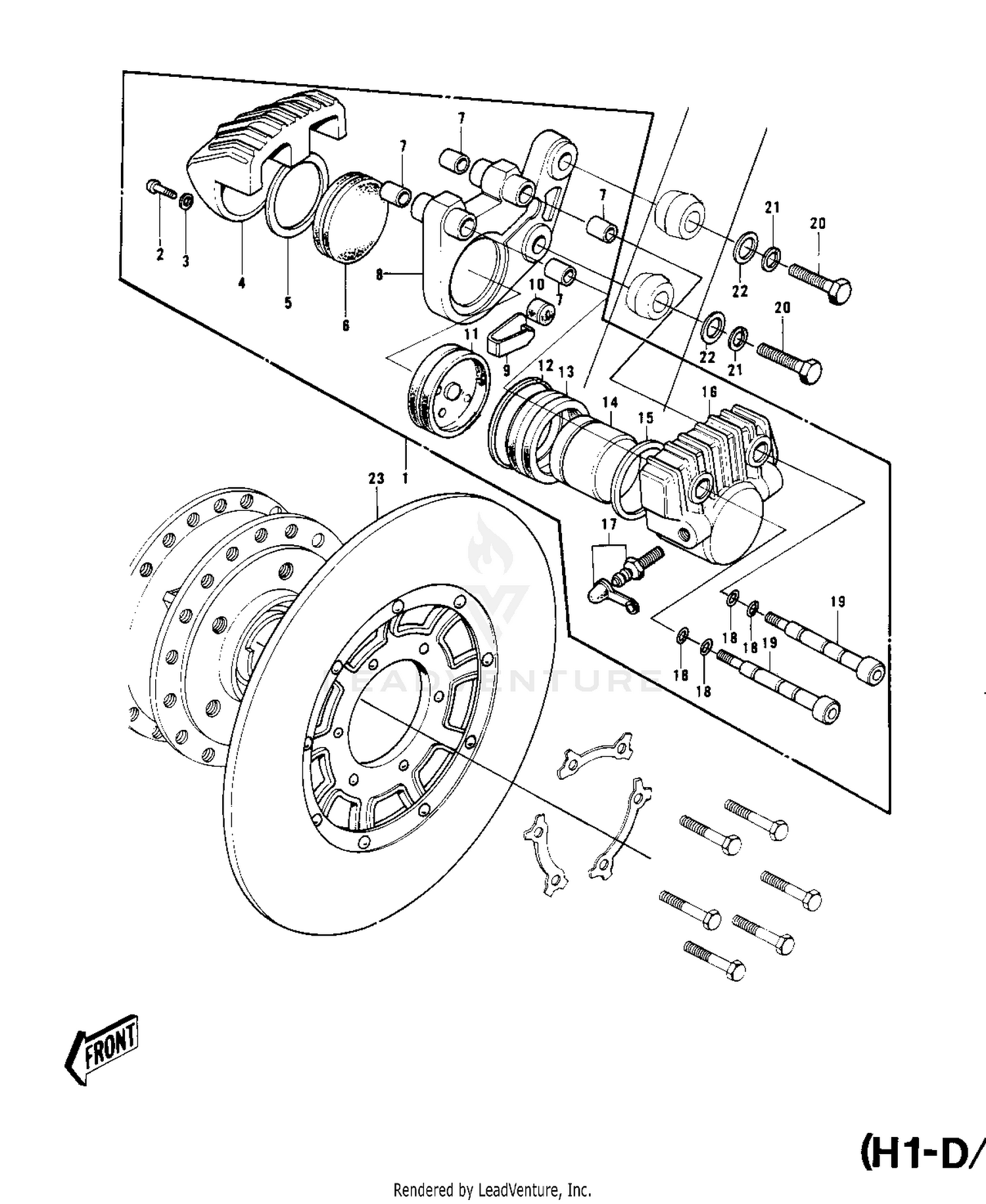

| Ref | Part Number | Description |
|---|
| 1 |
43041-001 |
CALIPER ASSY Price: $249.26 |
| 2 |
220AA0612 |
SCREW-PAN-CROS,6X12 This part replaces 220B0612. Price: $1.19 |
| 3 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 4 |
43043-001 |
CALIPER B Price: $87.99 |
| 5 |
43071-001 |
RING-PAD B Price: $11.56 |
| 6 |
43051-001 |
PAD B Price: $106.03 |
| 7 |
43052-001 |
DUST SEAL-SHAFT Price: $13.13 |
| 8 |
43044-001 |
HOLDER-CALIPER Price: $140.42 |
| 9 |
43046-001 |
STOPPER-PAD A Price: $3.48 |
| 10 |
43047-001 |
BUSHING-RUBBER Price: $9.31 |
| 11 |
43082-001 |
PAD A Price: $49.02 |
| 12 |
43058-001 |
BAND-DUST SEAL Price: $2.32 |
| 13 |
43054-001 |
DUST SEAL-PISTON Price: $4.64 |
| 14 |
43048-001 |
PISTON-CALIPER Price: $36.86 |
| 15 |
43049-1097 |
PACKING,PISTON SEAL This part replaces 43049-001. Price: $11.06 |
| 16 |
43042-001 |
CALIPER A Price: $209.08 |
| 17 |
43085-001 |
BLEEDER SET Price: $24.57 |
| 19 |
43045-001 |
SHAFT Price: $35.22 |
| 20 |
43070-001 |
BOLT-HEX HEAD,10X43 Price: $3.62 |
| 21 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 22 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
| 23 |
41080-001 |
DISC PLATE-FRONT BRK Price: $408.49 |
