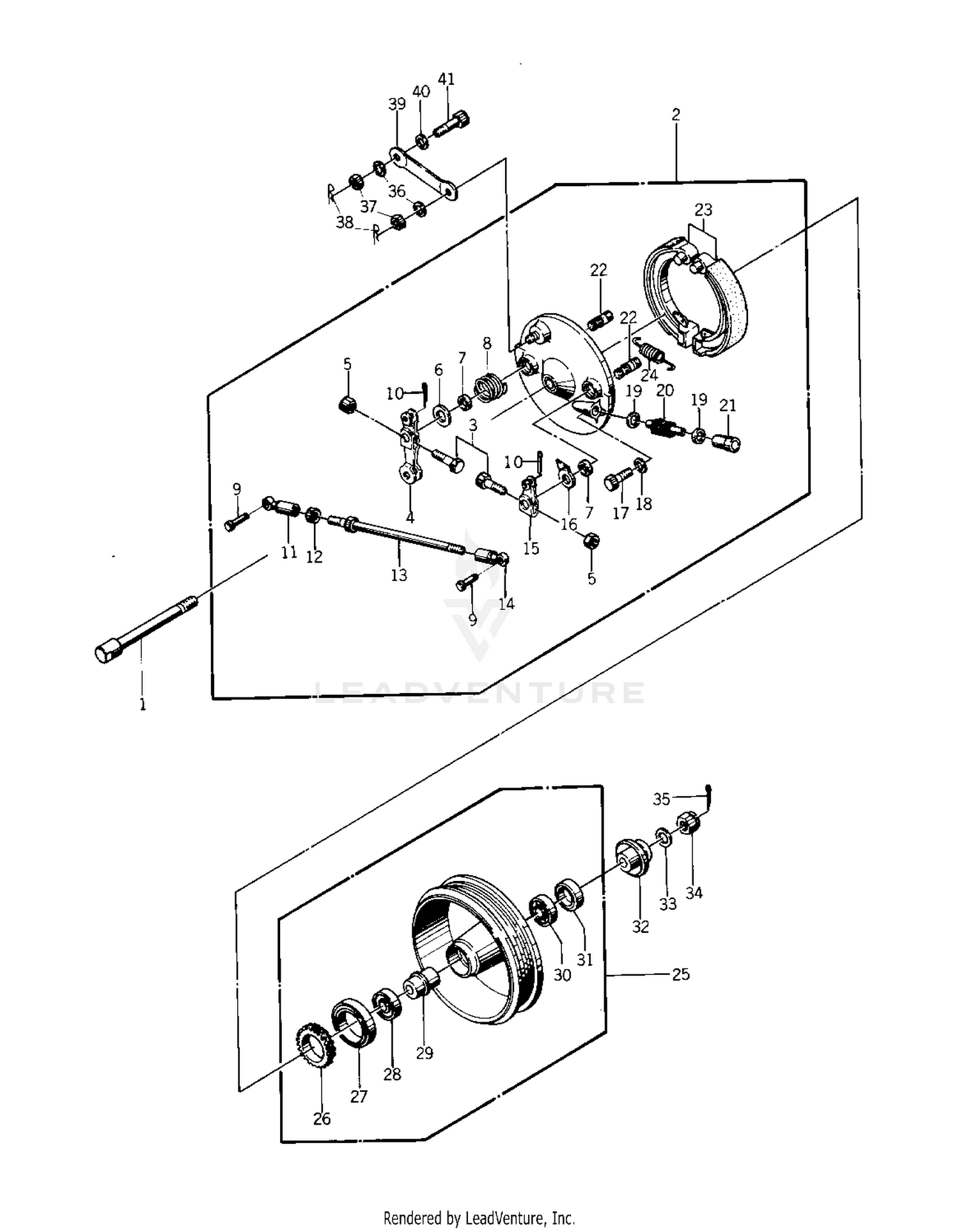

| Ref | Part Number | Description |
|---|
| 1 |
41068-045 |
AXLE,FRONT Price: $37.25 |
| 3 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 4 |
41053-011 |
LEVER FRT BRK CAM 1ST Price: $30.73 |
| 5 |
41072-007 |
NUT,6MM Price: $3.92 |
| 6 |
41052-005 |
WASHER,BRAKE CAMSHAFT Price: $3.71 |
| 7 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 8 |
41056-001 |
SPRING FR BRK CAM LEV Price: $10.17 |
| 9 |
41055-003 |
PIN BRAKE CONNECT ROD Price: $9.02 |
| 10 |
550AA1210 |
PIN-COTTER,1.2X10 This part replaces 550D1210. Price: $2.65 |
| 11 |
41058-008 |
ROD END,BRK CONNECT Price: $13.82 |
| 12 |
311AA0500 |
NUT-HEX,5MM This part replaces 311B0500. Price: $0.47 |
| 13 |
41057-004 |
ROD BRK CAM LEV CONCT Price: $39.96 |
| 14 |
41058-009 |
ROD END,BRK CONNECT Price: $14.49 |
| 15 |
41053-012 |
LEVER FRT BRK CAM 2ND Price: $21.88 |
| 16 |
41085-015 |
INDICATOR,FR BK SHOE Price: $8.42 |
| 17 |
112BA0618 |
BOLT-UPSET This part replaces 112G0618. Price: $1.03 |
| 18 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 19 |
41063-003 |
WASHER PINION THRUST Price: $4.64 |
| 20 |
41060-007 |
PINION SPEEDOMETER Price: $16.38 |
| 21 |
41062-003 |
BUSH SPEDMETER PINION Price: $29.59 |
| 22 |
41050-016 |
CAM SHAFT,FRONT BRAKE Price: $46.88 |
| 23 |
41048-1090 |
SHOE-BRAKE This part replaces 41048-019. Price: $32.24 |
| 24 |
41049-004 |
SPRING FRNT BRK SHOE Price: $4.84 |
| 25 |
41034-007 |
DRUM-ASSY,FR BRK Price: $184.46 |
| 26 |
41059-009 |
GEAR SPEEDOMETER Price: $22.70 |
| 27 |
92050-017 |
OIL SEAL WOC55687 Price: $35.72 |
| 29 |
41039-011 |
SPACER F AXLE BEARING Price: $8.54 |
| 30 |
601B6302 |
BEARING BALL #6302 Price: $9.05 |
| 31 |
92052-005 |
OIL SEAL WTC25428 Price: $24.82 |
| 32 |
41069-029 |
COLLAR,FRONT AXLE Price: $7.05 |
| 33 |
410AA1400 |
WASHER-PLAIN-SMALL,14MM This part replaces 410B1400. Price: $2.15 |
| 34 |
92015-1765 |
NUT,CASTLE,14MM This part replaces 42045-020. Price: $9.91 |
| 35 |
550AA3025 |
PIN-COTTER,3.0X25 This part replaces 550D3025. Price: $0.62 |
| 36 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 37 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 38 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 39 |
43007-042 |
TORQUE LINK,FR BRAKE Price: $11.05 |
| 40 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
