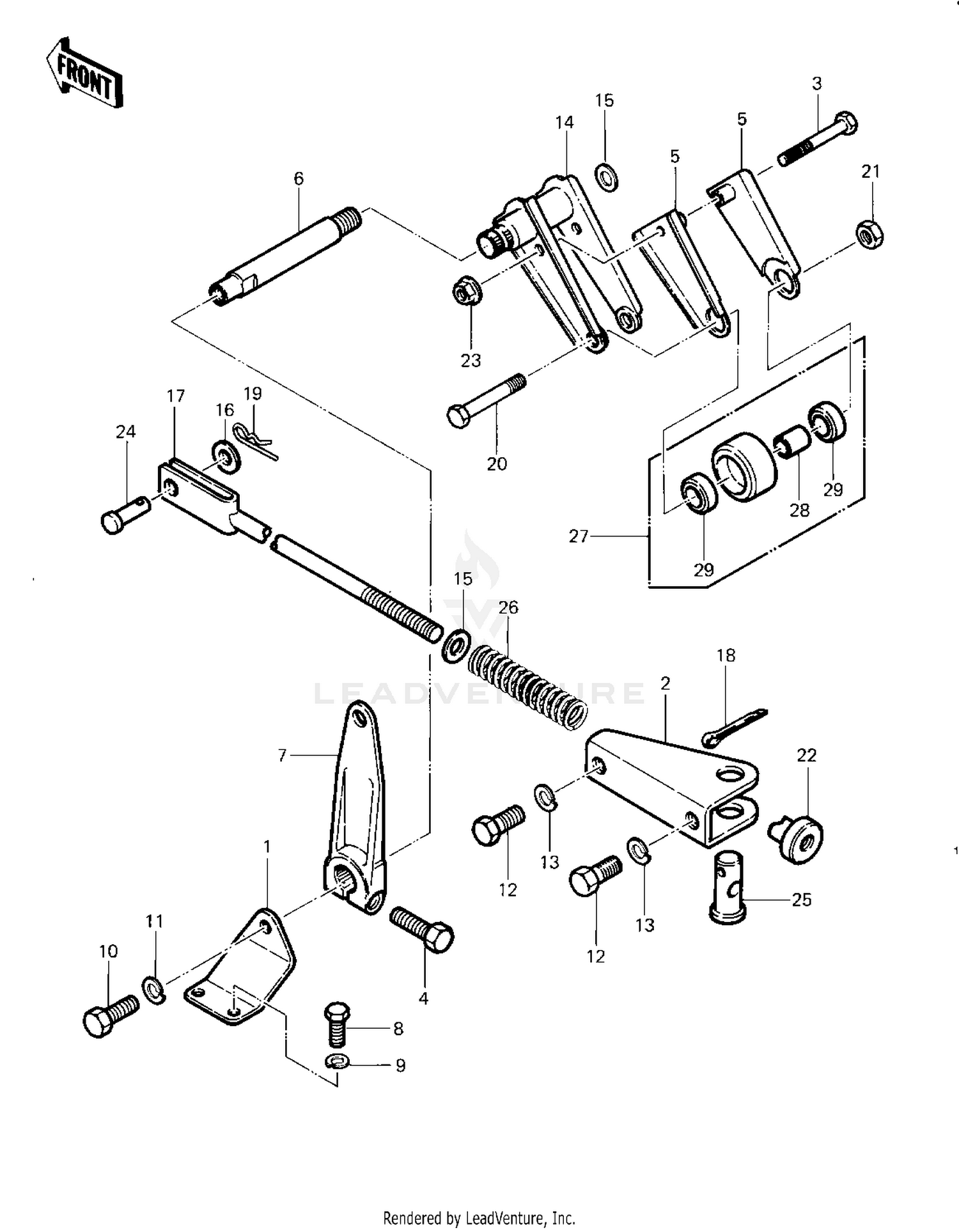

| Ref | Part Number | Description |
|---|
| 1 |
11034-4060 |
BRACKET,LEVER TENSION Price: $14.49 |
| 2 |
11034-4061 |
BRACKET,CHAIN ADJUST Price: $31.44 |
| 3 |
112G0645 |
BOLT-UPSET Price: $0.74 |
| 4 |
115BA0835 |
BOLT,SMALL UPSET This part replaces 115G0835. Price: $4.87 |
| 5 |
12053-4002 |
GUIDE-CHAIN Price: $26.24 |
| 6 |
13107-4008 |
SHAFT,L=90 Price: $28.34 |
| 7 |
13168-5002 |
LEVER-ARM-TENSIONER SET Price: $124.38 |
| 8 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 9 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 10 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 11 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 12 |
115BA0818 |
BOLT-SMALL-UPSET,8X18 This part replaces 114B0818. Price: $5.61 |
| 13 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 14 |
13168-5002 |
LEVER-ARM-TENSIONER SET Price: $124.38 |
| 15 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
| 16 |
411AA1200 |
WASHER-PLAIN,12MM This part replaces 411B1200. Price: $0.96 |
| 17 |
46102-4001 |
ROD,CHAIN TENSIONER Price: $42.32 |
| 18 |
550AA3230 |
PIN-COTTER,3.2X30 This part replaces 550D3230. Price: $2.51 |
| 19 |
554DA1200 |
PIN-SNAP,12MM This part replaces 554A1200. Price: $3.96 |
| 20 |
92001-4008 |
BOLT,HEX HEAD,8X45 Price: $8.01 |
| 21 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 22 |
92015-4008 |
NUT,BRAKE ROD ADJUSTG Price: $12.81 |
| 23 |
92019-008 |
NUT,LOCK,6MM Price: $4.26 |
| 24 |
92043-4004 |
PIN,12X22 Price: $7.55 |
| 25 |
92043-4005 |
PIN,18X33 Price: $15.77 |
| 26 |
92081-1287 |
SPRING,14X20 Price: $6.17 |
| 27 |
92122-4004 |
ROLLER,CHAIN ADJUST Price: $37.34 |
| 28 |
92027-4007 |
SPACER,CHN GDE ROLLER Price: $8.54 |
