Home / MARINE / Marine Diesel Engines / D3-170A-E / CARBURETOR ASSY

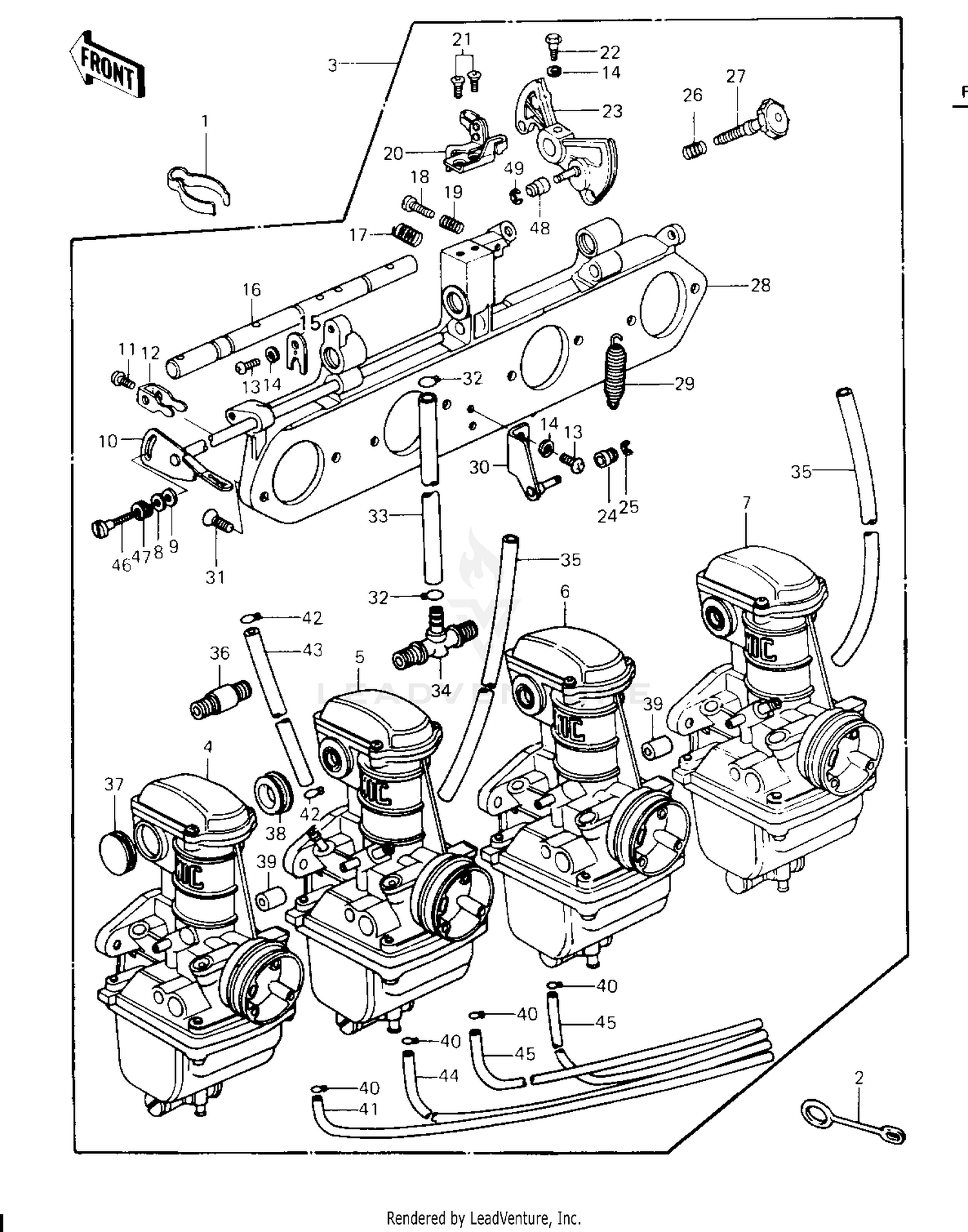

CARBURETOR ASSY

CARBURETOR ASSY

Parts (49)

RefPart NumberDescription
1 92037-1092 CLAMP,AIR VENT HOSE Price: $9.28
2 92037-134 CLAMP,OVER FLOW PIPE Price: $11.50
3 16001-1069 CARBURETOR ASSY Price: $1,118.88
3 16001-1208 CARBURETOR ASSY Price: $995.75
4 16001-1070 CARBURETOR,L.H,OUT Price: $297.23
5 16001-1071 CARBURETOR,L.H,INSIDE Price: $364.77
6 16001-1072 CARBURETOR,R.H,INSIDE Price: $297.57
7 16001-1073 CARBURETOR,R.H,OUT Price: $364.77
8 410AA0500 WASHER-PLAIN-SMALL This part replaces 410B0500. Price: $0.47
9 16039-019 WASHER,PLAIN Price: $4.45
10 16041-021 SHAFT,STARTER PLUNGER Price: $54.54
11 16046-007 SCREW,PAN HEAD,5X7 Price: $11.39
12 13168-1026 LEVER,STARTER PLUNGER Price: $25.35
13 220AA0514 SCREW-PAN-CROS,5X14 This part replaces 220B0514. Price: $4.43
14 461DA0500 WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71
15 16055-012 PLATE,SHAFT STOPPER Price: $10.89
16 16041-017 SHAFT,CARB CONNECTION Price: $68.79
17 16040-022 SPRING,CABLE PULLY Price: $9.72
18 16021-032 SCREW Price: $6.77
19 16022-010 SPRING,THROTTLE ADJST Price: $9.44
20 16077-017 BRACKET,THROTTLE CABL Price: $59.26
21 221AA0510 SCREW-CSK-CROS,5X10 This part replaces 221B0510A. Price: $3.67
22 16067-006 BOLT,HEX HEAD,5X14 Price: $18.26
23 16068-015 PULLEY,THROTTLE CABLE Price: $66.67
24 16073-016 RING Price: $10.43
25 482K3000 CIRCLIP 3MM Price: $2.76
26 16022-017 SPRING,THROTTLE STOP Price: $6.47
27 16021-1010 SCREW,THROTTLE STOP Price: $32.19
28 16065-049 HOLDER,CARBURETOR Price: $114.50
29 92081-1028 SPRING,THROTTLE PULLY Price: $76.59
30 16077-016 BRACKET,THROTTLE CABL Price: $15.67
31 16033-029 SCREW,6X14 Price: $4.87
32 92037-1104 CLAMP,HOSE This part replaces 92037-1184. Price: $1.45
33 92059-1123 TUBE,7.5X12.5X225 Price: $30.71
34 92005-1010 FITTING Price: $28.80
35 92059-1045 HOSE,AIR VENT,5X8X250 Price: $13.16
36 92005-1009 FITTING Price: $65.65
37 16039-042 CAP,RUBBER Price: $17.78
38 92071-104 GROMMET,CARBURETOR Price: $33.00
39 92059-141 HOSE,6X11.5X16 Price: $17.97
40 92037-173 CLAMP,OVERFLOW HOSE Price: $7.90
41 92059-147 HOSE,FUEL OVERFLOW Price: $36.17
42 92037-072 CLAMP-PIPE Price: $7.22
43 92059-1019 TUBE,5.3X10.5X140 Price: $27.33
44 92059-147 HOSE,FUEL OVERFLOW This part replaces 92059-134. Price: $36.17
45 92059-147 HOSE,FUEL OVERFLOW This part replaces 92059-134. Price: $36.17
46 16046-005 SCREW Price: $6.83
47 16040-009 SPRING,F Price: $11.55
48 16073-016 RING Price: $10.43
