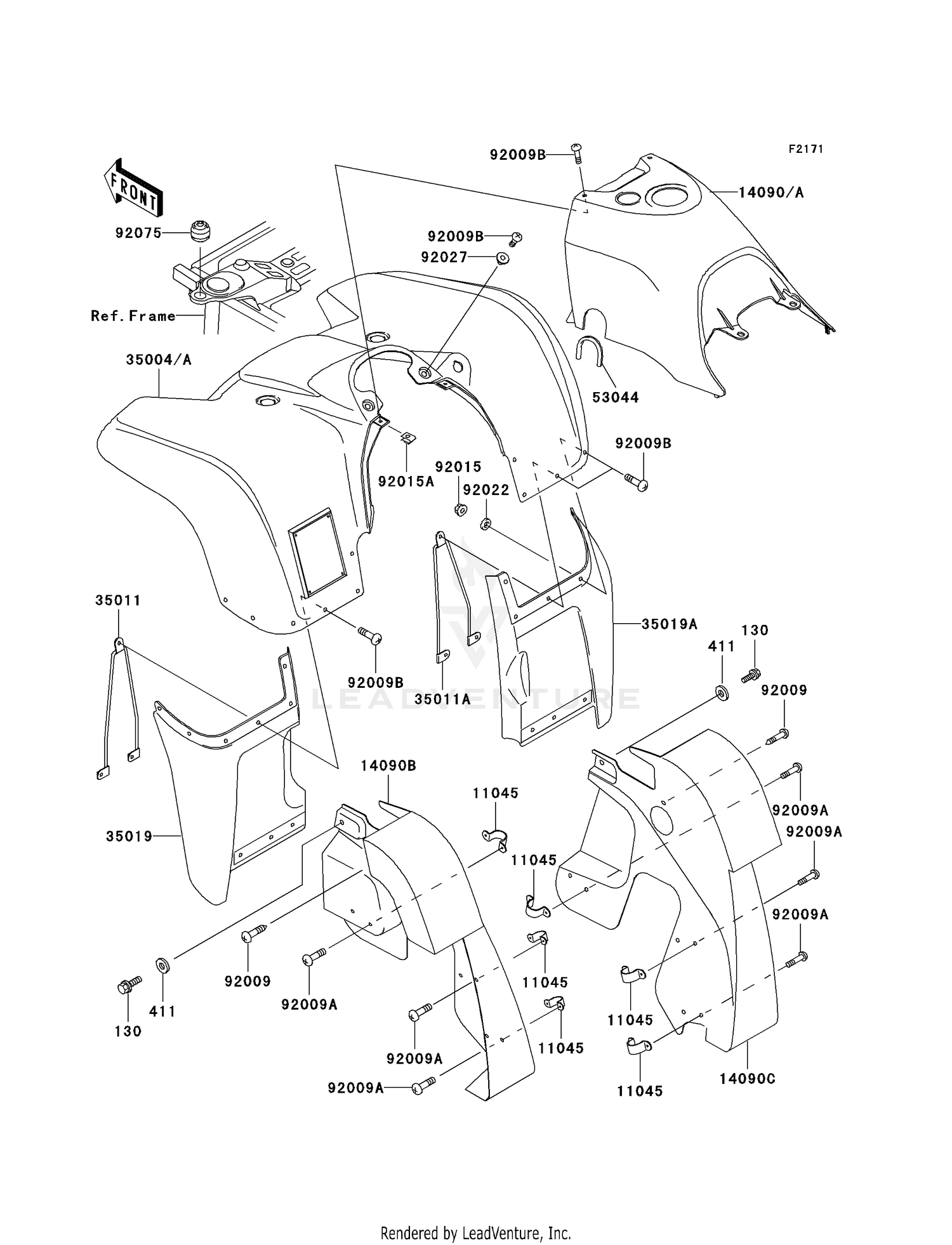

| Ref | Part Number | Description |
|---|
| 130 |
130AB0814 |
BOLT-FLANGED This part replaces 130C0814. Price: $3.72 |
| 411 |
411AB0800 |
WASHER-PLAIN,8.5X18X1.6 This part replaces 411F0800. Price: $1.78 |
| 11045 |
11045-1882 |
BRACKET,FENDER Price: $7.69 |
| 14090 |
14090-1666-6A |
COVER,FUEL TANK,H.GRE Price: $35.01 |
| 14090A |
14090-1666-6L |
COVER,FUEL TANK,F.RED Price: $35.01 |
| 14090B |
14090-1933 |
COVER,FRONT INNER FLA Price: $31.70 |
| 14090C |
14090-1934 |
COVER,FRONT INNER FLA Price: $31.70 |
| 35004 |
35004-1378-6A |
FENDER-FRONT,H.GREEN Price: $323.32 |
| 35004A |
35004-1378-6L |
FENDER-FRONT,F.RED Price: $308.69 |
| 35011 |
35011-1761 |
STAY,FRONT FLAP,LH Price: $30.25 |
| 35011A |
35011-1784 |
STAY,FRONT FLAP,RH Price: $24.62 |
| 35019 |
35019-7501-6Z |
FLAP,FR,LH,F.BLACK This part replaces 35019-1338-6Z. Price: $25.17 |
| 35019A |
35019-7502-6Z |
FLAP,FR,RH,F.BLACK This part replaces 35019-1339-6Z. Price: $25.17 |
| 53044 |
53044-1303 |
TRIM Price: $4.38 |
| 92009 |
92009-1166 |
SCREW,TAPPING,6X16 Price: $5.52 |
| 92009A |
92009-1332 |
SCREW,TAPPING,5X10 Price: $3.92 |
| 92009B |
92009-1694 |
SCREW,6X16 This part replaces 92009-1621. Price: $3.92 |
| 92015 |
92015-1675 |
NUT,LOCK,FLANGED,6MM Price: $4.31 |
| 92015A |
92015-1678 |
NUT,CLAMP,6MM Price: $5.52 |
| 92022 |
92022-1093 |
WASHER,6.5X16X1.0 Price: $2.08 |
| 92027 |
92027-1964 |
COLLAR,L=4.7 Price: $7.34 |
