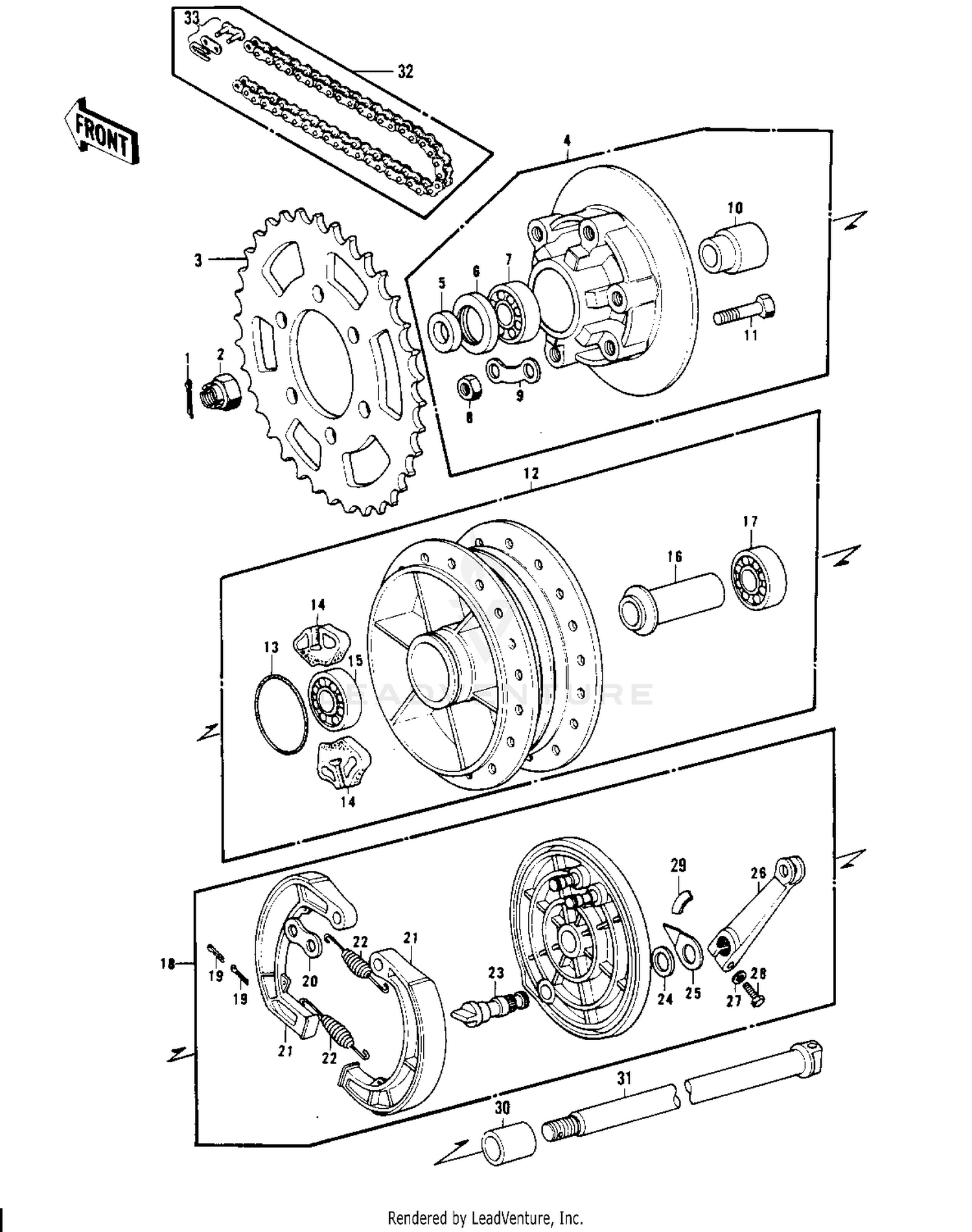

| Ref | Part Number | Description |
|---|
| 1 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 2 |
92015-1951 |
NUT,CASTLE,16MM This part replaces 92015-055. Price: $11.50 |
| 3 |
42041-063 |
REAR SPROCKET 38T Price: $77.92 |
| 4 |
42008-020 |
COUPLING ASSY,RR BRK Price: $270.88 |
| 5 |
42037-024 |
COLLAR,REAR AXLE Price: $25.51 |
| 6 |
92049-1287 |
SEAL-OIL This part replaces 92052-006. Price: $13.08 |
| 7 |
601B6205 |
BEARING BALL #6205 Price: $19.57 |
| 8 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 9 |
92088-005 |
WASHER SPROCKET LOCK Price: $6.24 |
| 10 |
42036-019 |
SLEEVE,REAR AXLE Price: $43.65 |
| 11 |
92003-087 |
BOLT-REAR SPROCKET Price: $10.11 |
| 12 |
42005-044-80 |
DRUM ASY,RR BK,BUFF Price: $536.22 |
| 13 |
671B2560 |
O RING,60MM Price: $6.91 |
| 14 |
42014-008 |
DAMPER REAR HUB SHOCK Price: $45.04 |
| 15 |
601B6303 |
BEARING-BALL,#6303C3 Price: $8.29 |
| 16 |
42010-008 |
SPACER RR HUB BEARING Price: $8.15 |
| 16 |
42010-027 |
SPACER,RR HUB BEARING Price: $18.88 |
| 17 |
601B6303Z |
BEARING BALL #6303Z Price: $24.50 |
| 18 |
42006-060-80 |
PANEL-ASY,RR BRK Price: $241.00 |
| 19 |
550AA2025 |
PIN-COTTER,2.0X25 This part replaces 550D2025. Price: $2.81 |
| 20 |
41045-007 |
WASHER,BRAKE SHOE Price: $5.21 |
| 21 |
41048-1122 |
SHOE-BRAKE This part replaces 42019-003. Price: $47.81 |
| 22 |
41049-003 |
SPRING BRAKE SHOE Price: $3.66 |
| 23 |
42026-015 |
CAM SHAFT,REAR BRAKE Price: $39.41 |
| 24 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 25 |
41085-009 |
INDICATOR,BRAKE PANEL Price: $10.92 |
| 26 |
42029-037 |
LEVER,REAR BRAKE CAM Price: $36.94 |
| 27 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 28 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 29 |
41084-001 |
LABEL Price: $1.74 |
| 30 |
42032-049 |
COLLAR,REAR AXLE Price: $11.34 |
| 31 |
42031-047 |
AXLE,REAR Price: $43.46 |
