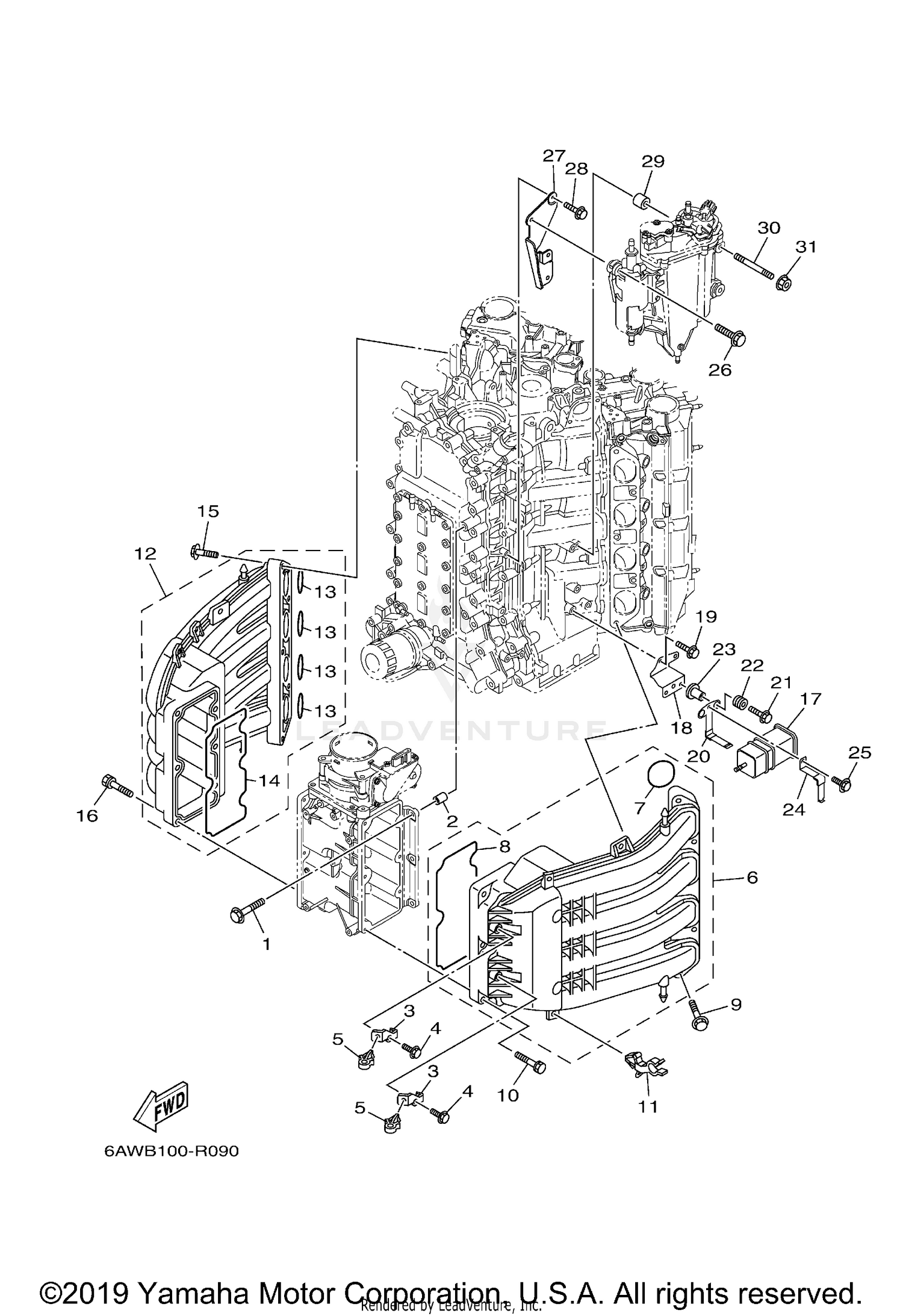

| Ref | Part Number | Description |
|---|
| 1 |
95D75-08035-00 |
BOLT, FLANGE DEEP Price: $2.00 |
| 2 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 3 |
6AW-13782-00-00 |
STAY Price: $6.95 |
| 4 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 5 |
90464-09023-00 |
CLAMP Price: $5.50 |
| 6 |
6AW-13641-10-00 |
MANIFOLD, INTAKE 1 Price: $716.00 |
| 7 |
6AW-13645-00-00 |
GASKET, MANIFOLD 1 Price: $24.90 |
| 8 |
6AW-13646-00-00 |
GASKET, MANIFOLD 2 Price: $88.00 |
| 9 |
90119-08022-00 |
BOLT, WITH WASHER Price: $4.60 |
| 10 |
90119-06MA6-00 |
BOLT, WITH WASHER Price: $4.60 |
| 11 |
90464-17006-00 |
CLAMP Price: $6.70 |
| 12 |
6AW-13641-10-00 |
MANIFOLD, INTAKE 1 Price: $716.00 |
| 13 |
6AW-13645-00-00 |
GASKET, MANIFOLD 1 Price: $24.90 |
| 14 |
6AW-13646-00-00 |
GASKET, MANIFOLD 2 Price: $88.00 |
| 15 |
90119-08022-00 |
BOLT, WITH WASHER Price: $4.60 |
| 16 |
90119-06MA6-00 |
BOLT, WITH WASHER Price: $4.60 |
| 17 |
6P2-24170-00-00 |
CANISTER ASSY Price: $103.30 |
| 18 |
6AW-2134X-10-00 |
BRACKET, CANISTER Price: $24.50 |
| 19 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 20 |
69J-2134X-00-00 |
BRACKET, CANISTER Price: $28.90 |
| 21 |
90119-06288-00 |
BOLT, WITH WASHER This part replaces 90119-06M17-00. Price: $4.40 |
| 22 |
90480-10M23-00 |
GROMMET Price: $9.65 |
| 23 |
90387-06289-00 |
COLLAR Price: $3.18 |
| 24 |
69J-2419A-01-00 |
HOLDER Price: $20.99 |
| 25 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 26 |
90119-06299-00 |
BOLT, WITH WASHER This part replaces 90119-06269-00. Price: $2.40 |
| 27 |
6AW-24419-00-00 |
BRKT., SEPARATOR Price: $37.70 |
| 28 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 29 |
90387-06276-00 |
COLLAR Price: $8.60 |
| 30 |
90116-06046-00 |
BOLT, STUD Price: $9.35 |
