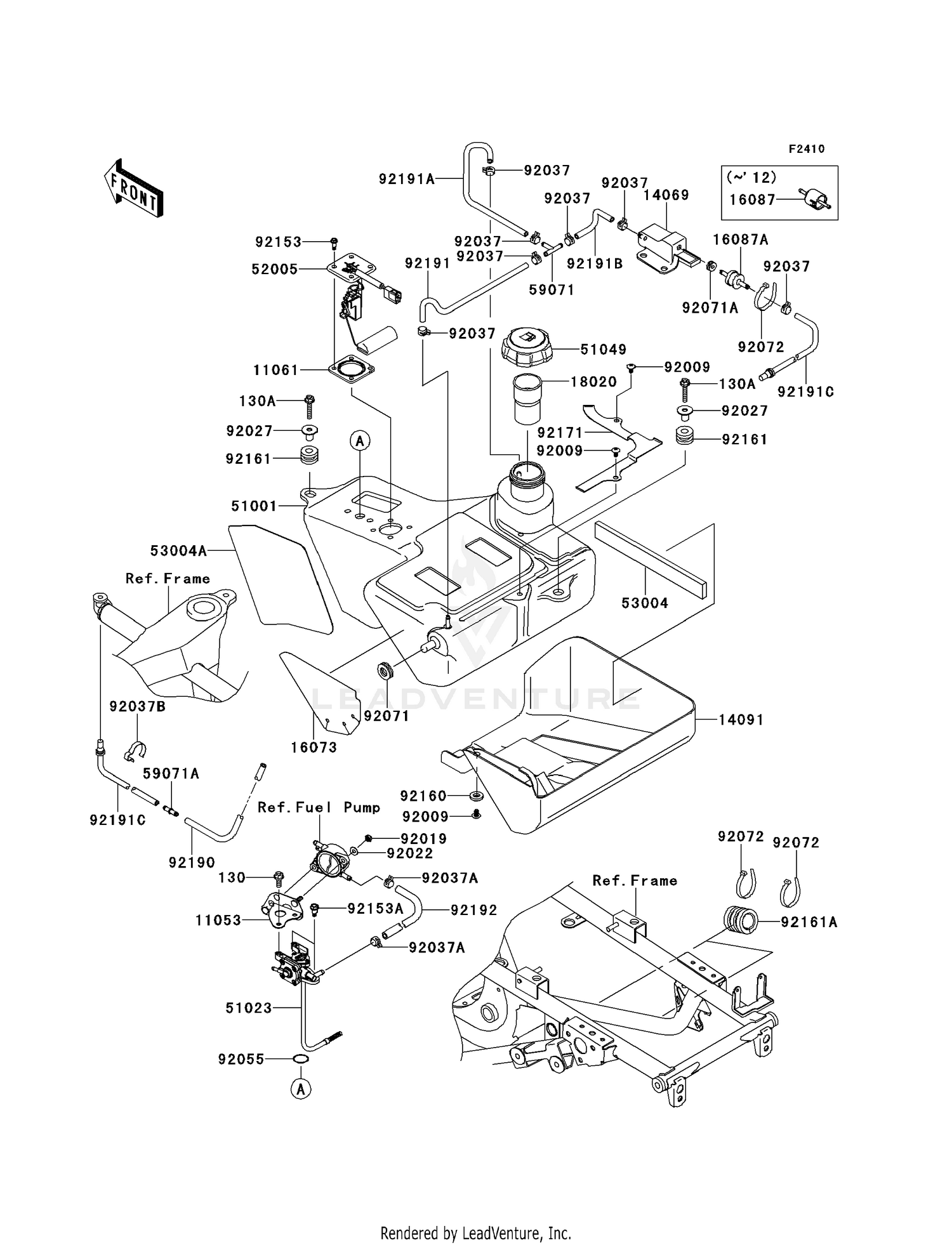

| Ref | Part Number | Description |
|---|
| 130 |
130BA0616 |
BOLT-FLANGED,6X16 Price: $1.20 |
| 11053 |
11053-1639 |
BRACKET,FUEL PUMP Price: $12.50 |
| 11061 |
11061-0071 |
GASKET,FUEL GAUGE Price: $23.75 |
| 14069 |
14069-1069 |
BREATHER,TANK Price: $19.72 |
| 14091 |
14091-0405 |
COVER,FUEL TANK Price: $53.79 |
| 16073 |
16073-0022 |
INSULATOR,FUEL TANK C Price: $8.26 |
| 16087 |
16087-0003 |
VALVE-CHECK Price: $51.80 |
| 18020 |
18020-1278 |
BAFFLE,FUEL TANK CAP Price: $11.05 |
| 51001 |
51001-0197 |
TANK-COMP-FUEL Price: $225.63 |
| 51023 |
51023-0013 |
TAP-ASSY,FUEL Price: $139.71 |
| 51049 |
51049-0718 |
CAP-TANK,FUEL This part replaces 51049-0001. Price: $64.67 |
| 52005 |
52005-0016 |
GAUGE,FUEL Price: $210.11 |
| 53004 |
53004-1161 |
MAT Price: $7.91 |
| 53004A |
53004-1165 |
MAT,FUEL TANK Price: $15.28 |
| 59071 |
59071-3705 |
JOINT Price: $4.91 |
| 59071A |
59071-3717 |
JOINT Price: $3.55 |
| 92009 |
92009-1480 |
SCREW,6X12 Price: $3.21 |
| 92019 |
92019-008 |
NUT,LOCK,6MM Price: $4.26 |
| 92022 |
92022-2373 |
WASHER,6.2X15X1.2 Price: $0.43 |
| 92027 |
92027-1847 |
COLLAR,L=16.1 Price: $6.22 |
| 92037 |
92037-1461 |
CLAMP,TUBE Price: $3.88 |
| 92037A |
92037-1505 |
CLAMP,TUBE Price: $4.76 |
| 92037B |
92037-1552 |
CLAMP,HOSE Price: $9.97 |
| 92055 |
92055-0081 |
RING-O,FUEL TAP Price: $8.12 |
| 92071 |
92071-1249 |
GROMMET,AIR SUCTION VALVE Price: $4.11 |
| 92071A |
92071-1266 |
GROMMET Price: $5.18 |
| 92072 |
92072-1239 |
BAND,L=188 Price: $1.73 |
| 92153 |
92153-0361 |
BOLT,FLANGED,5MM Price: $4.18 |
| 92153A |
92153-0824 |
BOLT,6MM Price: $4.80 |
| 92160 |
92160-1017 |
DAMPER Price: $5.78 |
| 92161 |
92161-0106 |
DAMPER Price: $1.73 |
| 92161A |
92161-1111 |
DAMPER,FUEL TANK,RR Price: $6.37 |
| 92171 |
92171-0495 |
CLAMP,TUBE Price: $30.10 |
| 92190 |
92190-1256 |
TUBE Price: $7.61 |
| 92191 |
92191-1639 |
TUBE,TANK-FRONT Price: $11.32 |
| 92191A |
92191-1640 |
TUBE,TANK-REAR Price: $12.25 |
| 92191B |
92191-1641 |
TUBE,5X9X160 Price: $4.34 |
| 92191C |
92191-1666 |
TUBE,TANK BREATHER Price: $11.32 |
| 92192 |
92192-0491 |
TUBE,5.8X10.8X140 Price: $24.76 |
