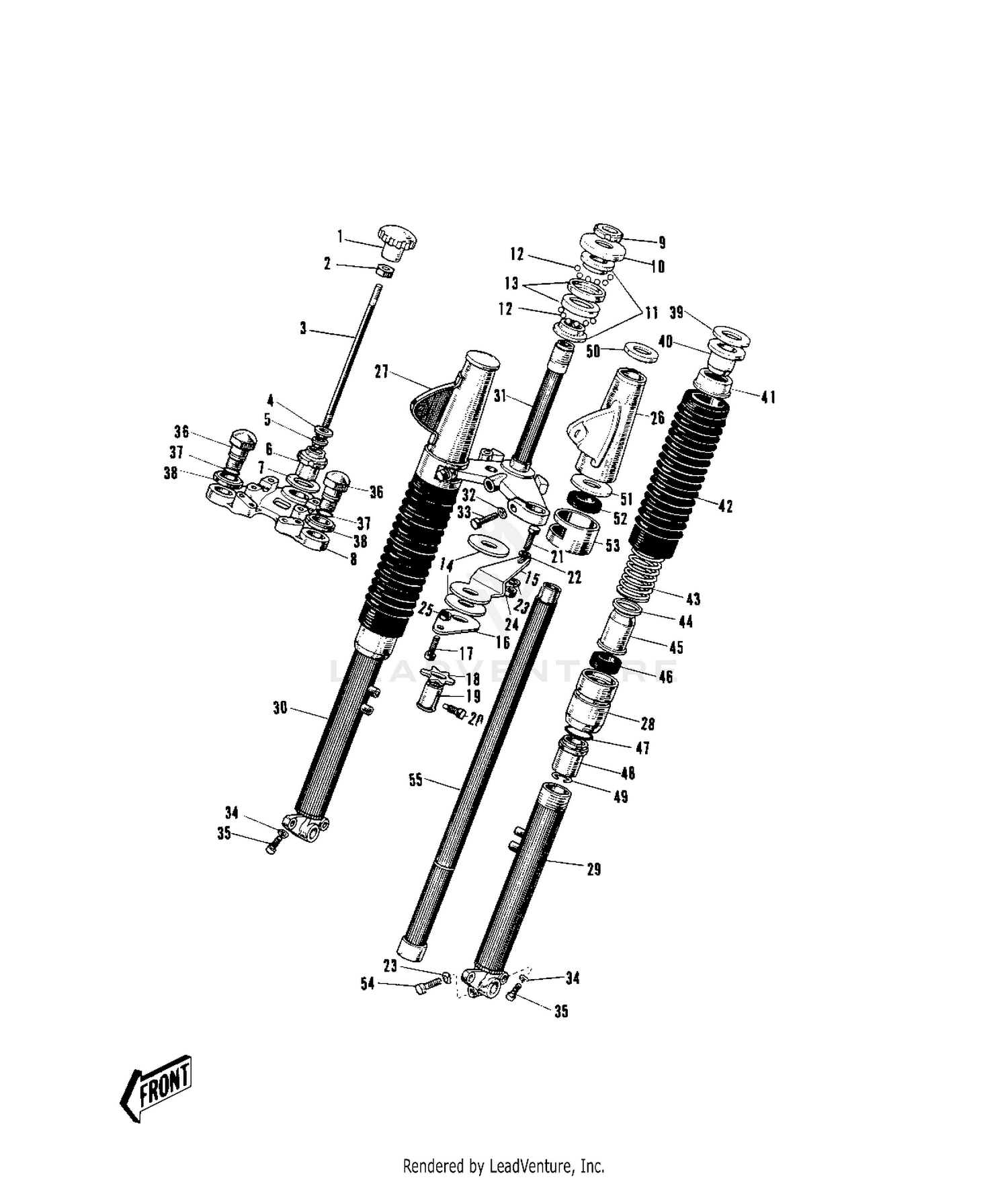

FRONT FORK (W2TT) (-F/NO.6868)

FRONT FORK (W2TT) (-F/NO.6868)

Parts (52)

RefPart NumberDescription
1 46101-001 KNOB STEERING DAMPER Price: $7.52
2 92016-001 NUT STEERING DAMP LCK Price: $1.52
3 46102-002 ROD STEERING DAMPER Price: $5.54
4 46108-001 WASHER STRNG DAMP NUT Price: $2.30
5 46103-001 BUSH STRNG DAMPER ROD Price: $3.21
6 92090-011 NUT STEERING STEM Price: $13.60
7 92097-002 WASHER STEERING STEM Price: $7.31
8 44039-029 HEAD-STEERING STEM Price: $188.65
9 92090-010 NUT STEERING STEM LCK Price: $7.06
10 46098-007 CAP STEERING STEM Price: $1.69
11 92047-007 CONE STRNG STEM BERNG Price: $7.33
12 600A0800 BALL-STEEL,1/4 Price: $0.62
13 92048-007 RACE STRNG STEM BERNG Price: $7.32
14 46104-002 DISC STRNG DAMP FRCTN Price: $6.51
15 46105-002 STOPPER STEERING DAMP Price: $11.81
16 46106-002 DISC STRNG DAMP STEEL Price: $8.06
17 112BA0625 BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72
18 46124-006 SPRING-STEERING DAMP Price: $10.17
19 46125-002 SLEEVE STRNG DAMPER Price: $20.59
20 92001-042 BOLT STEERING DAM SLV Price: $1.53
21 115BA0818 BOLT-SMALL-UPSET,8X18 This part replaces 115G0818. Price: $5.61
22 410AA0800 WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96
23 461DA0800 WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40
24 317AA0800 NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68
25 317AA0800 NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68
26 44033-025 UNAVAILABLE IN PRICE BOOK Price: $31.89
27 44034-024 COVER R.H FORK Price: $40.37
28 44007-014 NUT FORK OUTER TUBE Price: $37.65
29 44005-019 TUBE,LH,FORK OUTER Price: $100.79
30 44006-017 TUBE,RH,FORK OUTER Price: $135.44
31 44037-018-10 STEM-STEERING,BLACK Price: $145.92
32 461DA1000 WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68
33 113G1028 BOLT,10X28 Price: $9.34
34 44045-002 GASKET,FORK DRAIN PLUG Price: $5.18
35 220AA0408 SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68
36 44041-025 BOLT FORK FIT Price: $18.69
38 44043-028 WASHER FORK FIT BOLT Price: $7.52
39 44032-002 WASHER FORK COVER Price: $1.17
40 44028-014 GUIDE SPRING Price: $8.46
41 44035-002 HOLDER FORK BOOT UPP Price: $7.78
42 44027-009 DUST SHIELD FORK SPRG Price: $82.71
43 44026-017 SPRING FORK Price: $25.57
44 44029-008 WASHER FORK SPRG GUID Price: $5.59
45 44010-013 DUST SHIELD FORK Price: $9.43
46 44009-026 OIL SEAL This part replaces 44009-020. Price: $60.50
48 44015-010 GUIDE FORK INNER TUBE Price: $4.48
49 44044-007 CIRCLIP INN TUBE GUID Price: $2.42
50 44032-004 CAP FORK COVER Price: $3.76
51 44032-003 WASHER FORK COVER Price: $7.99
52 44045-026 GASKET FORK COVER Price: $1.75
53 44030-007 GUIDE FORK COVER Price: $2.61
54 44041-017 BOLT FRNT AXLE PINCH Price: $3.71
