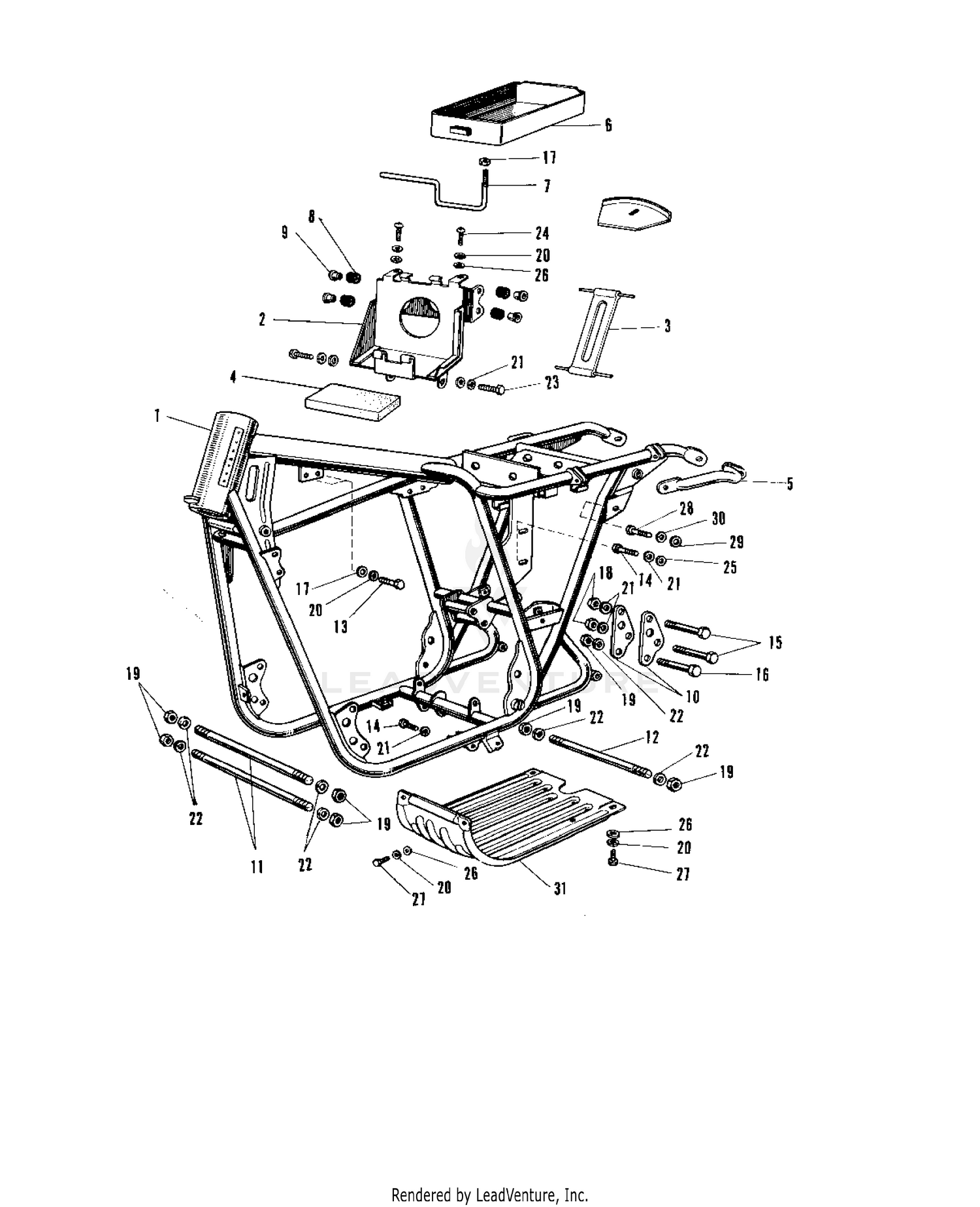

| Ref | Part Number | Description |
|---|
| 1 |
32002-020 |
FRAME Price: $330.35 |
| 2 |
32097-007 |
CASE BATTERY Price: $29.88 |
| 3 |
92072-015 |
BAND BATTERY Price: $4.30 |
| 4 |
32103-006 |
MAT BATTERY Price: $5.56 |
| 5 |
32109-004 |
GRIP FRAME Price: $25.21 |
| 6 |
32098-010 |
BOX TOOL Price: $12.93 |
| 7 |
32110-001 |
STAY TOOL BOX Price: $3.96 |
| 8 |
92071-037 |
GROMMET IGN UNIT FIT Price: $1.20 |
| 9 |
92026-056 |
WASHER IGN UNIT FIT Price: $1.69 |
| 10 |
32030-006 |
PLATE ENG REAR HOLDER Price: $5.17 |
| 11 |
92003-181 |
BOLT,10X225 Price: $12.57 |
| 12 |
92091-003 |
BOLT ENG LOWER MOUNT Price: $3.73 |
| 13 |
110R0635 |
BOLT 6X35 Price: $5.96 |
| 14 |
115BA0818 |
BOLT-SMALL-UPSET,8X18 This part replaces 115G0818. Price: $5.61 |
| 15 |
92001-1583 |
BOLT FLANGED,8X70 Price: $9.57 |
| 16 |
92001-1618 |
BOLT,FLANGED,10X70 Price: $10.37 |
| 17 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 18 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 19 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 20 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 21 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 22 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 23 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 24 |
220AA0612 |
SCREW-PAN-CROS,6X12 This part replaces 220B0612. Price: $1.19 |
| 25 |
411AA0800 |
WASHER-PLAIN,8MM This part replaces 411B0800. Price: $0.96 |
| 26 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 27 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 28 |
112C1-025 |
BOLT-UPSET This part replaces 113G1025. Price: $3.21 |
| 29 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
| 30 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
