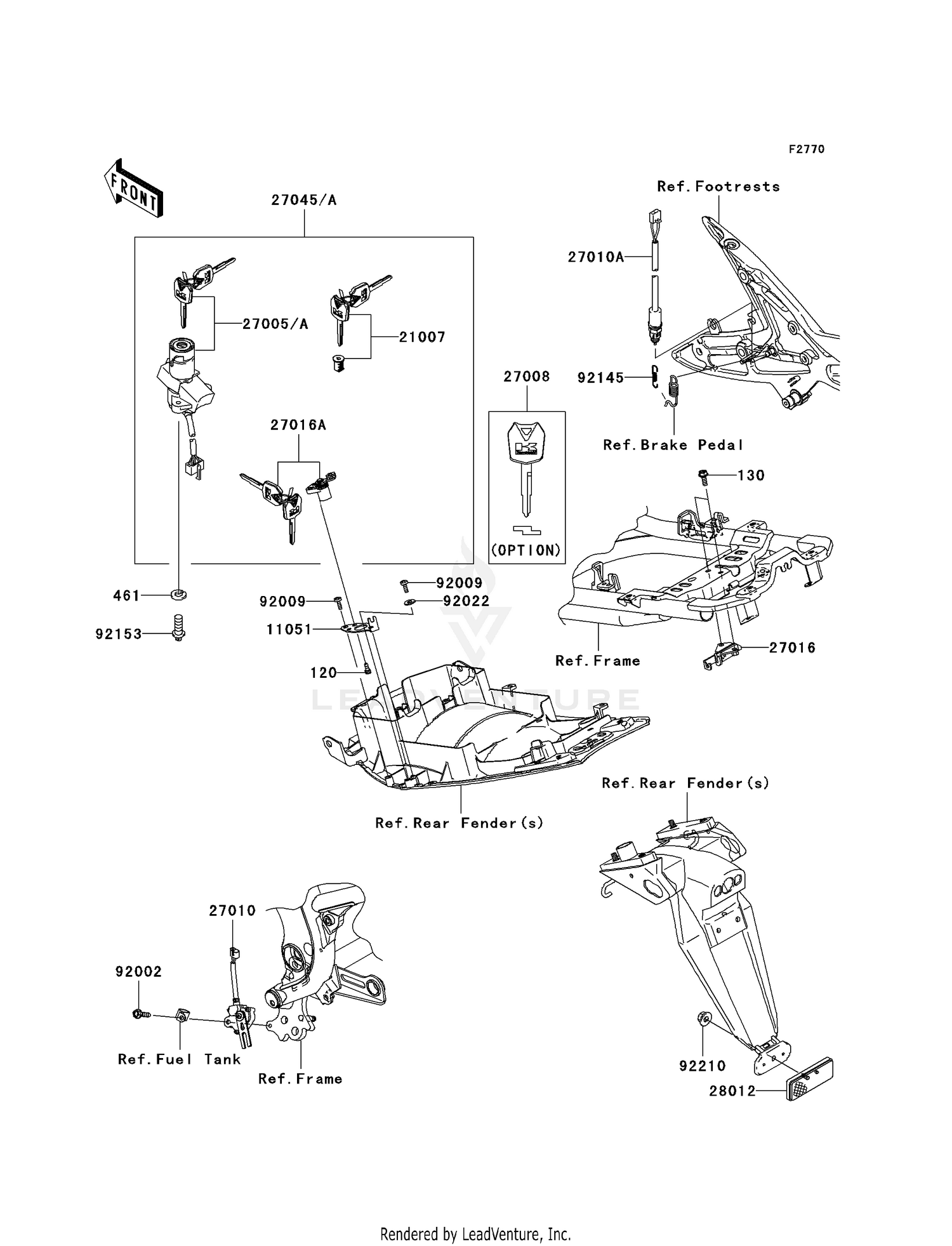

| Ref | Part Number | Description |
|---|
| 120 |
120CB0512 |
BOLT-SOCKET,5X12 Price: $1.76 |
| 130 |
130BB0612 |
BOLT-FLANGED,6X12 Price: $2.34 |
| 461 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461L0600. Price: $0.71 |
| 11051 |
11051-1370 |
BRACKET,SEAT LOCK Price: $9.21 |
| 21007 |
21007-5057 |
ROTOR,LOCK,TANK CAP Price: $84.71 |
| 27005A |
27005-5139 |
SWITCH-ASSY-IGNITION Price: $186.48 |
| 27010 |
27010-1455 |
SWITCH,SIDE STAND Price: $117.84 |
| 27010A |
27010-1479 |
SWITCH,REAR BRAKE Price: $30.06 |
| 27016 |
27016-1115 |
LOCK-ASSY,SEAT STRIKER Price: $28.59 |
| 27016A |
27016-5309 |
LOCK-ASSY,SEAT Price: $86.99 |
| 27045A |
27045-5356 |
SWITCH-ASSY Price: $445.48 |
| 28012 |
28012-1077 |
REFLECTOR-REFLEX Price: $23.25 |
| 92002 |
92002-1582 |
BOLT,FLANGED,6X25 Price: $4.69 |
| 92009 |
92009-3845 |
SCREW,6X14 Price: $1.06 |
| 92022 |
92022-1342 |
WASHER,6.5X16X2 Price: $3.92 |
| 92145 |
92145-0724 |
SPRING,REAR BRAKE SWITCH This part replaces 92145-0091. Price: $3.35 |
| 92153 |
92153-0967 |
BOLT,TORX,6X16 Price: $2.61 |
