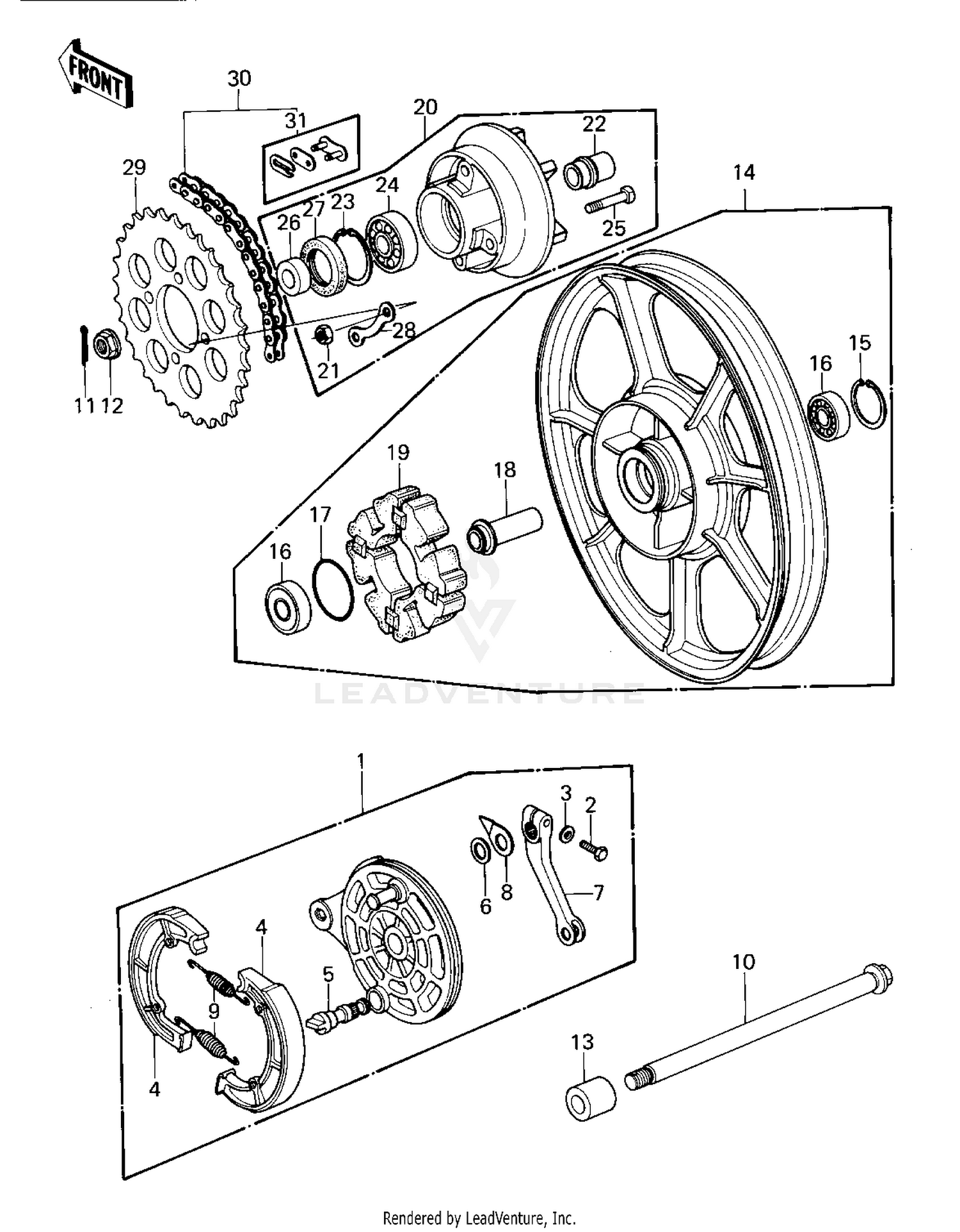

| Ref | Part Number | Description |
|---|
| 1 |
41035-1088 |
PANEL-ASY,RR BRK Price: $265.29 |
| 2 |
114G0828 |
BOLT HEX HEAD 8X28 Price: $5.21 |
| 3 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 4 |
41048-1069 |
SHOE-BRAKE Price: $27.31 |
| 5 |
41050-1001 |
CAM,BRAKE Price: $35.31 |
| 6 |
41051-003 |
DUST SHIELD-BRAKE CAM Price: $4.26 |
| 7 |
41053-1001 |
LEVER,BRAKE CAM Price: $35.97 |
| 8 |
41085-004 |
INDICATOR,BRAKE SHOE Price: $14.51 |
| 9 |
42020-004 |
SPRING-BRAKE SHOE Price: $8.51 |
| 10 |
41068-1024 |
AXLE,REAR Price: $56.93 |
| 11 |
550AA4025 |
PIN-COTTER,4.0X25 This part replaces 550D4025. Price: $0.48 |
| 12 |
92015-1946 |
NUT,FLANGED,16MM This part replaces 92015-1041. Price: $12.74 |
| 13 |
92027-1198 |
COLLAR,REAR AXLE,R.H. Price: $13.25 |
| 14 |
41073-1055 |
SOLID WHEEL ASSY,REAR Price: $315.93 |
| 15 |
92033-1042 |
RING-SNAP,47MM Price: $4.22 |
| 16 |
601B6303Z |
BEARING BALL #6303Z Price: $24.50 |
| 17 |
671B2560 |
O RING,60MM Price: $6.91 |
| 18 |
92027-1196 |
COLLAR,REAR HUB BRG Price: $27.82 |
| 19 |
92075-1008 |
DAMPER,REAR HUB SHOCK Price: $71.48 |
| 20 |
42033-1011 |
COUPLING ASSY,RR HUB Price: $153.87 |
| 21 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 22 |
42036-1002 |
SLEEVE,COUPLING Price: $37.52 |
| 23 |
92033-1043 |
RING-SNAP,52MM Price: $8.05 |
| 24 |
601B6205 |
BEARING BALL #6205 Price: $19.57 |
| 25 |
92003-156 |
BOLT, RR SPROCKET FIT Price: $10.98 |
| 26 |
92027-1197 |
COLLAR REAR AXLE,L.H. Price: $33.69 |
| 27 |
92049-1287 |
SEAL-OIL This part replaces 92052-006. Price: $13.08 |
| 28 |
92088-005 |
WASHER SPROCKET LOCK Price: $6.24 |
| 29 |
42041-145 |
REAR SPROCKET,45T Price: $171.45 |
| 30 |
92057-1035 |
DR CHAIN 530X104L Price: $211.11 |
