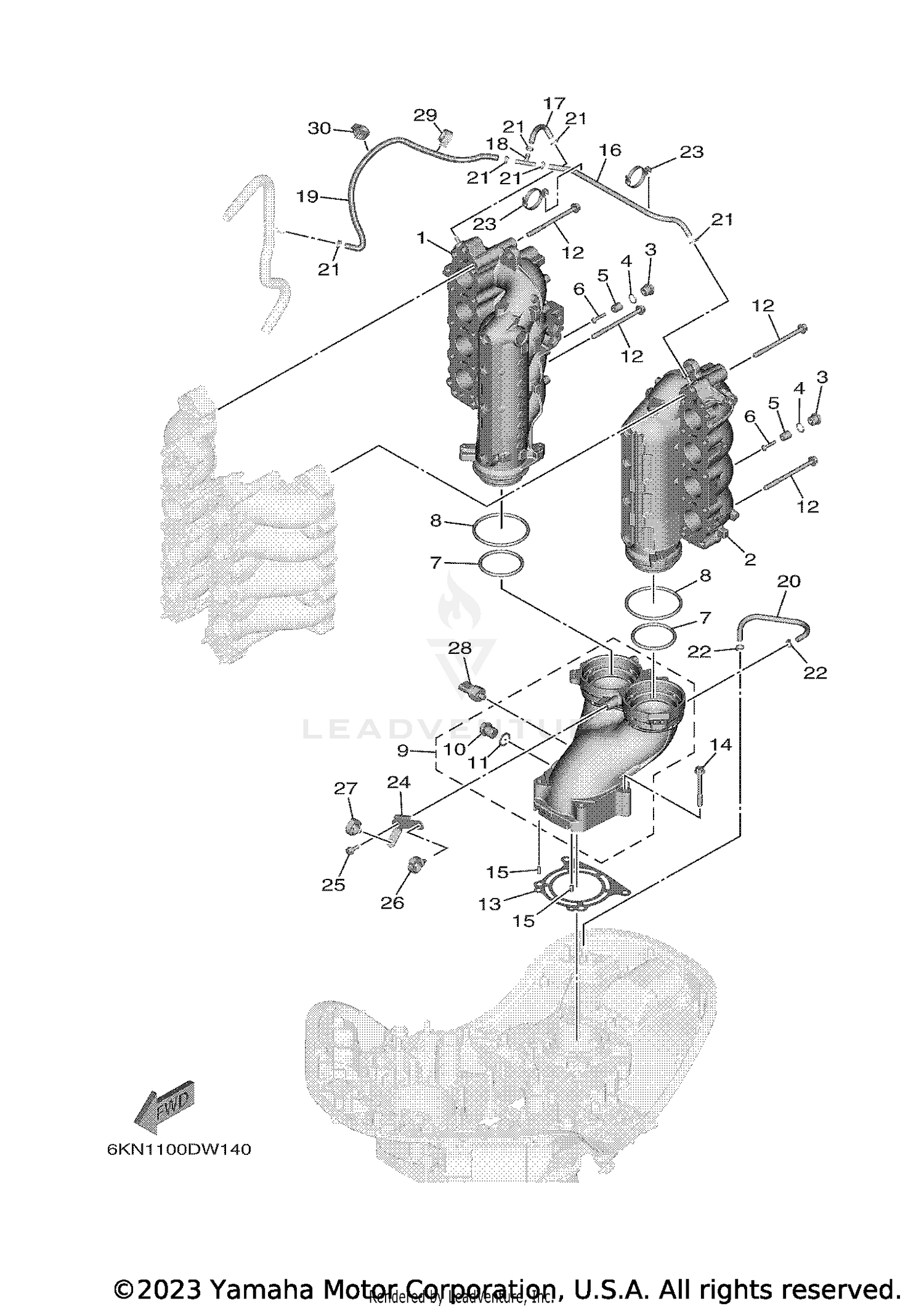

| Ref | Part Number | Description |
|---|
| 1 |
6KN-14635-00-9S |
JOINT, EXHAUST 3 Price: $3,111.55 |
| 2 |
6KN-14645-00-9S |
JOINT, EXHAUST 4 Price: $3,709.80 |
| 3 |
6G8-11197-B0-00 |
PLUG, BLIND This part replaces 6G8-11197-A0-00. Price: $15.99 |
| 4 |
93210-13M63-00 |
O-RING Price: $4.75 |
| 5 |
6G8-11325-00-00 |
ANODE Price: $3.60 |
| 6 |
98980-05025-00 |
SCREW, BIND Price: $1.40 |
| 7 |
93210-65001-00 |
O-RING Price: $28.99 |
| 8 |
93210-85003-00 |
O-RING Price: $32.99 |
| 9 |
6KN-14656-00-9S |
JOINT, EXHAUST 5 Price: $857.10 |
| 10 |
90340-18M09-00 |
PLUG, STRAIGHT SCREW Price: $28.10 |
| 11 |
90201-186F1-00 |
WASHER, PLATE Price: $10.49 |
| 12 |
90105-08277-00 |
BOLT, FLANGE Price: $13.49 |
| 13 |
6GR-41134-00-00 |
GASKET, EXHAUST MANI Price: $24.45 |
| 14 |
90105-08220-00 |
BOLT, FLANGE Price: $7.05 |
| 15 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 16 |
5RB-24315-00-00 |
PIPE 5 This part replaces 90445-09104-00. Price: $8.49 |
| 17 |
5RB-24315-00-00 |
PIPE 5 This part replaces 90445-09063-00. Price: $8.49 |
| 18 |
688-24378-00-00 |
PIPE, JOINT 3 Price: $16.50 |
| 19 |
6KN-12481-00-00 |
PIPE 1 Price: $24.30 |
| 20 |
90445-09095-00 |
HOSE (L215) Price: $5.55 |
| 21 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 22 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 23 |
90464-09028-00 |
CLAMP Price: $3.20 |
| 24 |
6KN-82588-00-00 |
PLATE Price: $3.90 |
| 25 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 26 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 27 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 28 |
6AW-8366B-10-00 |
SENSOR, WATER PRES Price: $226.00 |
| 29 |
90464-18004-00 |
CLAMP Price: $4.40 |
