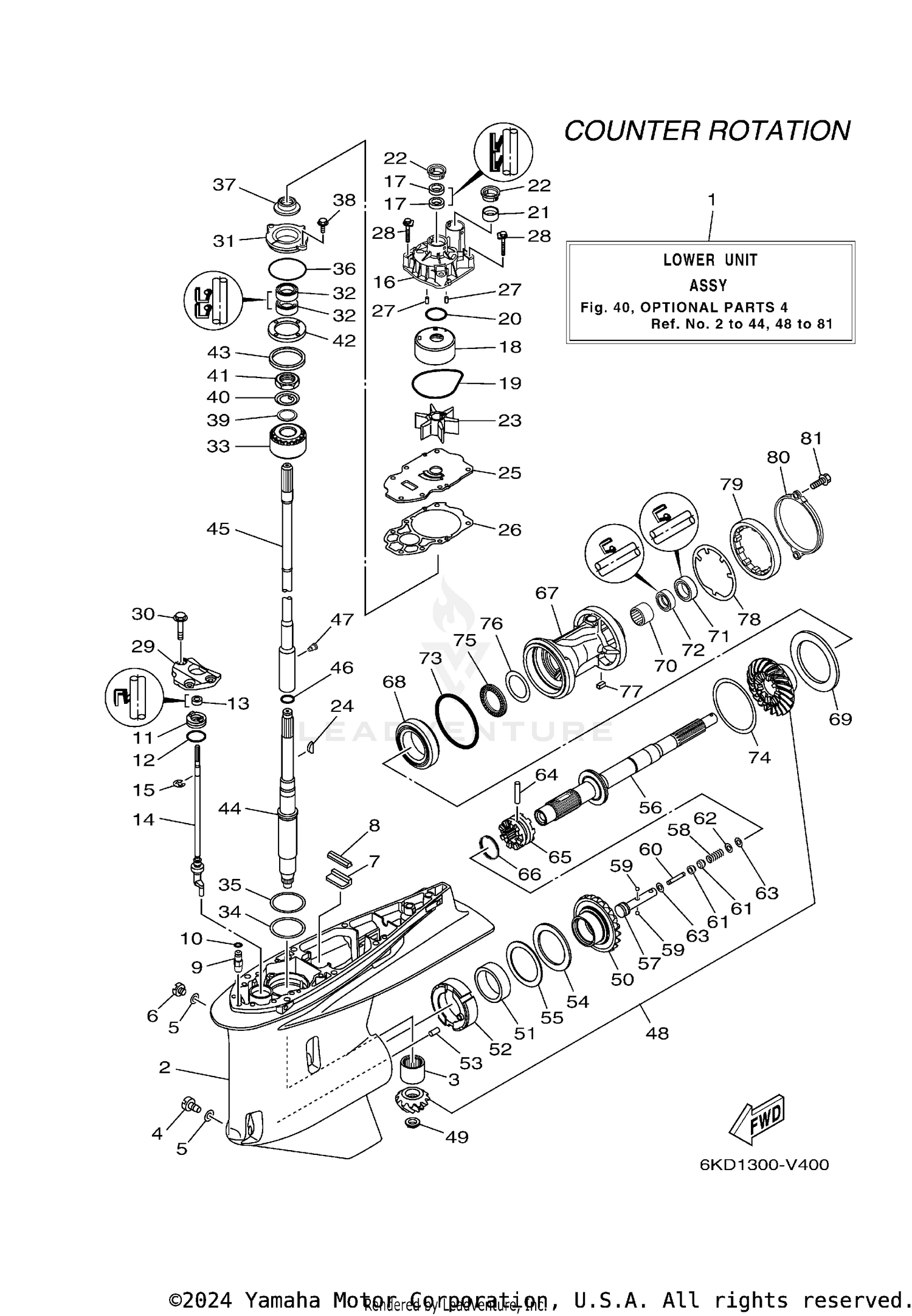

| Ref | Part Number | Description |
|---|
| 3 |
93311-83280-00 |
BEARING Price: $180.99 |
| 4 |
688-45341-10-00 |
PLUG, DRAIN Price: $12.70 |
| 5 |
90430-08003-00 |
GASKET Price: $1.55 |
| 6 |
90340-08002-00 |
PLUG, STRAIGHT SCREW Price: $12.75 |
| 7 |
663-45376-00-00 |
GUIDE, SEAL DAMPER Price: $14.90 |
| 8 |
6CE-45375-00-00 |
DAMPER, SEAL Price: $7.70 |
| 9 |
63P-45378-00-00 |
NIPPLE, HOSE Price: $6.75 |
| 10 |
93210-07540-00 |
O-RING This part replaces 93210-07003-00. Price: $7.49 |
| 11 |
6CE-45321-20-00 |
PLATE Price: $28.50 |
| 12 |
93210-33M85-00 |
O-RING This part replaces 93210-33M49-00. Price: $5.55 |
| 13 |
93106-10001-00 |
OIL SEAL Price: $7.20 |
| 14 |
6KB-44150-00-00 |
SHIFT CAM ASSY Price: $169.65 |
| 15 |
99080-09600-00 |
CIRCLIP This part replaces 99001-09600-00. Price: $3.20 |
| 16 |
6CE-44311-01-00 |
HOUSING, WATER PUMP Price: $22.95 |
| 17 |
93104-22M07-00 |
OIL SEAL Price: $7.30 |
| 18 |
6AW-44322-00-00 |
INSERT, CARTRIDGE Price: $90.70 |
| 19 |
93210-94003-00 |
O-RING Price: $8.60 |
| 20 |
93210-37M67-00 |
O-RING This part replaces 93210-37160-00. Price: $3.80 |
| 21 |
6AW-44365-01-00 |
DAMPER, WATER SEAL Price: $3.45 |
| 22 |
6AW-44312-00-00 |
COVER, WATER PUMP HOUSING Price: $4.20 |
| 23 |
6CE-44352-00-00 |
IMPELLER Price: $68.45 |
| 24 |
90280-04002-00 |
KEY, WOODRUFF Price: $14.65 |
| 25 |
6CE-44323-01-00 |
OUTER PLATE, CARTRIDGE Price: $21.05 |
| 26 |
6CE-44315-00-00 |
GASKET, WATER PUMP Price: $13.00 |
| 27 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 28 |
90119-08191-00 |
BOLT, WITH WASHER Price: $4.80 |
| 29 |
6CB-44312-00-00 |
COVER, WATER PUMP HOUSING Price: $12.75 |
| 30 |
90119-08180-00 |
BOLT, WITH WASHER Price: $3.80 |
| 31 |
6AW-45335-00-CA |
HOUSING, OIL SEAL Price: $77.10 |
| 32 |
93101-28019-00 |
OIL SEAL Price: $20.70 |
| 33 |
93399-99962-00 |
BEARING Price: $257.05 |
| 34 |
90201-68008-00 |
WASHER, PLATE Price: $4.50 |
| 36 |
93210-69MG6-00 |
O-RING Price: $7.70 |
| 37 |
6KA-45344-00-00 |
COVER, OIL SEAL Price: $17.75 |
| 38 |
97E95-08520-00 |
BOLT, HEXAGON W/W Price: $1.50 |
| 39 |
90201-301U7-00 |
WASHER, PLATE Price: $14.49 |
| 40 |
90214-30003-00 |
WASHER, CLAW Price: $6.25 |
| 41 |
90170-30M18-00 |
NUT Price: $16.25 |
| 42 |
6AW-45244-00-00 |
NUT Price: $49.20 |
| 43 |
6T5-45539-00-00 |
SPACER 2 Price: $23.55 |
| 44 |
6KA-45501-00-00 |
DRIVE SHAFT COMP. Price: $1,616.50 |
| 46 |
93210-22MF1-00 |
O-RING Price: $8.49 |
| 47 |
90149-05048-00 |
SCREW Price: $5.20 |
| 48 |
6KB-45550-00-00 |
GEAR SET Price: $666.00 |
| 49 |
90179-16017-00 |
NUT Price: $13.10 |
| 50 |
6KB-45560-00-00 |
GEAR 1 (21T) Price: $340.30 |
| 51 |
93311-85894-00 |
BEARING Price: $88.00 |
| 52 |
6CB-45824-00-00 |
ADAPTER Price: $67.70 |
| 53 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 54 |
93340-67011-00 |
BEARING Price: $92.85 |
| 56 |
6KB-45611-00-00 |
SHAFT, PROPELLER Price: $527.05 |
| 57 |
6CB-45634-00-00 |
SLIDE, SHIFT Price: $110.25 |
| 58 |
90501-10M77-00 |
SPRING, COMPRESSION Price: $7.90 |
| 59 |
93501-04011-00 |
BALL Price: $9.49 |
| 60 |
6H1-45668-00-00 |
SHAFT, FREE 1 Price: $14.90 |
| 61 |
61A-45635-00-00 |
PLUNGER, SHIFT Price: $14.90 |
| 62 |
90201-02M00-00 |
WASHER, PLATE Price: $6.30 |
| 63 |
90183-02M03-00 |
NUT, SPRING Price: $0.50 |
| 64 |
90250-08M07-00 |
PIN, STRAIGHT Price: $9.10 |
| 65 |
6ML-45631-00-00 |
CLUTCH, DOG Price: $712.45 |
| 66 |
6E5-45633-01-00 |
RING, CROSS PIN Price: $16.60 |
| 67 |
6CF-45332-01-CA |
HOUSING, BEARING Price: $187.25 |
| 68 |
93332-00048-00 |
BEARING Price: $133.99 |
| 69 |
6CF-45576-00-00 |
WASHER, THRUST 2 Price: $110.25 |
| 70 |
93315-43061-00 |
BEARING Price: $41.99 |
| 71 |
93101-30030-00 |
OIL SEAL Price: $11.55 |
| 72 |
93101-30019-00 |
OIL SEAL Price: $18.75 |
| 73 |
93211-02001-00 |
O-RING Price: $15.10 |
| 75 |
93341-440U5-00 |
BEARING Price: $47.99 |
| 77 |
90282-05008-00 |
KEY, STRAIGHT Price: $5.55 |
| 78 |
6CB-45383-00-00 |
WASHER, CLAW Price: $24.45 |
| 79 |
6CB-45384-00-00 |
NUT Price: $84.50 |
| 80 |
6CE-45361-10-00 |
CAP, LOWER CASING Price: $153.35 |
