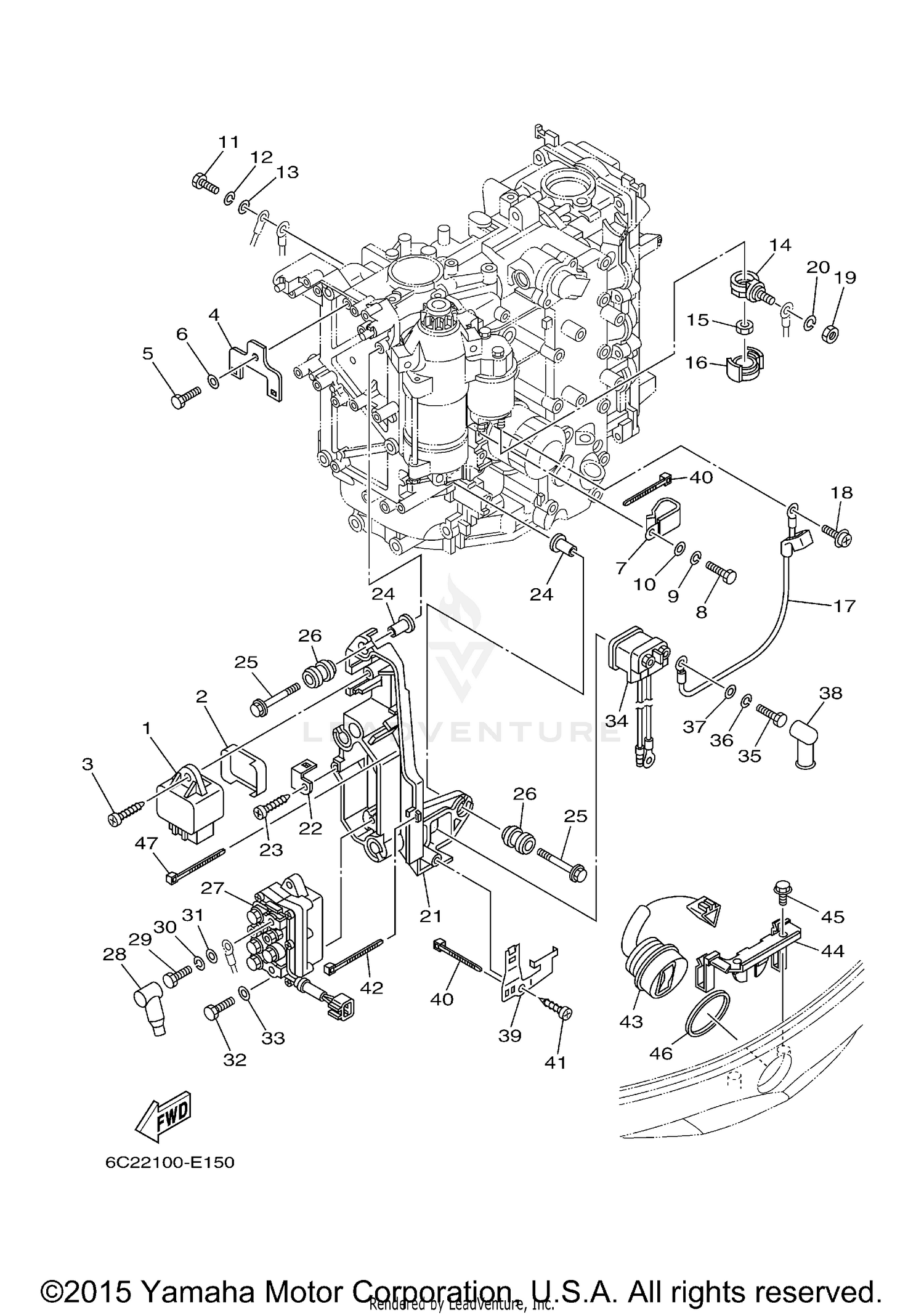

| Ref | Part Number | Description |
|---|
| 1 |
60E-81950-00-00 |
RELAY ASSY Price: $180.49 |
| 2 |
6C5-81336-01-00 |
GROMMET This part replaces 6C5-81336-00-00. Price: $2.85 |
| 3 |
97780-60520-00 |
SCREW, TAPPING This part replaces 97780-60620-00. Price: $4.49 |
| 4 |
6C5-8257V-00-00 |
PLATE, CONNECTOR Price: $4.15 |
| 5 |
97D95-06014-00 |
BOLT, HEXAGON DEEP This part replaces 97095-06014-00. Price: $1.55 |
| 6 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 7 |
90465-05M87-00 |
CLAMP Price: $6.25 |
| 8 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 9 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 10 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 11 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 12 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 13 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 14 |
60V-81925-00-00 |
TERMINAL Price: $30.70 |
| 15 |
90179-08003-00 |
NUT Price: $3.20 |
| 16 |
68F-82582-00-00 |
COVER, WIRE HARNESS Price: $3.45 |
| 17 |
6C5-81815-00-00 |
CORD, STARTER MOTOR Price: $17.70 |
| 18 |
90159-04005-00 |
SCREW, WITH WASHER Price: $3.20 |
| 19 |
95333-08600-00 |
NUT (6L2) Price: $3.80 |
| 20 |
92990-08100-00 |
WASHER, SPRING This part replaces 92903-08100-00. Price: $5.60 |
| 21 |
6C5-81948-00-00 |
BRACKET Price: $21.80 |
| 22 |
6C5-85548-01-00 |
HOLDER This part replaces 6C5-85548-00-00. Price: $2.30 |
| 23 |
97780-60520-00 |
SCREW, TAPPING This part replaces 97780-60620-00. Price: $4.49 |
| 24 |
90387-06119-00 |
COLLAR Price: $4.80 |
| 25 |
90119-06289-00 |
BOLT, WITH WASHER This part replaces 90119-06M59-00. Price: $3.65 |
| 26 |
6A0-82317-01-00 |
DAMPER, IGNITION C This part replaces 6A0-82317-00-00. Price: $7.10 |
| 27 |
63P-W8195-00-00 |
RELAY ASSY This part replaces 63P-81950-00-00. Price: $479.70 |
| 28 |
6G5-82119-10-00 |
COVER, LEAD WIRE This part replaces 682-82119-01-00. Price: $10.40 |
| 29 |
97085-06010-00 |
BOLT This part replaces 97095-06010-00. Price: $1.49 |
| 30 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 31 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 32 |
97013-06020-00 |
BOLT Price: $1.55 |
| 33 |
92990-06600-00 |
WASHER, PLATE This part replaces 92903-06600-00. Price: $2.85 |
| 34 |
68V-8194A-00-00 |
RELAY Price: $130.85 |
| 35 |
97085-06010-00 |
BOLT This part replaces 97095-06010-00. Price: $1.49 |
| 36 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 37 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 38 |
6G5-82119-10-00 |
COVER, LEAD WIRE This part replaces 6G5-82119-00-00. Price: $10.40 |
| 39 |
6C5-81953-00-00 |
STAY, RELAY Price: $5.50 |
| 40 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 41 |
97780-60520-00 |
SCREW, TAPPING This part replaces 97780-60620-00. Price: $4.49 |
| 42 |
90465-13M97-00 |
CLAMP Price: $3.45 |
| 43 |
63D-82563-11-00 |
TRIM & TILT SWITCH ASSY This part replaces 63D-82563-10-00. Price: $67.70 |
| 44 |
6C5-83614-01-00 |
BRACKET Price: $58.45 |
| 45 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 46 |
6E5-82587-01-00 |
GASKET This part replaces 6E5-82587-00-00. Price: $10.70 |
