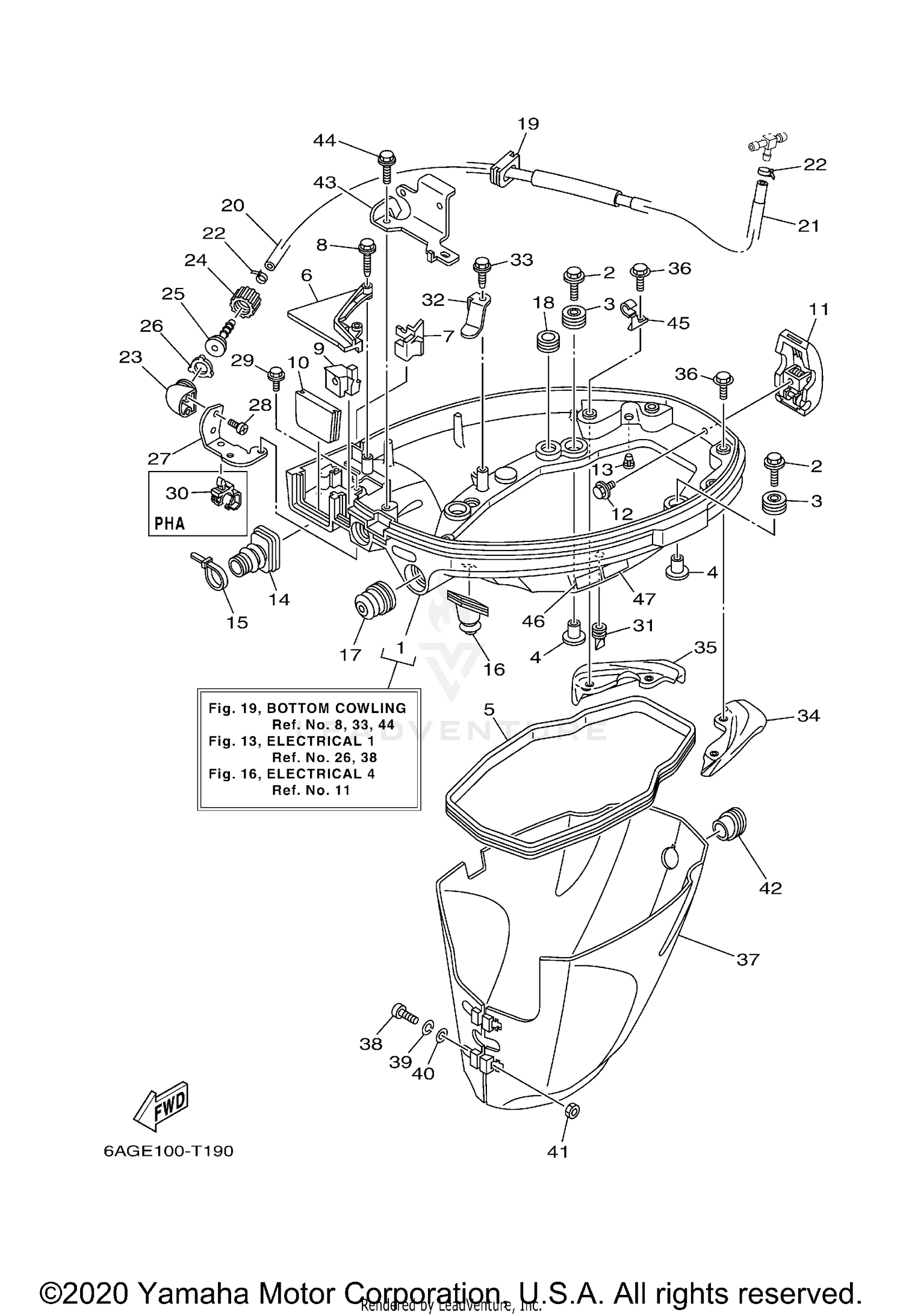

| Ref | Part Number | Description |
|---|
| 1 |
6AH-42710-10-8D |
BOTTOM COWLING ASSY Price: $452.15 |
| 1 |
6AH-42710-20-8D |
BOTTOM COWLING ASSY This part replaces 6AH-42710-00-8D. Price: $575.45 |
| 2 |
68F-85119-00-00 |
BOLT Price: $5.95 |
| 3 |
90480-21M82-00 |
GROMMET Price: $4.75 |
| 4 |
90387-06176-00 |
COLLAR Price: $5.95 |
| 5 |
6AH-42716-00-00 |
RUBBER, SEAL 1 Price: $32.10 |
| 6 |
6AH-42738-00-8D |
PLATE, FITTING Price: $101.95 |
| 7 |
6AH-42718-00-00 |
RUBBER, SEAL 3 Price: $6.70 |
| 8 |
90109-06M82-00 |
BOLT Price: $2.90 |
| 9 |
6AH-42725-01-00 |
GROMMET This part replaces 6AH-42725-00-00. Price: $5.35 |
| 9 |
6AH-42725-10-00 |
GROMMET Price: $11.05 |
| 10 |
6AH-42724-01-00 |
GROMMET This part replaces 6AH-42724-00-00. Price: $13.30 |
| 11 |
6AH-42801-00-00 |
COWLING CLAMP COMP. Price: $65.60 |
| 12 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 13 |
6BL-44391-00-00 |
NIPPLE, HOSE Price: $5.05 |
| 14 |
6AH-26326-01-00 |
GROMMET This part replaces 6AH-26326-00-00. Price: $4.60 |
| 15 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 16 |
6AH-42727-01-00 |
GROMMET This part replaces 6AH-42727-00-00. Price: $6.60 |
| 17 |
65W-42726-01-00 |
GROMMET This part replaces 65W-42726-00-00. Price: $6.40 |
| 18 |
90480-16007-00 |
GROMMET Price: $4.75 |
| 19 |
6AH-42726-01-00 |
GROMMET This part replaces 6AH-42726-00-00. Price: $7.15 |
| 20 |
6AH-24314-01-00 |
PIPE 4 Price: $24.90 |
| 21 |
90445-15003-00 |
HOSE (L230) Price: $5.35 |
| 22 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 23 |
6DR-12572-00-00 |
ADAPTER Price: $14.15 |
| 24 |
6R3-12581-00-00 |
JOINT, HOSE 1 Price: $6.40 |
| 25 |
6R3-12582-00-00 |
JOINT, HOSE 2 Price: $6.40 |
| 26 |
6R3-12583-10-00 |
GASKET, HOSE JOINT This part replaces 6R3-12583-00-00. Price: $3.55 |
| 27 |
6AH-12535-00-00 |
PLATE Price: $17.35 |
| 28 |
90167-06002-00 |
SCREW, TAPPING Price: $3.20 |
| 29 |
97E95-06510-00 |
BOLT, HEXAGON W/W Price: $0.80 |
| 30 |
90464-12M58-00 |
CLAMP Price: $3.15 |
| 31 |
65W-42717-00-00 |
RUBBER, SEAL 2 Price: $6.70 |
| 32 |
6AH-42743-00-00 |
BRACKET Price: $7.70 |
| 33 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 34 |
6AH-42761-A0-00 |
STOPPER Price: $69.65 |
| 35 |
6AH-42762-A0-00 |
STOPPER Price: $69.65 |
| 36 |
97E75-06512-00 |
BOLT, HEXAGON W/W Price: $1.00 |
| 37 |
6AH-42741-00-00 |
APRON Price: $64.95 |
| 38 |
97885-06030-00 |
SCREW, PAN HEAD Price: $5.05 |
| 39 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 40 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 41 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 42 |
6AH-42717-01-00 |
RUBBER, SEAL 2 This part replaces 6AH-42717-00-00. Price: $3.65 |
| 43 |
6AH-15774-00-00 |
STAY 4 Price: $29.85 |
| 44 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 45 |
90465-08M82-00 |
CLAMP Price: $9.80 |
| 46 |
6EE-42794-41-00 |
LABEL, WARNING (GENERAL) This part replaces 6EE-42794-40-00. Price: $17.80 |
