| Ref | Part Number | Description |
|---|
| 1 |
205084560 |
Socket Head Screw M8 X 45 Price: $3.69 |
| 2 |
205086060 |
Socket Head Screw M8 X 60 Price: $4.19 |
| 3 |
207004034 |
Hex. Screw M10 X 1.5 X 40 Price: $2.19 |
| 5 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. Price: $4.49 |
| 8 |
233201464 |
Hex. Flange Elastic M10 x 1.5 Price: $7.69 |
| 9 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 11 |
250000352 |
Hex. Flange Screw M8 X 40 Price: $3.49 |
| 13 |
250100016 |
LH Threaded Hex. Jam Nut M10 Price: $0.76 |
| 16 |
506152163 |
Plate Price: $13.49 |
| 17 |
506152217 |
Lower Half-Housing Price: $7.62 |
| 18 |
506152297 |
Housing Bushing Price: $13.49 |
| 19 |
506152496 |
Tie-Rod Ass'y Price: $62.49 |
| 22 |
506153178 |
Insulant This part replaces 506152423. Price: $13.49 |
| 26 |
506152501 |
Grip Price: $12.99 |
| 27 |
506152508 |
Upper Half-Housing Price: $9.23 |
| 28 |
506152509 |
Upper Anti-Vibration Gasket Price: $4.89 |
| 29 |
506152518 |
Lower Vibration Ring Price: $4.89 |
| 39 |
506152582 |
Washer Price: $4.69 |
| 44 |
506152681 |
HEATED FILM - Call your local BRP dealership Price: $33.99 |
| 47 |
506152721 |
STEERING PAD - Call your local BRP dealership Price: $93.99 |
| 48 |
506152729 |
LH HANDLEBAR SUPPORT - Call your local BRP dealership Price: $33.99 |
| 49 |
506152730 |
RH HANDLEBAR SUPPORT - Call your local BRP dealership Price: $33.99 |
| 50 |
506152861 |
BLACK HANDLE BAR - Call your local BRP dealership Price: $98.99 |
| 51 |
732610010 |
RH Threaded Hex. Jam Nut M10 Price: $0.76 |
| 53 |
506152751 |
Steering Support This part replaces 506152750. Price: $14.49 |
| 53 |
548873704 |
Steering Support Price: $16.99 |
| 55 |
506152962 |
Steering Column This part replaces 506152839. Price: $204.99 |
| 56 |
233601466 |
Elastic Locking Nut M10 Price: $2.19 |
| 59 |
506152081 |
LH Thread Ball Joint Price: $41.49 |
| 59 |
506152684 |
RH Threaded Ball Joint Price: $44.49 |

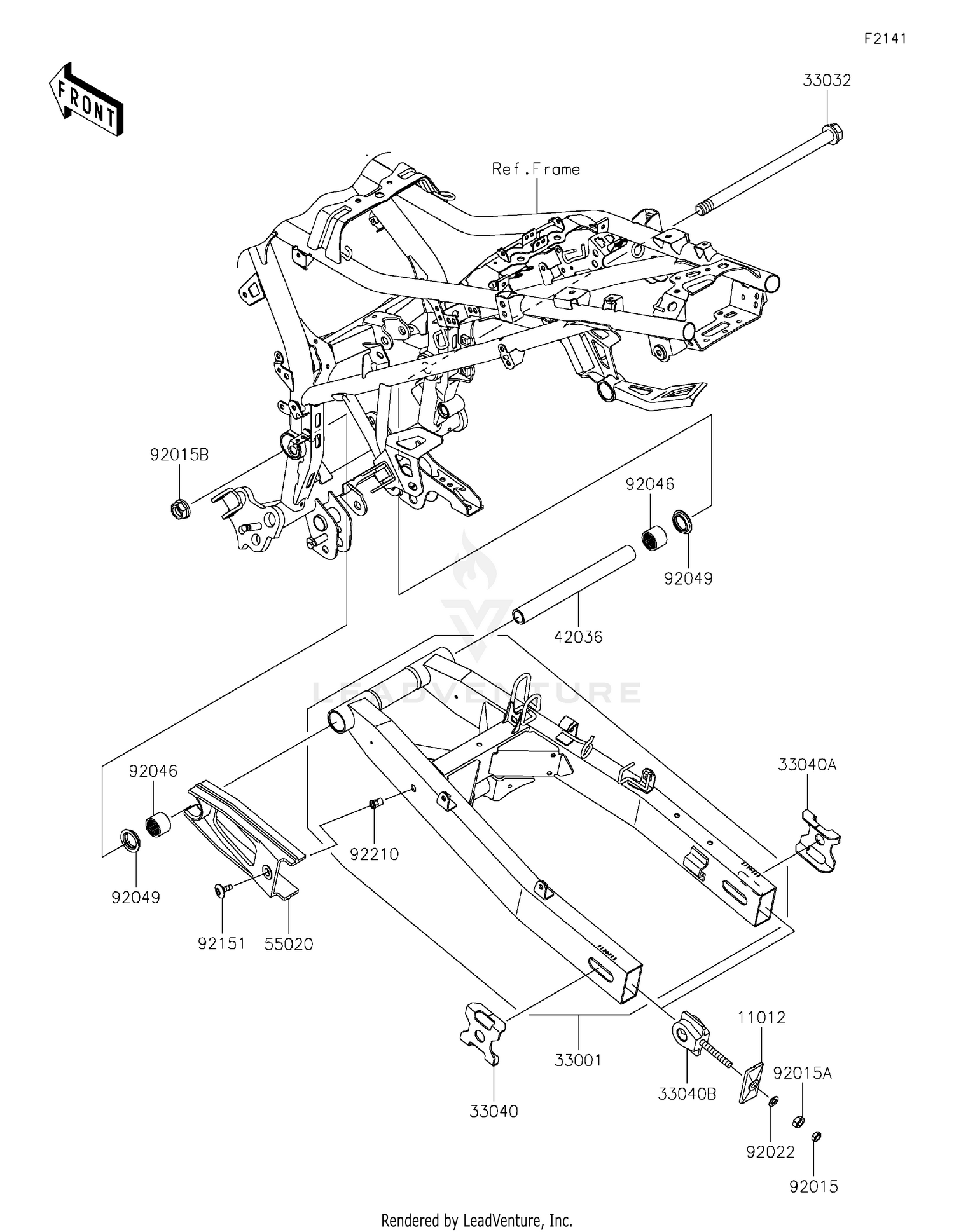

| 11012 |
11012-1871-18R |
CAP,CHAIN ADJUSTER,F.S.BLACK Price: $27.22 |
| 33001 |
33001-0684-18R |
ARM-COMP-SWING,F.S.BLACK Price: $457.07 |
| 33032 |
33032-1134 |
SHAFT-SWING ARM Price: $53.59 |
| 33040 |
33040-0030-18R |
ADJUSTER-CHAIN,OUTER,F.S.BLACK Price: $22.86 |
| 33040A |
33040-0088-18R |
ADJUSTER-CHAIN,OUTER,F.S.BLACK Price: $23.07 |
| 33040B |
33040-1116 |
ADJUSTER-CHAIN,INNER Price: $30.34 |
| 42036 |
42036-0816 |
SLEEVE,16.1X22X213.8 Price: $46.83 |
| 55020 |
55020-0317 |
GUARD,CHAIN Price: $28.84 |
| 92015 |
92015-1364 |
NUT,8MM Price: $3.92 |
| 92015A |
92015-1658 |
NUT,8MM Price: $4.87 |
| 92015B |
92015-1946 |
NUT,FLANGED,16MM Price: $12.74 |
| 92022 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 92022-1582. Price: $0.96 |
| 92046 |
92046-0610 |
BEARING-NEEDLE,22X28X20 Price: $24.16 |
| 92049 |
92049-1254 |
SEAL-OIL,MHA22 28 5.7F Price: $9.28 |
| 92151 |
92151-1149 |
BOLT,SOCKET,6X18 Price: $7.68 |
