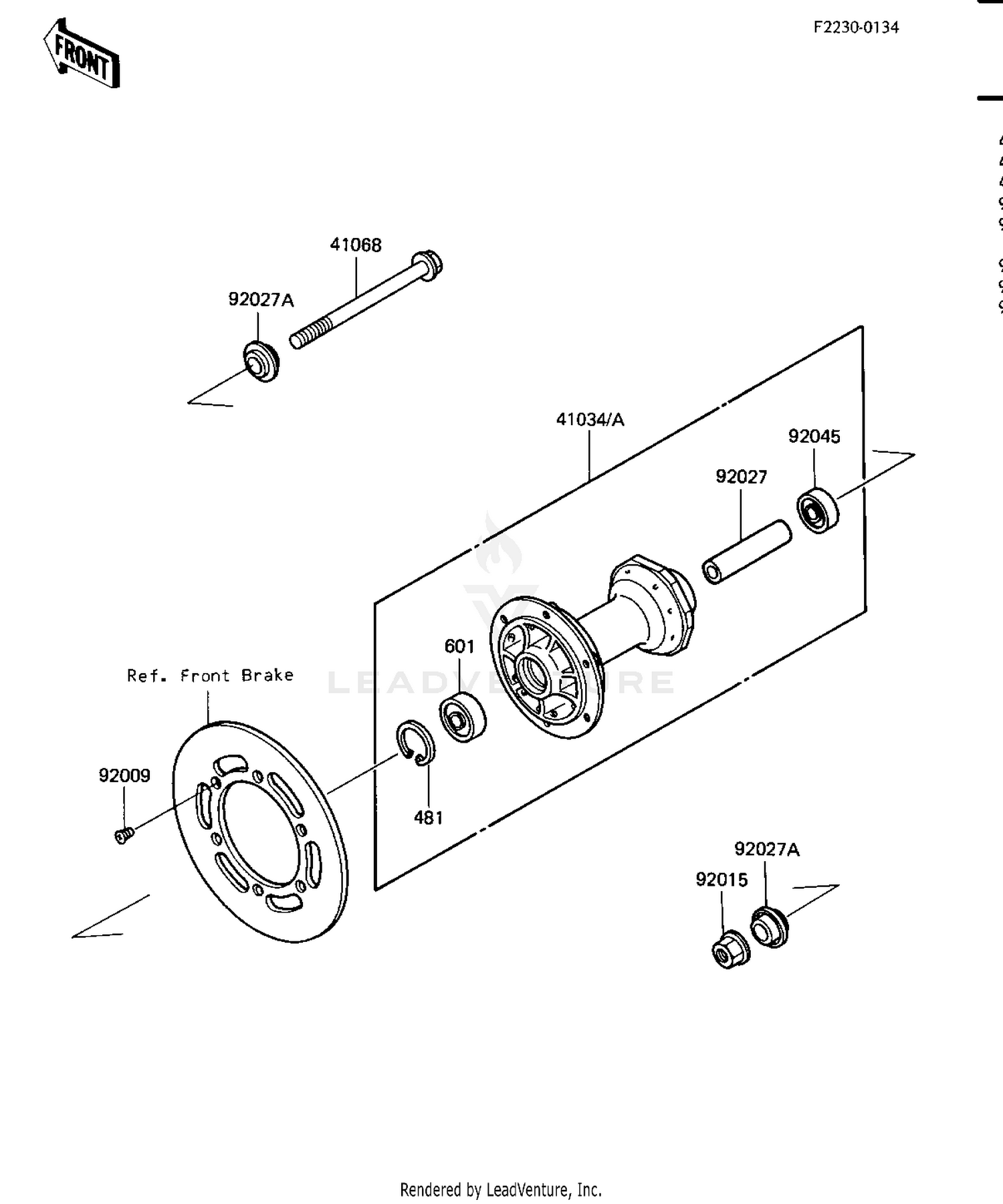

FRONT HUB
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 481 | 481J3700 | CIRCLIP-TYPE-C,37MM Price: $3.04 |
| 41034 | 41034-1137 | DRUM-ASSY,FRONT BRAKE Price: $159.91 |
| 41034A | 41034-1150 | DRUM-ASSY,FRONT BRAKE Price: $170.65 |
| 41068 | 41068-1200 | AXLE,FR Price: $36.35 |
| 92009 | 92009-1375 | SCREW,6X10 Price: $3.92 |
| 92015 | 92015-1426 | NUT,12MM This part replaces 92015-1156. Price: $7.33 |
| 92027 | 92027-1925 | COLLAR,L=81 Price: $21.49 |
| 92027A | 92027-1926 | COLLAR,L=6 Price: $13.43 |
| 92045 | 92045-1062 | BEARING-BALL,TMB201LLUC3/2A Price: $26.08 |
