| Ref | Part Number | Description |
|---|
| 2 |
505071781 |
Ski Bushing Price: $16.18 |
| 4 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 5 |
505072976 |
Black, Handle Price: $36.99 |
| 6 |
505071812 |
Retainer 17mm long Price: $6.09 |
| 7 |
505072133 |
Retainer 23mm Long Price: $6.89 |
| 8 |
250000703 |
Hex. Screw M10 X 130 This part replaces 230003044. Price: $10.99 |
| 9 |
506133300 |
Spacer Price: $23.99 |
| 10 |
732900049 |
Washer Price: $0.60 |
| 11 |
233201414 |
Hex. Flange Elastic Nut M10 Price: $1.59 |
| 12 |
505072594 |
Ski Stopper Price: $18.49 |
| 14 |
505072690 |
Leg Bushing Price: $12.49 |
| 15 |
505071999 |
Spacer Price: $15.49 |
| 16 |
505073583 |
Black Epoxy, LH Lower Arm Price: $204.99 |
| 16 |
505073584 |
Black Epoxy, RH Lower Arm Price: $204.99 |
| 17 |
505073330 |
Bushing Price: $9.23 |
| 18 |
505072209 |
Sleeve Price: $17.84 |
| 19 |
505072634 |
Wear Plate Price: $6.39 |
| 20 |
250001024 |
Screw Hex. M10 X 70 This part replaces 250000291. Price: $2.19 |
| 21 |
505073588 |
Black Epoxy, LH Upper Arm Price: $154.99 |
| 21 |
505073589 |
Black Epoxy, RH Upper Arm Price: $154.99 |
| 22 |
505073329 |
Bushing Price: $9.23 |
| 23 |
505072143 |
Sleeve Price: $9.00 |
| 24 |
250001023 |
Screw Hex. M10 X 60 This part replaces 250000290. Price: $2.19 |
| 25 |
250001022 |
Screw Hex. M10 X 50 This part replaces 250000289. Price: $1.69 |
| 26 |
503189564 |
Washer Price: $0.76 |
| 27 |
505072392 |
Washer Price: $4.89 |
| 28 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 29 |
505072602 |
Stabilisator Price: $71.99 |
| 30 |
505072064 |
Bushing Price: $2.32 |
| 31 |
505072394 |
Stabilisator Lever Price: $18.99 |
| 32 |
207663046 |
Hex. Flange Screw M6 X 30 Price: $1.69 |
| 33 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 34 |
505072204 |
Sway Bar Double Joint Link Price: $21.99 |
| 35 |
207663046 |
Hex. Flange Screw M6 X 30 Price: $1.69 |
| 36 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 45 |
207005544 |
Hex. Screw M10 X 55 Price: $2.29 |
| 46 |
207006544 |
Hex. Screw M10 X 1.5 X 65 Price: $2.99 |
| 47 |
503189564 |
Washer Price: $0.76 |
| 48 |
233201414 |
Hex. Flange Elastic Nut M10 Price: $1.59 |
| 49 |
505073636 |
Ball Joint Price: $51.99 |
| 50 |
293370070 |
Circlip Price: $9.19 |
| 51 |
234021410 |
Flat Washer 12 mm Price: $0.74 |
| 52 |
250100089 |
Hex. Elastic Hex. Nut M12 Price: $0.46 |
| 53 |
505072913 |
Upper Ball Joint Price: $72.99 |

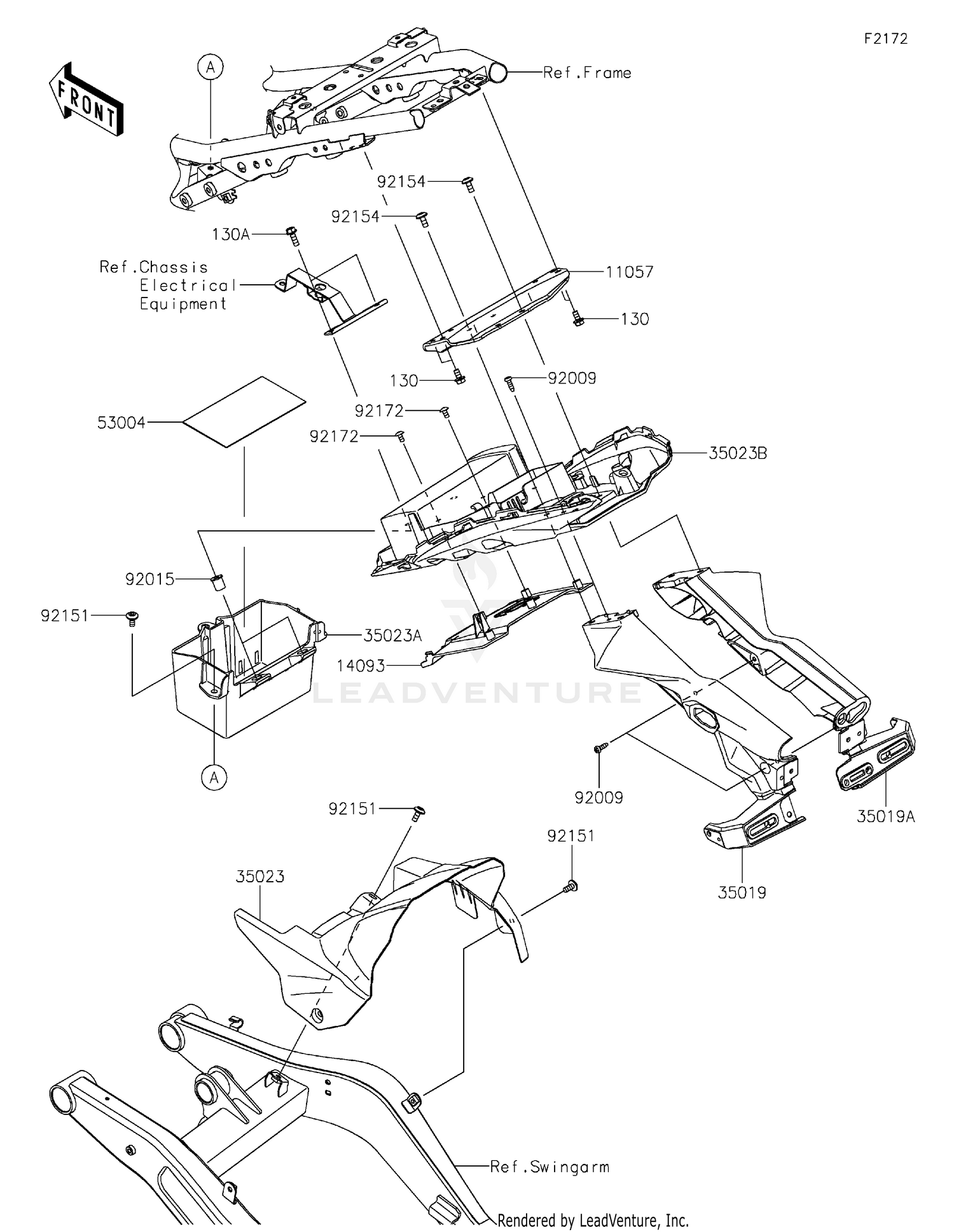

| 130 |
130BA0612 |
BOLT-FLANGED,6X12 Price: $1.72 |
| 11057 |
11057-0757 |
BRACKET,FLAP Price: $40.66 |
| 14093 |
14093-0482 |
COVER Price: $17.14 |
| 35019 |
35019-0671 |
FLAP,LH This part replaces 35019-0617. Price: $32.12 |
| 35019A |
35019-0672 |
FLAP,RH This part replaces 35019-0618. Price: $35.12 |
| 35023 |
35023-0417 |
FENDER-REAR Price: $27.16 |
| 35023A |
35023-0418 |
FENDER-REAR,FR Price: $33.38 |
| 35023B |
35023-0419 |
FENDER-REAR,RR Price: $56.74 |
| 53004 |
53004-0560 |
MAT,BATTERY Price: $9.09 |
| 92009 |
92009-1984 |
SCREW,TAPPING,5X16 Price: $2.58 |
| 92015 |
92015-1700 |
NUT Price: $8.58 |
| 92151 |
92151-1654 |
BOLT,SOCKET,6X14 Price: $1.83 |
| 92154 |
92154-0745 |
BOLT,SOCKET,6X14 Price: $2.32 |
| 92172 |
92172-0864 |
SCREW,5X10 Price: $1.34 |
