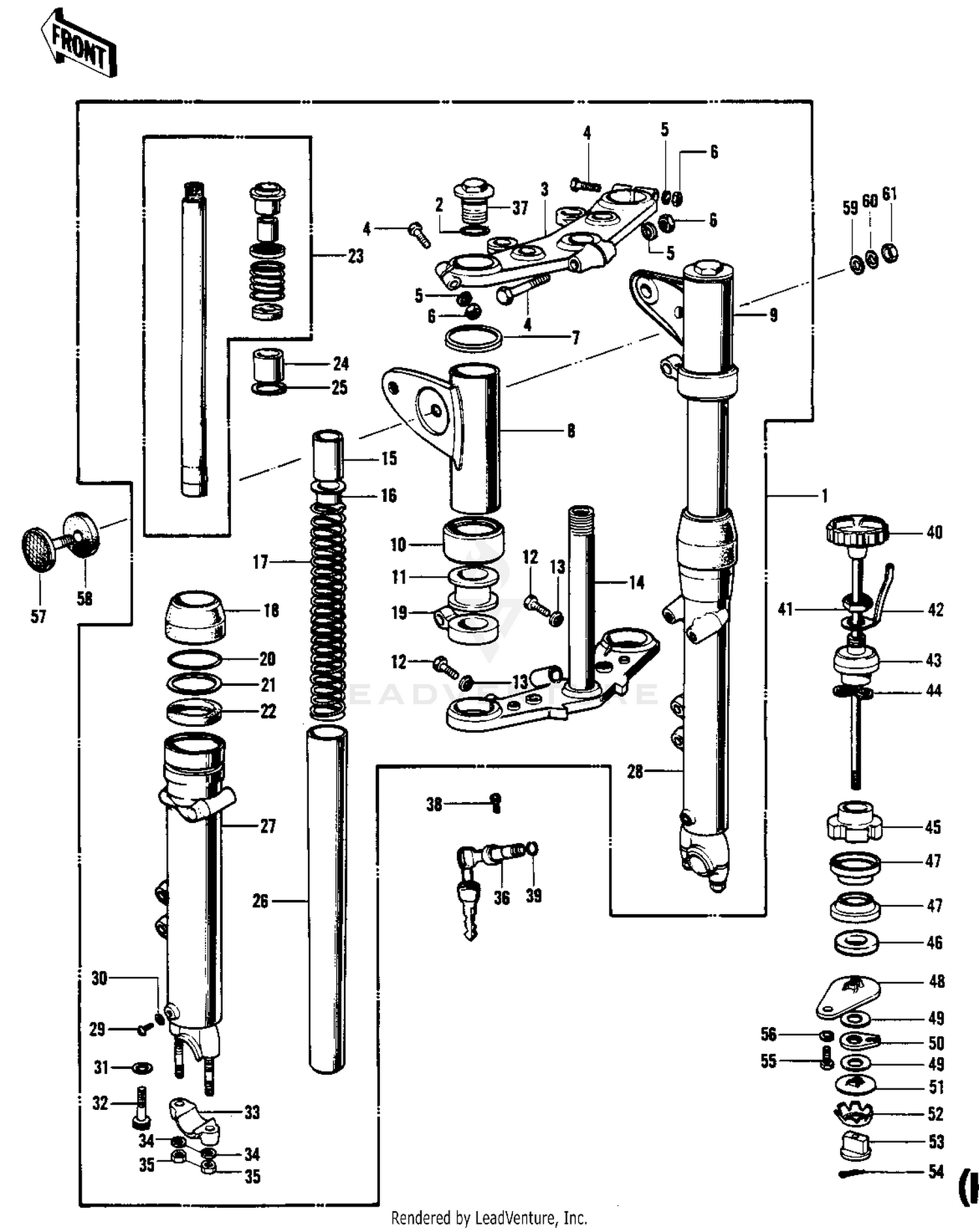

| Ref | Part Number | Description |
|---|
| 1 |
44001-087 |
FORK-FRONT Price: $891.83 |
| 3 |
44039-040 |
HEAD-STEERING STEM Price: $146.99 |
| 4 |
44041-038 |
BOLT-HEX HEAD,8X55 Price: $9.41 |
| 5 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 6 |
311N0800 |
NUT,8M/M Price: $3.58 |
| 7 |
44032-008 |
WASHER-FORK COVER Price: $14.66 |
| 8 |
44033-043-21 |
COVER,L.H,FORK,F.BLCK Price: $88.12 |
| 9 |
44034-042-21 |
COVER,R.H FORK,F.BLK Price: $80.12 |
| 10 |
44064-002 |
GUIDE-FORK COVER Price: $9.42 |
| 11 |
44045-035 |
GASKET-FORK COVER Price: $4.05 |
| 12 |
113B1236A |
BOLT-HEX HEAD,12X36 Price: $5.54 |
| 13 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 14 |
44037-041 |
STEM-STEERING Price: $245.13 |
| 15 |
44028-023 |
SPACER-FORK SPRING Price: $3.79 |
| 16 |
44029-019 |
GUIDE-FORK SPRING Price: $8.55 |
| 17 |
44026-031 |
SPRING-FORK Price: $25.49 |
| 18 |
44010-021 |
DUST SHIELD-FORK Price: $63.61 |
| 19 |
23051-031 |
BRACKET-TURN SIG LAMP Price: $21.33 |
| 20 |
44044-012 |
CIRCLIP-OIL SEAL FIT Price: $29.65 |
| 21 |
44043-044 |
WASHER-OIL SEAL FIT Price: $13.51 |
| 22 |
92049-1216 |
SEAL-OIL,FORK OUTER P Price: $23.21 |
| 23 |
44022-007 |
CYLINDER-FORK Price: $100.33 |
| 26 |
44013-032 |
TUBE-FORK INNER Price: $209.87 |
| 27 |
44005-041 |
TUBE,LH,FORK OUTER Price: $306.66 |
| 28 |
44006-039 |
TUBE,RH,FORK OUTER Price: $272.03 |
| 29 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 30 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 31 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 32 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 33 |
44063-003 |
HOLDER-FRONT AXLE Price: $22.62 |
| 34 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 35 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 36 |
27016-024 |
LOCK ASSY-STEERING Price: $18.53 |
| 37 |
44062-003 |
BOLT-FORK TOP Price: $49.14 |
| 38 |
92099-001 |
SCREW RIVET Price: $3.89 |
| 39 |
92033-024 |
CIRCLIP-STEERING LOCK Price: $8.56 |
| 40 |
46101-006 |
KNOB-STEERING DAMPER Price: $20.63 |
| 41 |
315N1200A |
NUT 12MM Price: $5.51 |
| 42 |
46126-001 |
SPRING STRG DAMP KNOB Price: $5.79 |
| 43 |
92090-020 |
BOLT-STEERING STEM Price: $53.36 |
| 44 |
46100-002 |
WASHER-WAVE Price: $10.51 |
| 45 |
92090-007 |
NUT,30MM Price: $11.71 |
| 46 |
46098-016 |
CAP,STEERING STEM Price: $6.51 |
| 47 |
92047-006 |
CONE STRNG STEM BERNG Price: $12.67 |
| 48 |
46106-005 |
PLATE STRG DAMP STEEL Price: $9.23 |
| 49 |
46104-005 |
PLATE STRG DAMP FRCTN Price: $4.21 |
| 50 |
46105-005 |
PLATE STRG DAMP ANCHR Price: $10.60 |
| 51 |
46106-006 |
PLATE STRG DAMP STEEL Price: $5.51 |
| 52 |
46124-006 |
SPRING-STEERING DAMP Price: $10.17 |
| 53 |
46125-005 |
NUT STRG DAMPER GUIDE Price: $26.55 |
| 54 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 55 |
115G0812 |
BOLT-SMALL-UPSET,8X12 This part replaces 114G0812. Price: $4.16 |
| 56 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 57 |
28012-006 |
REFLECTOR-REFLEX,FRNT Price: $23.68 |
| 58 |
92094-009 |
DAMPER RUBBER-REFLCTR Price: $8.34 |
| 59 |
410AA0500 |
WASHER-PLAIN-SMALL This part replaces 411B0500. Price: $0.47 |
| 60 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
