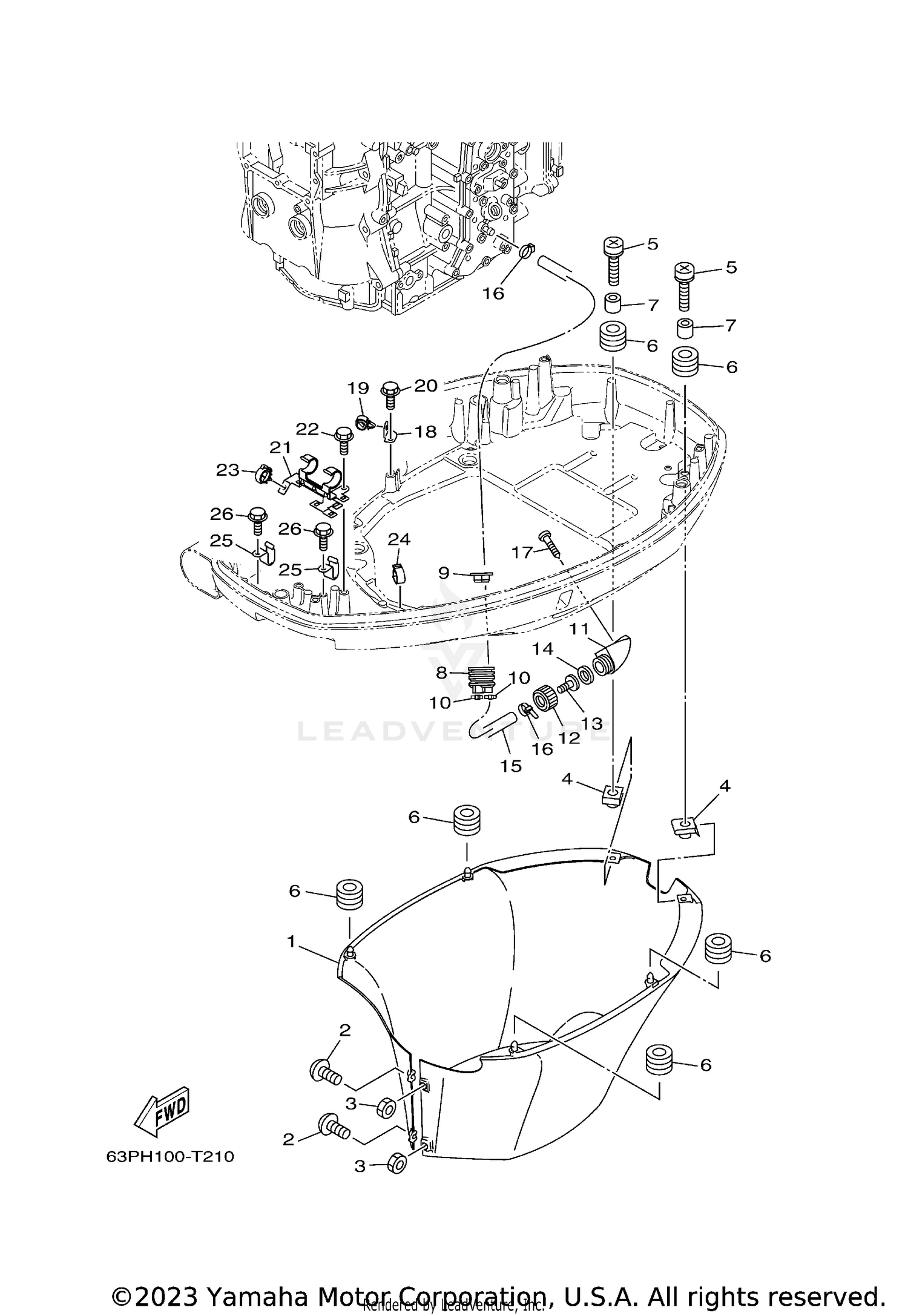

| Ref | Part Number | Description |
|---|
| 2 |
90159-06M28-00 |
SCREW, WITH WASHER Price: $5.50 |
| 3 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 4 |
90183-061A8-00 |
NUT, SPRING Price: $3.15 |
| 5 |
90159-06053-00 |
SCREW, WITH WASHER Price: $4.60 |
| 6 |
90480-13M24-00 |
GROMMET Price: $9.05 |
| 7 |
90387-06M43-00 |
COLLAR Price: $8.85 |
| 8 |
6H1-42726-22-00 |
GROMMET Price: $6.70 |
| 9 |
6BG-42384-00-00 |
SEAL, CAP Price: $6.60 |
| 10 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 11 |
6AW-12572-00-00 |
ADAPTER Price: $15.55 |
| 12 |
6R3-12581-00-00 |
JOINT, HOSE 1 Price: $6.40 |
| 13 |
6R3-12582-00-00 |
JOINT, HOSE 2 Price: $6.40 |
| 14 |
6R3-12583-10-00 |
GASKET, HOSE JOINT This part replaces 6R3-12583-00-00. Price: $3.55 |
| 15 |
63P-42541-10-00 |
PIPE 1 Price: $10.70 |
| 16 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 17 |
97780-60520-00 |
SCREW, TAPPING Price: $4.49 |
| 18 |
63P-42756-00-00 |
STAY, CLAMP Price: $7.05 |
| 19 |
90464-13249-00 |
CLAMP Price: $3.55 |
| 20 |
90109-06316-00 |
BOLT Price: $1.90 |
| 21 |
63P-8366G-00-00 |
BRACKET 3 Price: $26.60 |
| 22 |
90109-06316-00 |
BOLT Price: $1.90 |
| 23 |
90464-18246-00 |
CLAMP Price: $2.44 |
| 24 |
90464-18004-00 |
CLAMP Price: $4.40 |
| 25 |
90462-12013-00 |
CLAMP Price: $5.05 |
