| Ref | Part Number | Description |
|---|
| 3 |
114045200 |
Hair Pin Price: $11.49 |
| 6 |
205052544 |
Socket Screw M5 X 25 Price: $1.69 |
| 7 |
205084044 |
Socket Head Screw M8 X 1.25 X 40 Price: $2.89 |
| 8 |
232551414 |
Elastic Stop Nut M5 Price: $0.89 |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 10 |
234051410 |
Flat Washer M5 Price: $0.55 |
| 12 |
250000418 |
Hex. Flange Screw M6 X 18, Scotch Grip Price: $4.19 |
| 14 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. Price: $1.49 |
| 15 |
250000416 |
Serrated Hex. Flange Bolt M6 Price: $4.29 |
| 16 |
250000283 |
Torx Screw M8 X 25, Scotch Grip Price: $6.39 |
| 17 |
250000533 |
Hex. Flange Screw M8 X 1.25 X 16 Price: $3.09 |
| 18 |
250200006 |
Spring Washer 14 mm Price: $7.19 |
| 19 |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 21 |
250400050 |
Spring Pin M10 X 22 Price: $3.09 |
| 22 |
250400061 |
Spring Pin M3 X 18 Price: $2.19 |
| 23 |
293150103 |
Pop Rivet 3/16" Price: $0.57 |
| 26 |
293150104 |
Pop Rivet 3/16" Price: $1.09 |
| 29 |
293370049 |
Circlip Price: $5.09 |
| 30 |
293370071 |
Circlip Price: $4.19 |
| 35 |
390909100 |
Avex Rivet Price: $0.30 |
| 36 |
390909200 |
Avex Rivet Price: $0.30 |
| 39 |
415034900 |
Spring, Violet/blue Price: $44.99 |
| 40 |
417004302 |
Stopper Washer Price: $15.99 |
| 44 |
417005600 |
Washer Price: $4.19 |
| 46 |
417009205 |
Guard Price: $21.99 |
| 48 |
417127317 |
Sliding Flange Ass'y This part replaces 417126955. Price: $164.99 |
| 51 |
417127016 |
Pulley Roller Price: $25.99 |
| 52 |
417127137 |
Green, Spring Price: $42.99 |
| 54 |
417127325 |
Cam Ass'y This part replaces 417126973. Price: $164.99 |
| 56 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 58 |
417127116 |
Swivel Abutment Price: $9.59 |
| 59 |
417127155 |
Washer Price: $8.39 |
| 62 |
415129604 |
Calibration Ass'y Price: $22.49 |
| 66 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 66a |
417127294 |
Pivot Stud Price: $14.99 |
| 71 |
417127387 |
Fix Flange Ass'y This part replaces 417127332. Price: $499.99 |
| 71a |
417127294 |
Pivot Stud Price: $14.99 |
| 76 |
417222312 |
Spring Seat Price: $9.79 |
| 79 |
417222508 |
Ramp 413 Price: $33.99 |
| 80 |
417222594 |
Pin Price: $15.49 |
| 80a |
XXX |
Not Available As Spare Parts Price: Call Us |
| 80b |
XXX |
Not Available As Spare Parts Price: Call Us |
| 82 |
417222671 |
Lever Price: $49.99 |
| 84 |
417222759 |
Spring Cover Ass'y Price: $51.99 |
| 87 |
417225071 |
Ring Gear_Starter This part replaces 417222952. Price: $244.99 |
| 88 |
417222947 |
Roller Price: $21.99 |
| 89 |
417223164 |
Lever Axle Price: $4.59 |
| 92 |
417223232 |
Fixed Flange Ass'y Price: $399.99 |
| 96 |
417223271 |
Slider Shoe Price: $8.49 |
| 97 |
417223086 |
Bushing Price: $36.99 |
| 99 |
417223666 |
Governor Cup Ass'y Price: $499.99 |
| 100 |
417223444 |
Sliding Flange Ass'y Price: $349.99 |
| 102 |
417223471 |
Bushing Price: $8.14 |
| 103 |
417223501 |
Calibration Screw Price: $14.49 |
| 105 |
Not |
Available As Spare Part - Drive Pulley Ass'y |
| 106 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 107 |
417300357 |
Belt Guard Price: $93.99 |
| 108 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 109 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 110 |
417300381 |
Guide Price: $11.99 |
| 112 |
417300571 |
Drive Belt This part replaces 417300391. Price: $239.99 |
| 113 |
417300409 |
TRA 7 Bolt (M14 X 153.5 mm) Price: $43.99 |
| 114 |
417300421 |
Reinforcement Plate Price: $4.49 |
| 115 |
417300422 |
Front Support Price: $8.79 |
| 116 |
417300423 |
Front Bracket Price: $7.49 |
| 117 |
417300439 |
CVT Air Duct Price: $29.99 |
| 118 |
417300448 |
BELT GUARD BRACKET - Call your local BRP dealership Price: $31.99 |
| 120 |
504152574 |
Ball Bearing Price: $35.99 |
| 121 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 122 |
516005503 |
Decal English Price: $0.01 |
| 124 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 125 |
516005507 |
RPM Sticker, English Price: $13.99 |
| 126 |
516005509 |
Safety Belt Guard Decal Price: $0.01 |
| 127 |
517225900 |
Flat Washer Price: $0.18 |
| 129 |
732401030 |
O-Ring Price: $1.19 |
| 130 |
250400060 |
Cotter Pin Price: $2.09 |
| 380 |
417300445 |
Stopper Price: $10.99 |

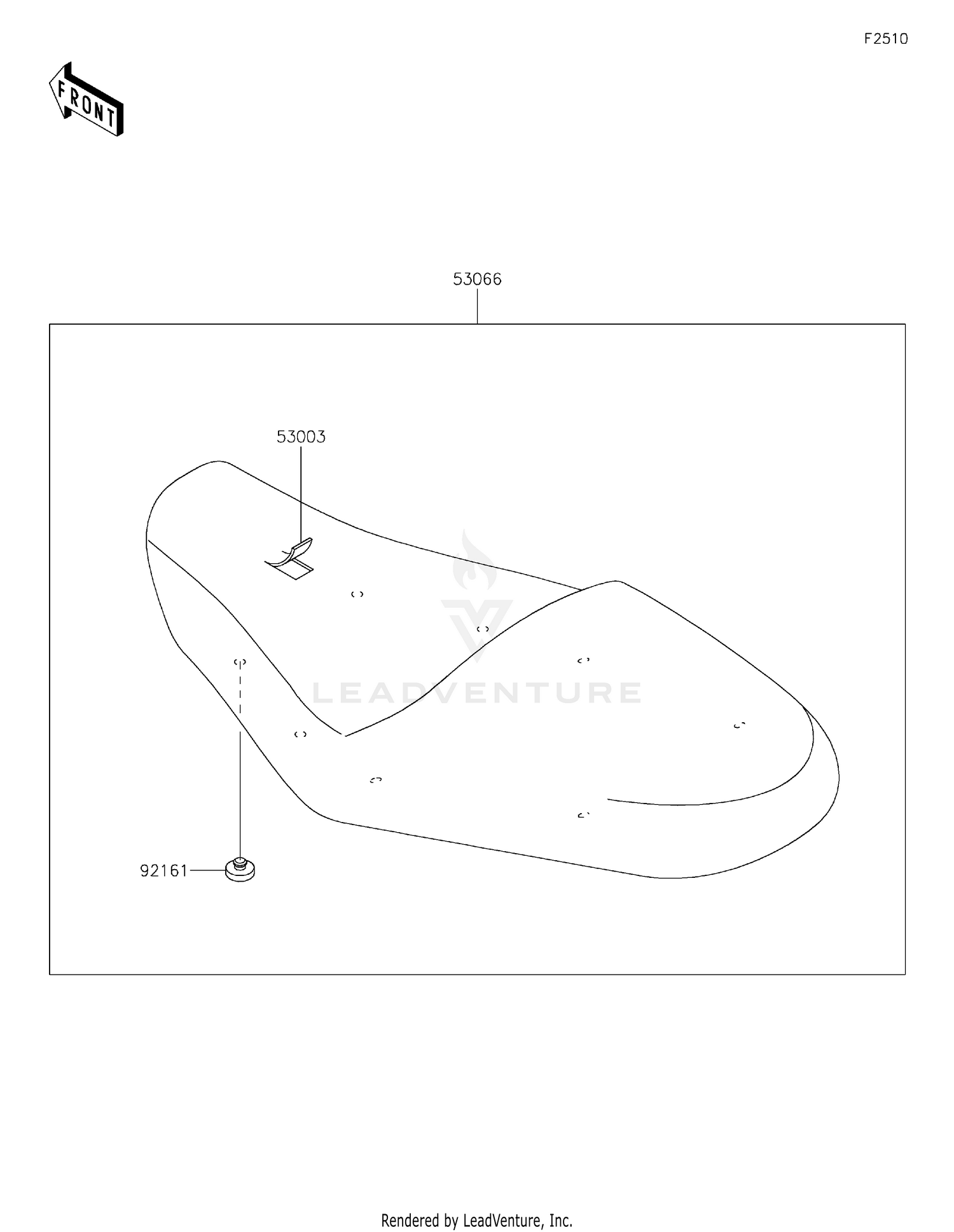

| 53003 |
53003-0476-61Q |
LEATHER,BLACK+BRN+SIL Price: $271.35 |
| 53066 |
53066-0626-61Q |
SEAT-ASSY,BLACK+BRN+SIL Price: $539.60 |
