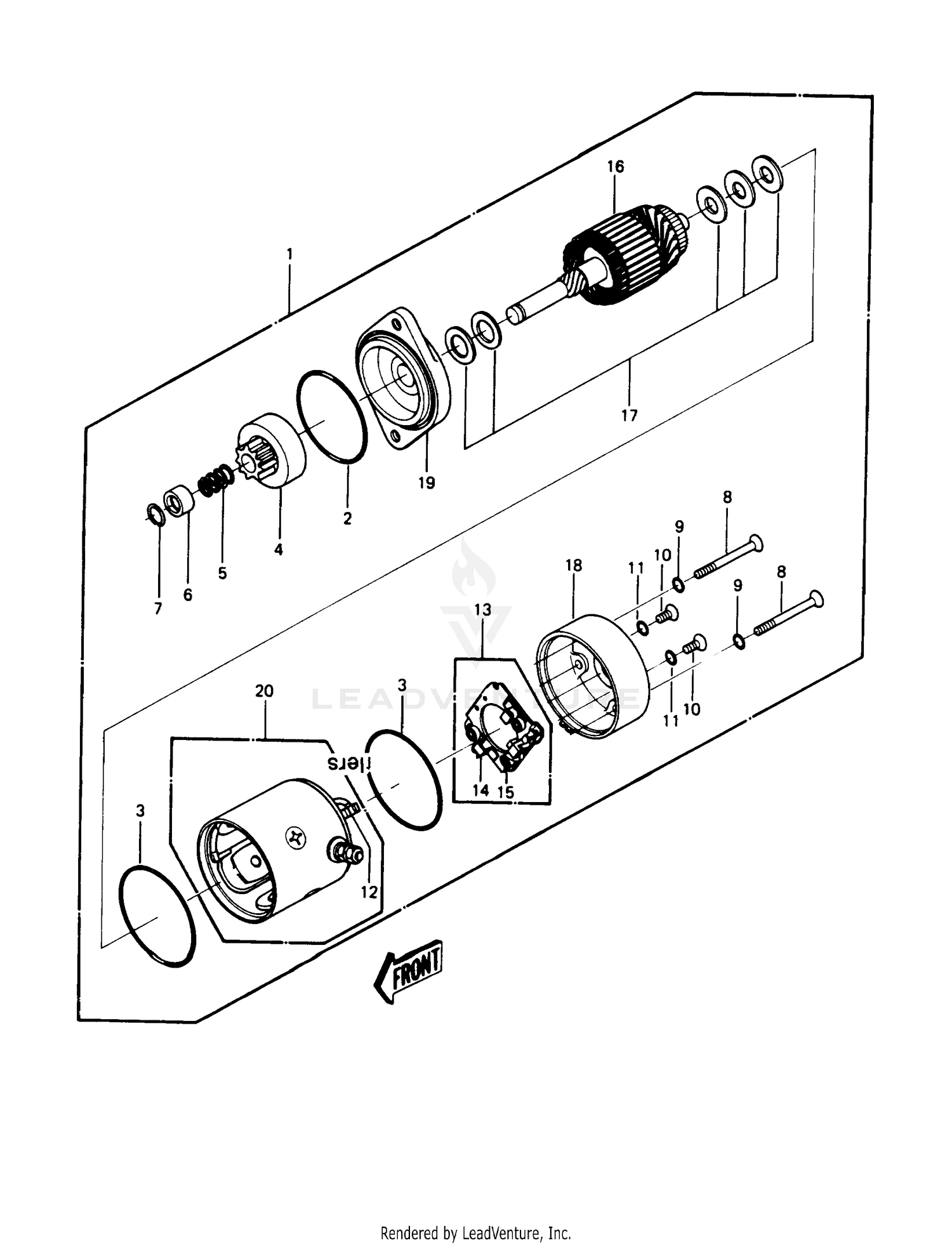

STARTER MOTOR
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 21163-3710 | STARTER-ELECTRIC This part replaces 21163-3003-YR. Price: $584.99 |
| 2 | 671B2565 | O RING,65MM This part replaces 92055-516. Price: $8.86 |
| 4 | 59051-3005 | PINION ASSY-STARTER Price: $437.23 |
| 5 | 92081-541 | SPRING,RETURN Price: $5.15 |
| 6 | 92027-513 | STOPPER,PINION Price: $25.73 |
| 7 | 92036-517 | RING,SNAP Price: $7.57 |
| 8 | 92011-549 | SCREW 6X107 Price: $11.12 |
| 10 | 92011-550 | SCREW 4X8 Price: $6.30 |
| 11 | 670B1505 | O RING,5MM Price: $3.26 |
| 12 | 21039-3003 | BRUSH(+) Price: $41.54 |
| 13 | 14079-3002 | HOLDER ASSY,BRUSH Price: $224.34 |
| 14 | 21039-3004 | BRUSH(-) Price: $65.35 |
| 15 | 92081-540 | SPRING,BRUSH Price: $12.75 |
| 16 | 21080-3702 | ARMATURE This part replaces 21080-3001. Price: $522.47 |
| 17 | 92022-3044 | WASHER SET Price: $9.57 |
| 18 | 14025-3027 | COVER ASSY-REAR Price: $161.55 |
| 19 | 14025-3028 | COVER ASSY-FRONT Price: $161.55 |
| 20 | 49117-3002 | YOKE ASSY Price: $453.37 |
