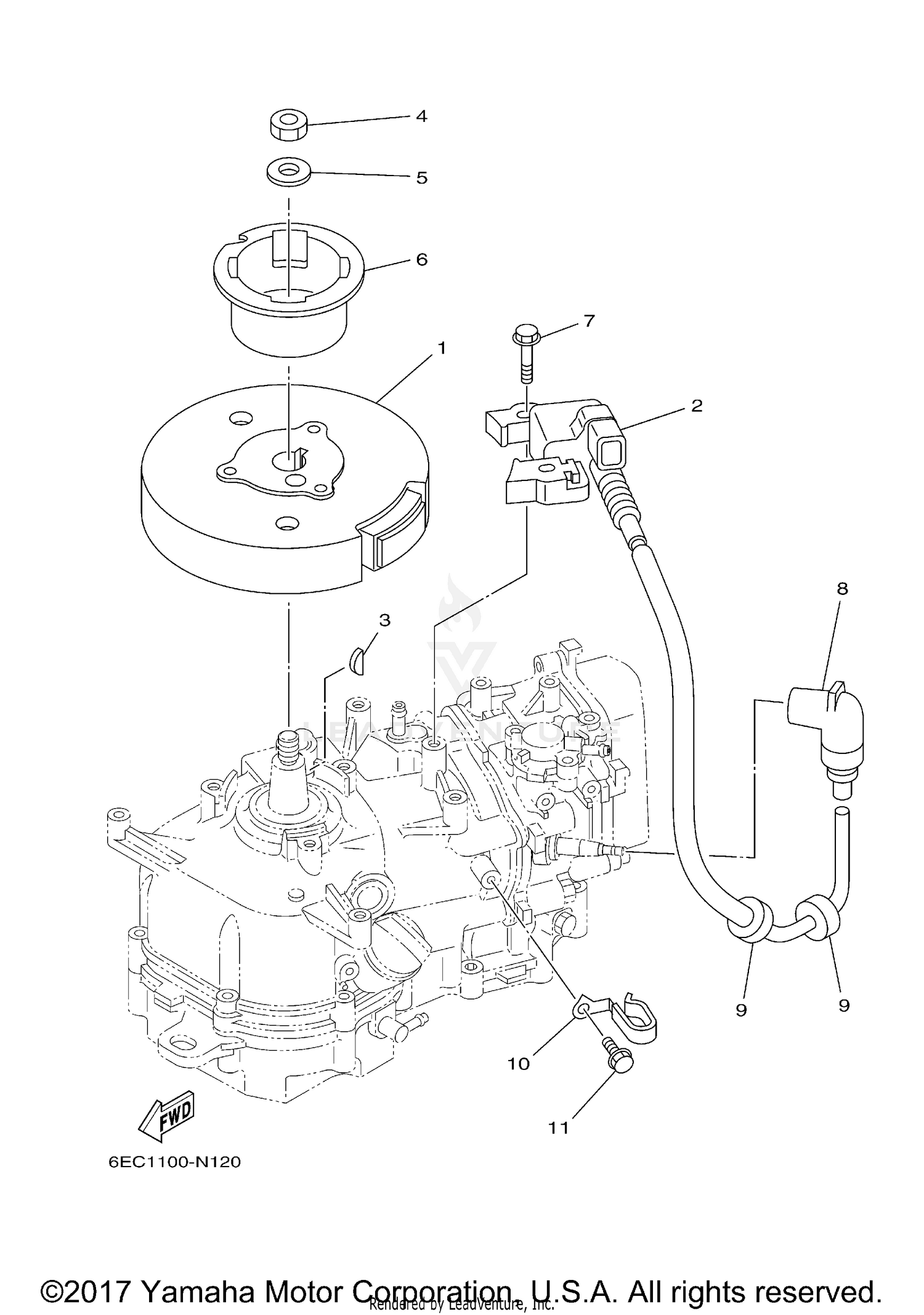

GENERATOR
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6BX-85550-00-00 | ROTOR ASSY Price: $468.40 |
| 2 | 6BV-85571-01-00 | IGNITION COIL WITH CDI UNIT Price: $348.05 |
| 3 | 90280-04M06-00 | KEY, WOODRUFF Price: $6.75 |
| 4 | 90170-12066-00 | NUT Price: $9.05 |
| 5 | 90201-126A7-00 | WASHER,PLATE This part replaces 90201-12472-00. Price: $10.49 |
| 6 | 6BX-15723-00-00 | PULLEY, STARTER Price: $18.15 |
| 7 | 90105-06037-00 | BOLT, FLANGE Price: $3.20 |
| 8 | 6BX-82370-00-00 | PLUG CAP ASSY Price: $48.25 |
| 9 | 90480-25161-00 | GROMMET Price: $5.35 |
| 10 | 90465-08361-00 | CLAMP Price: $9.49 |
