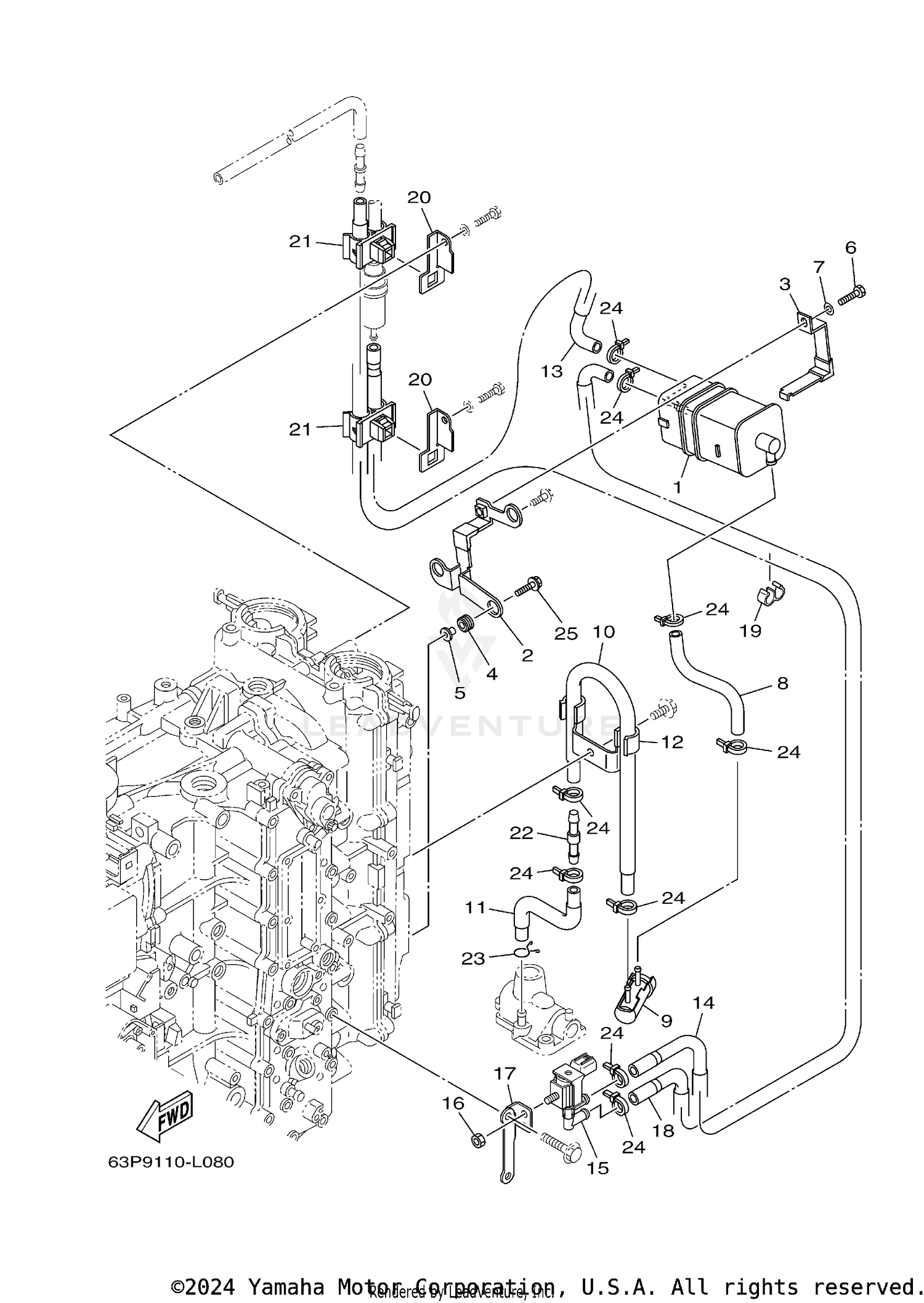

INTAKE 2
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6P2-24170-00-00 | CANISTER ASSY Price: $103.30 |
| 2 | 63P-2134X-00-00 | BRACKET, CANISTER Price: $43.80 |
| 3 | 63P-2419A-01-00 | HOLDER Price: $21.60 |
| 4 | 90480-10M23-00 | GROMMET Price: $9.65 |
| 5 | 90387-06M60-00 | COLLAR Price: $8.60 |
| 6 | 97D95-06016-00 | BOLT, HEXAGON DEEP R This part replaces 97095-06016-00. Price: $2.76 |
| 7 | 92990-06600-00 | WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 8 | 64P-24313-00-00 | PIPE 3 Price: $13.45 |
| 9 | 69J-24502-00-00 | FILTER, FUEL Price: $57.20 |
| 10 | 64P-24312-00-00 | PIPE 2 Price: $29.00 |
| 11 | 64P-24311-00-00 | PIPE, FUEL 1 Price: $15.20 |
| 12 | 63P-24367-01-00 | CLAMP, FUEL PIPE 2 Price: $49.65 |
| 13 | 64P-24315-00-00 | PIPE 5 Price: $16.85 |
| 14 | 64P-24316-00-00 | PIPE 6 Price: $25.05 |
| 15 | 6C5-86120-00-00 | SOLENOID VALVE ASSY Price: $157.80 |
| 16 | 95380-06600-00 | NUT, HEXAGON Price: $4.80 |
| 17 | 63P-81845-20-00 | PLATE This part replaces 63P-81845-10-00. Price: $10.95 |
| 18 | 64P-24314-10-00 | PIPE 4 Price: $29.85 |
| 19 | 90464-09M31-00 | CLAMP Price: $8.49 |
| 20 | 63P-24364-01-00 | STAY Price: $14.90 |
| 21 | 90464-11012-00 | CLAMP Price: $5.55 |
| 22 | 6E5-24379-00-00 | PIPE, JOINT 4 Price: $4.20 |
| 23 | 90467-09M09-00 | CLIP Price: $1.15 |
| 24 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
