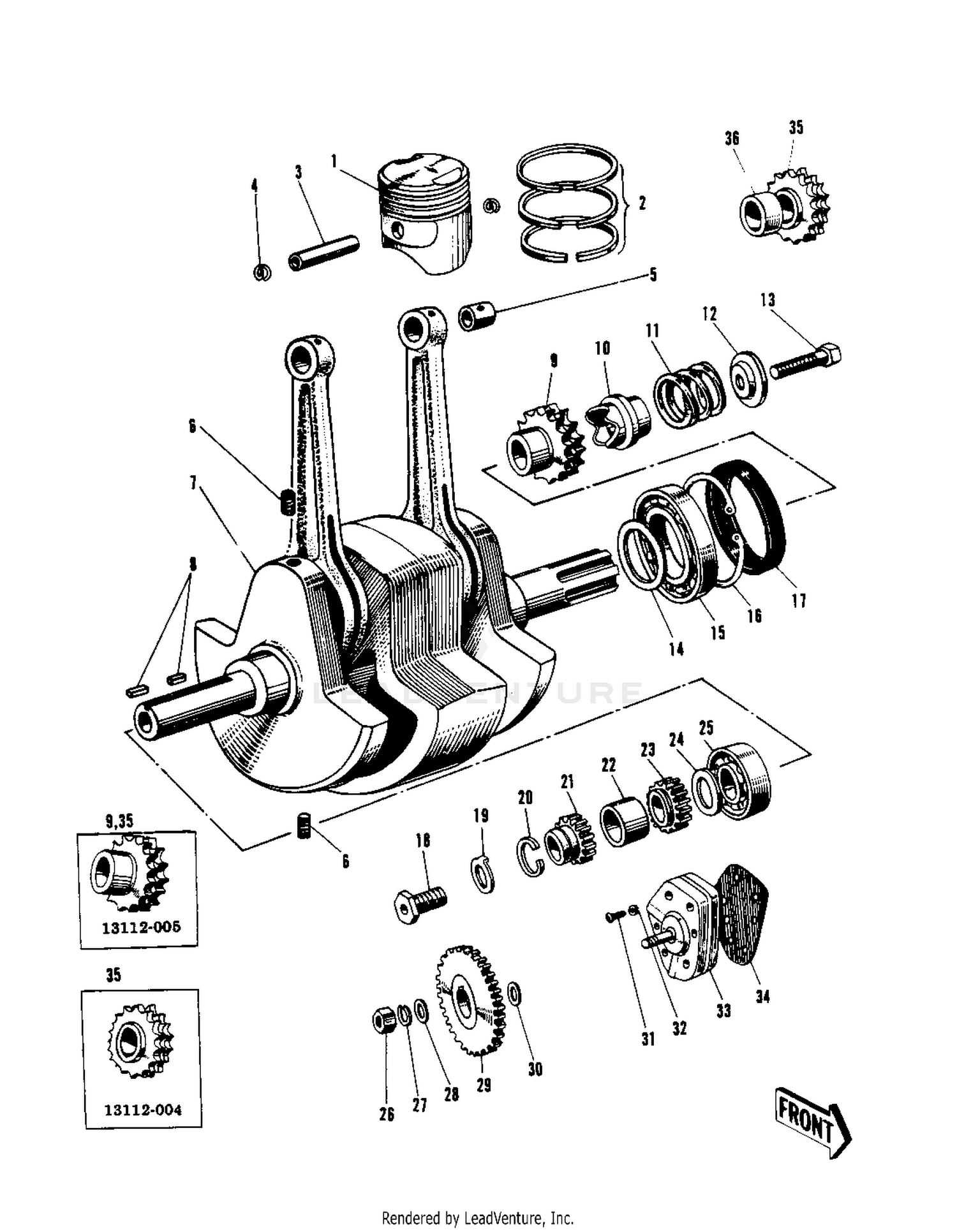

| Ref | Part Number | Description |
|---|
| 1 |
13001-025 |
PISTON STD Price: $62.58 |
| 2 |
13008-018 |
RING SET STD Price: $124.45 |
| 3 |
13002-012 |
PIN-PISTON Price: $44.74 |
| 4 |
92036-008 |
RING-SNAP,PISTON PIN Price: $0.49 |
| 5 |
92028-030 |
BUSH SMALL END Price: $4.83 |
| 7 |
13036-020 |
CRANK - CONROD ASSY Price: $1,172.82 |
| 8 |
291H0816 |
SCREW SLOTTED Price: $1.69 |
| 8 |
511A0514 |
WOODRUFF KEY Price: $7.25 |
| 9 |
13112-005 |
CRANKSHAFT SPROCKET Price: $110.34 |
| 10 |
13049-001 |
ABSORBER CHAIN SHOCK Price: $138.33 |
| 11 |
92081-031 |
SPRING SHOCK ABSORBAR Price: $17.21 |
| 12 |
13047-001 |
SEAT SPRING Price: $26.08 |
| 13 |
113G1635 |
BOLT HEX HEAD 16X35 Price: $22.15 |
| 15 |
92045-015 |
BEARING ROLLER BL307N Price: $48.39 |
| 16 |
481J8000 |
CIRCLIP-TYPE-C,80MM Price: $7.58 |
| 17 |
92050-019 |
OIL SEAL SC458010 Price: $31.56 |
| 18 |
92001-041 |
BOLT OIL PUMP PINION Price: $4.49 |
| 19 |
92030-002 |
WASHER OIL PUMP LOCK Price: $0.89 |
| 20 |
16139-001 |
RING OIL SEAL Price: $15.80 |
| 21 |
16084-006 |
PINION OIL PUMP Price: $53.20 |
| 22 |
92026-032 |
SPACER OL PUMP PINION Price: $7.16 |
| 23 |
12062-001 |
PINION CRANKSHAFT Price: $65.48 |
| 24 |
92027-040 |
UNAVAILABLE IN PRICE BOOK Price: $11.96 |
| 25 |
92045-015 |
BEARING ROLLER BL307N Price: $48.39 |
| 27 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 28 |
317BA0800 |
NUT-HEX-SMALL,8MM This part replaces 317G0800. Price: $1.67 |
| 28 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 29 |
16085-007 |
GEAR OIL PUMP Price: $102.59 |
| 31 |
220AA0655 |
SCREW-PAN HEAD,6X55 This part replaces 220B0655. Price: $4.12 |
| 32 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 33 |
16082-012 |
OIL PUMP ASSY Price: $275.56 |
| 34 |
16094-005 |
GASKET OIL PUMP Price: $1.30 |
| 35 |
13112-005 |
CRANKSHAFT SPROCKET Price: $110.34 |
