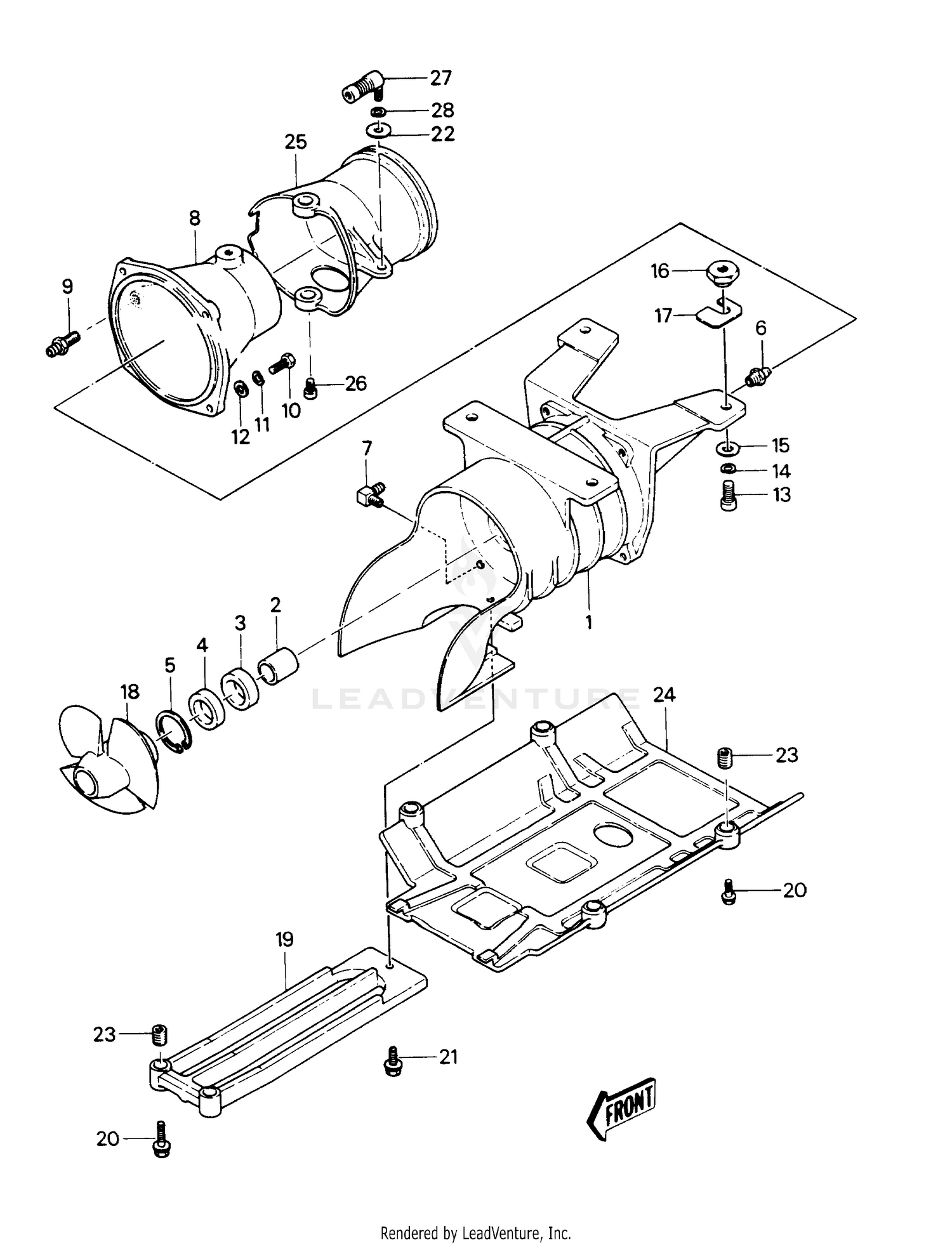

| Ref | Part Number | Description |
|---|
| 1 |
59336-3701 |
CASE-PUMP Price: $775.04 |
| 2 |
92028-503 |
BUSH Price: $16.28 |
| 3 |
92050-502 |
SEAL-OIL,SCY20368 Price: $27.73 |
| 4 |
92050-503 |
SEAL-OIL,SC20367 Price: $24.91 |
| 5 |
92036-502 |
RING,SNAP Price: $10.18 |
| 6 |
92005-501 |
NIPPLE,GREASE Price: $7.58 |
| 7 |
52014-3708 |
ELBOW This part replaces 52014-3002. Price: $34.82 |
| 8 |
59136-3001 |
NOZZLE,PUMP Price: $111.30 |
| 10 |
110R0825 |
BOLT,8X25 Price: $3.39 |
| 11 |
461S0800 |
WASHER-SPRING,8MM Price: $0.65 |
| 12 |
92022-562 |
WASHER Price: $2.41 |
| 13 |
120R1025 |
BOLT-SOCKET This part replaces 92003-529. Price: $9.17 |
| 14 |
461S1000 |
WASHER-SPRING,10MM Price: $1.03 |
| 15 |
411S1000 |
WASHER-PLAIN,10MM Price: $2.67 |
| 16 |
92015-3005 |
NUT,10M/M Price: $21.16 |
| 17 |
92025-3701 |
SHIM,T=0.3 Price: $1.70 |
| 17A |
92025-3702 |
SHIM.T=0.5 Price: $3.20 |
| 17B |
92025-3703 |
SHIM,T=1.0 Price: $5.17 |
| 17C |
92025-3704 |
SHIM,T=1.5MM Price: $6.65 |
| 18 |
59256-504 |
IMPELLER Price: $155.53 |
| 19 |
59366-3001 |
GRATE Price: $68.21 |
| 20 |
156R0625 |
BOLT-WP,6X25 Price: $4.76 |
| 21A |
92002-3763 |
BOLT,6X12 Price: $4.69 |
| 22 |
92022-567 |
WASHER Price: $2.67 |
| 24A |
59446-3711 |
COVER-JET PUMP Price: $137.82 |
| 25 |
59476-3702 |
NOZZLE-STRG Price: $60.14 |
| 26 |
92001-3701 |
BOLT,SOCKET,6X11 Price: $14.67 |
| 27 |
59266-3707 |
JOINT-BALL This part replaces 59266-3701. Price: $66.16 |
| 28 |
461S0600 |
WASHER-SPRING,6MM Price: $1.07 |
