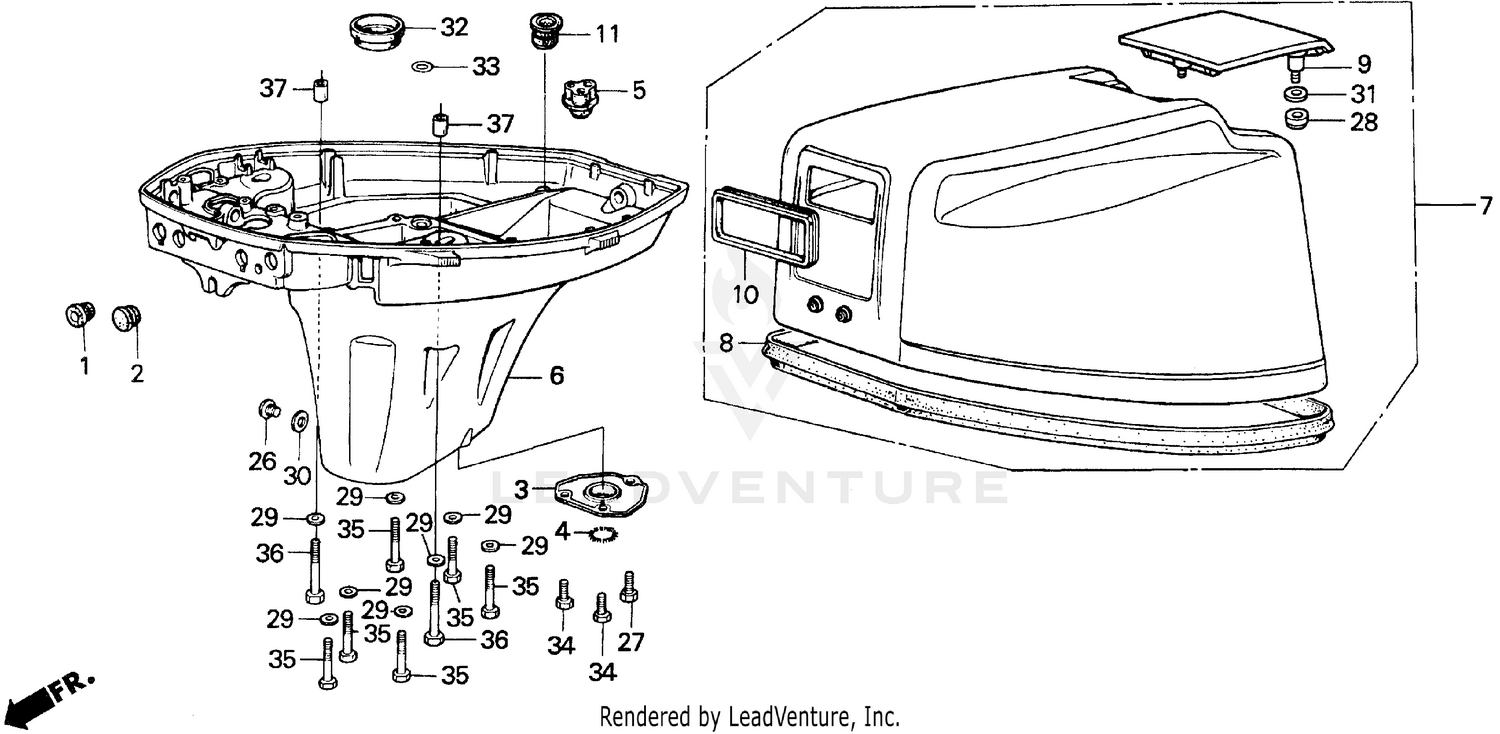

| Ref | Part Number | Description |
|---|
| 1 |
17914-881-300 |
GROMMET A, WIRE Price: $4.00 |
| 2 |
17918-881-000 |
GROMMET C, OIL CASE Price: $3.12 |
| 2 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 3 |
18221-881-000 |
PLATE, EX. Price: $17.96 |
| 3 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 4 |
18222-881-000 |
BAND, EX. SEAL Price: $7.12 |
| 4 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 5 |
19262-921-000 |
MANIFOLD, TUBE Price: $9.38 |
| 5 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 6 |
40101-881-A04ZB |
CASE, OIL *NH282MU* (OYSTER SILVER METALLIC-U) Price: $958.62 |
| 6 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 7 |
63100-881-842ZB |
SEE PART DETAILS - PRI; COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U) Price: $457.36 |
| 7 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 8 |
420845000 |
Circlip Price: $1.09 |
| 8 |
63102-881-840 |
SEAL, ENGINE COVER Price: $50.76 |
| 9 |
420431941 |
Exhaust Gasket Price: $12.99 |
| 9 |
63105-881-840 |
HANDLE, TILT Price: $29.16 |
| 10 |
420873511 |
Exhaust Flange Price: $57.99 |
| 10 |
63109-881-310 |
SEE PART DETAILS - PRI; SEAL, RECOIL Price: $7.20 |
| 11 |
420940586 |
Hex Screw M8 X 16 Price: $19.49 |
| 11 |
82873-881-010 |
GROMMET, WATER CHECK Price: $5.26 |
| 12 |
420827521 |
Washer Price: $5.59 |
| 13 |
420650928 |
O-Ring Price: $3.29 |
| 14 |
420622063 |
Cooling Water Pipe Price: $46.99 |
| 15 |
420241081 |
Allen Screw M6 X 10 Price: $2.19 |
| 17 |
420827521 |
Washer Price: $5.59 |
| 18 |
420440693 |
Collar Screw M8 X 35 Price: $4.89 |
| 19 |
420641188 |
Torx Flange Screw M8 X 35 This part replaces 420440867. Price: $7.59 |
| 20 |
420664636 |
Solenoid Valve Price: $134.99 |
| 21 |
420201233 |
Hose 390MM This part replaces 420201231. Price: $21.99 |
| 22 |
420201233 |
Hose 390MM This part replaces 420201232. Price: $21.99 |
| 23 |
420201233 |
Hose 390MM Price: $21.99 |
| 24 |
420853133 |
Clamp 9.2-10.9 mm Price: $3.49 |
| 25 |
420851468 |
Gear Clamp Price: $6.09 |
| 26 |
420922161 |
Connector Tube Price: $5.09 |
| 26 |
90105-ZVA-000 |
SEE PART DETAILS - PRI; BOLT, OIL CHECK This part replaces 90105-ZV4-650. Price: $5.76 |
| 27 |
420851101 |
Cable Clamp Price: $2.59 |
| 27 |
90106-881-000 |
BOLT, HEX. (6X12) Price: $2.92 |
| 28 |
420440162 |
Torx Flange Screw M6 X 16 Price: $3.29 |
| 28 |
90304-881-010 |
SEE PART DETAILS - PRI; NUT (6MM) Price: $6.12 |
| 29 |
90506-ZV4-000 |
WASHER, PLAIN (6MM) Use up to Frame SN 4800342. Price: $3.36 |
| 30 |
90507-921-000 |
WASHER, NYLON (8MM) Price: $1.22 |
| 31 |
90512-921-010 |
SEE PART DETAILS - PRI; WASHER (6MM) Price: $1.46 |
| 32 |
91255-881-004 |
SEE PART DETAILS - PRI; SEAL, COUPLING (25X40X22) Price: $18.78 |
| 33 |
91305-PE2-003 |
O-RING (9.8X1.9) Price: $3.32 |
| 34 |
92101-06012-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X12) Price: $2.58 |
| 35 |
90111-881-000 |
BOLT, HEX. (6X32) Price: $3.98 |
| 36 |
90120-ZV4-010 |
SEE PART DETAILS - PRI; BOLT, HEX. (6X40) Price: $3.34 |
