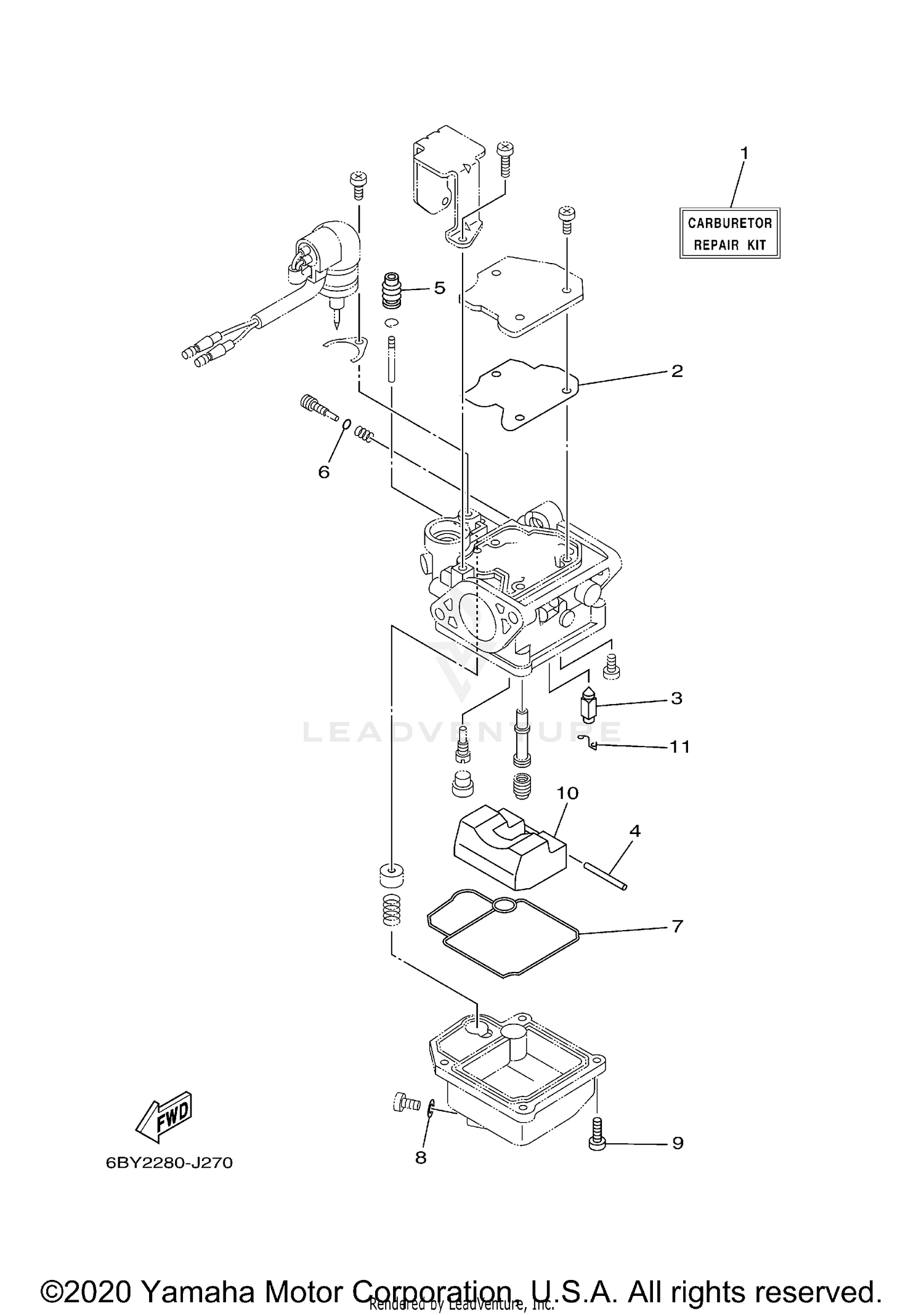

REPAIR KIT 2
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6AH-W0093-02-00 | CARBURETOR REPAIR KIT This part replaces 6AH-W0093-01-00. Price: $100.15 |
| 2 | 65W-14126-10-00 | GASKET Price: $25.35 |
| 3 | 6AH-14546-00-00 | VALVE, NEEDLE Price: $41.85 |
| 4 | 6H4-14548-00-00 | PIN, FLOAT ARM Price: $9.65 |
| 5 | 65W-14373-02-00 | COVER, PLUNGER CAP Price: $64.20 |
| 6 | 67F-14398-10-00 | O-RING Price: $5.55 |
| 7 | 6AH-14384-00-00 | GASKET, FLOAT CHAMBER Price: $36.40 |
| 8 | 6G1-14398-00-00 | WASHER This part replaces 65W-14398-00-00. Price: $3.95 |
| 9 | 97980-04114-00 | SCREW, WITH WASHER Price: $5.35 |
| 10 | 6AH-14985-00-00 | FLOAT Price: $45.40 |
