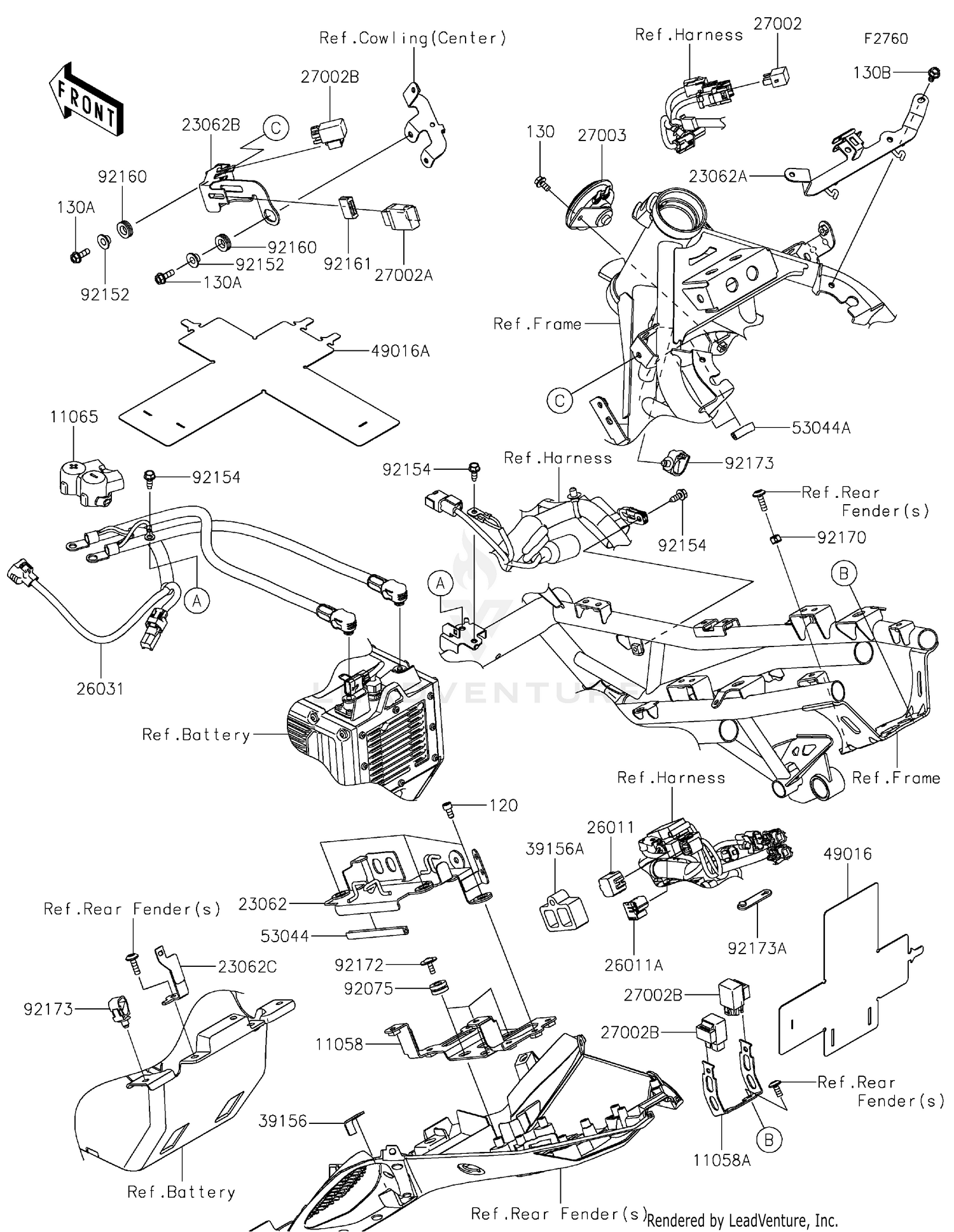

| Ref | Part Number | Description |
|---|
| 120 |
120CA0612 |
BOLT-SOCKET,6X12 Price: $1.71 |
| 130 |
130BA0612 |
BOLT-FLANGED,6X12 Price: $1.72 |
| 130A |
130BA0618 |
BOLT-FLANGED,6X18 Price: $1.54 |
| 11058 |
11058-0640 |
BRACKET,ECU,LWR Price: $49.31 |
| 11058A |
11058-0658 |
BRACKET,RELAY,RR Price: $8.21 |
| 11065 |
11065-1447 |
CAP,MOTOR Price: $9.45 |
| 23062 |
23062-1376 |
BRACKET-COMP,ECU,UPP Price: $60.59 |
| 23062A |
23062-1377 |
BRACKET-COMP,CONNECTOR Price: $39.36 |
| 23062B |
23062-1483 |
BRACKET-COMP,RELAY Price: $16.91 |
| 23062C |
23062-1504 |
BRACKET-COMP,FUSE BOX Price: $6.18 |
| 26011 |
26011-0275 |
WIRE-LEAD,CONNECTOR COVER Price: $14.13 |
| 26011A |
26011-1901 |
WIRE-LEAD,DIAG CONNECTOR Price: $37.01 |
| 26031 |
26031-4285 |
HARNESS,48V BATTERY Price: $541.11 |
| 27002 |
27002-0033 |
RELAY-ASSY Price: $49.39 |
| 27002A |
27002-0069 |
RELAY-ASSY,SIGNAL LAMP This part replaces 27002-0062. Price: $74.99 |
| 27002B |
27002-1062 |
RELAY-ASSY Price: $45.39 |
| 27003 |
27003-0124 |
HORN Price: $81.16 |
| 39156 |
39156-2170 |
PAD Price: $0.63 |
| 39156A |
39156-2685 |
PAD,DIAGNOSTIC CONNECTOR Price: $7.64 |
| 49016 |
49016-0719 |
COVER-SEAL,RR RELAY Price: $8.36 |
| 49016A |
49016-0720 |
COVER-SEAL,FR RELAY Price: $10.80 |
| 53044 |
53044-0564 |
TRIM Price: $7.24 |
| 53044A |
53044-0632 |
TRIM,9X6.5X30 Price: $4.45 |
| 92075 |
92075-1880 |
DAMPER Price: $1.63 |
| 92152 |
92152-2770 |
COLLAR Price: $3.86 |
| 92154 |
92154-0551 |
BOLT,FLANGED,6X16 Price: $1.63 |
| 92160 |
92160-1278 |
DAMPER Price: $4.39 |
| 92161 |
92161-1443 |
DAMPER,15X25X8.5 Price: $1.94 |
| 92170 |
92170-1514 |
CLAMP Price: $4.31 |
| 92172 |
92172-1215 |
SCREW,5X16 Price: $0.90 |
| 92173 |
92173-0861 |
CLAMP Price: $3.02 |
| 92173A |
92173-2198 |
CLAMP Price: $1.48 |
