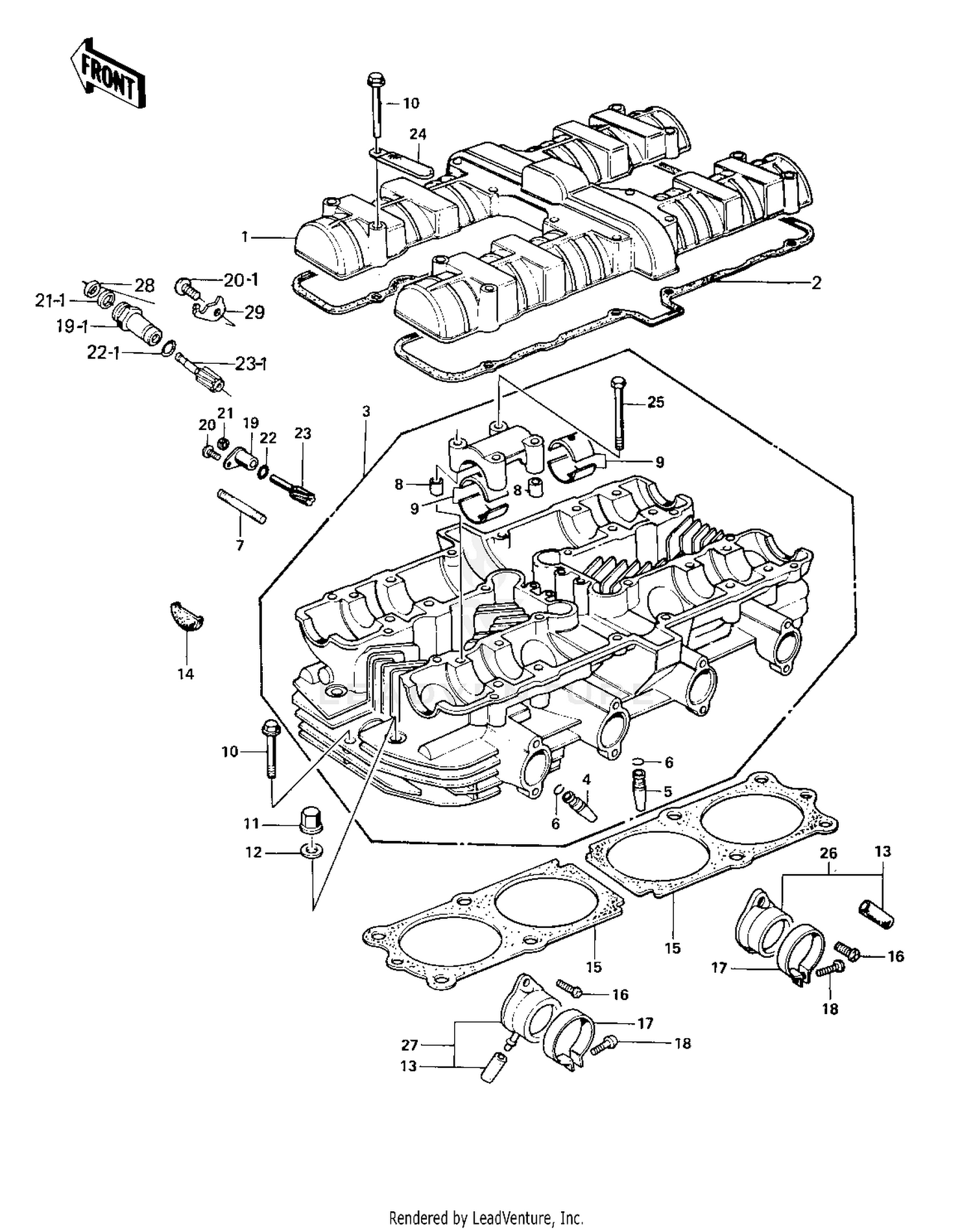

| Ref | Part Number | Description |
|---|
| 1 |
11022-012-2H |
COVER,CYLINDER HEAD Price: $301.97 |
| 2 |
11060-1605 |
GASKET,CYL HEAD COVER This part replaces 11023-006. Price: $151.05 |
| 3 |
11002-016-2H |
CYLINDER HEAD,BARREL Price: $1,224.53 |
| 4 |
12013-001 |
GUIDE,INLET VALVE Price: $79.70 |
| 5 |
12013-002 |
GUIDE, EXHAUST VALVE Price: $91.49 |
| 6 |
92036-023 |
RING-SNAP,VALVE GUIDE Price: $0.48 |
| 7 |
92004-049 |
STUD,6X46 Price: $10.26 |
| 8 |
92042-007 |
PIN,DOWEL,6.3X8X14 Price: $5.70 |
| 9 |
13034-030 |
BUSHING,CAMSHAFT Price: $22.16 |
| 10 |
92003-092 |
BOLT,HEX HEAD,6X45 Price: $7.58 |
| 11 |
92015-076 |
NUT,CYLINDER HEAD Price: $13.08 |
| 12 |
92022-215 |
WASHER,PLAIN,10MM Price: $9.64 |
| 13 |
92068-006 |
PLUG,12X25 Price: $4.26 |
| 14 |
92066-0946 |
PLUG,CAMSHAFT,14X7 This part replaces 92066-017. Price: $25.35 |
| 15 |
11004-1296 |
GASKET, HEAD,CYLINDER This part replaces 11004-066. Price: $169.67 |
| 16 |
220B0618 |
SCREW-PAN-CROS,6X18 Price: $3.35 |
| 17 |
92037-077 |
CLAMP,HOLDER Price: $12.00 |
| 18 |
220AA0520 |
SCREW-PAN-CROS This part replaces 220B0520. Price: $0.68 |
| 21 |
92050-075 |
OIL SEAL Price: $11.39 |
| 22 |
670B1510 |
O RING,9.8X1.9 Price: $4.31 |
| 23 |
13223-011 |
GEAR,TACHOMETER,10T Price: $94.86 |
| 24 |
21126-008 |
CLAMP,WIRING HARNESS Price: $4.73 |
| 25 |
92003-092 |
BOLT,HEX HEAD,6X45 Price: $7.58 |
| 26 |
16065-028 |
HOLDER-R.H CARBRETOR Price: $100.50 |
| 27 |
16065-029 |
HOLDER,CARBURETOR,L.H Price: $100.50 |
