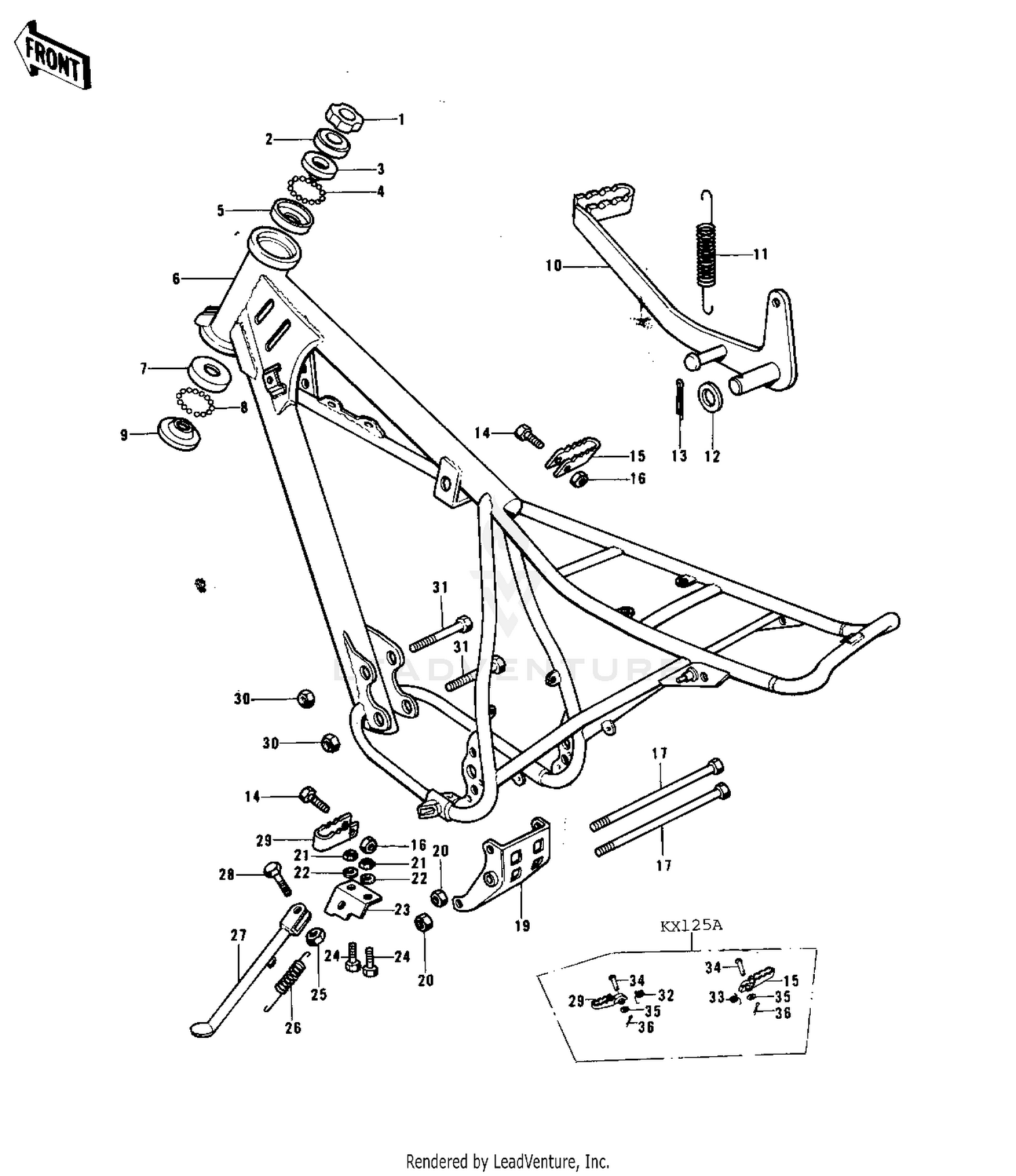

| Ref | Part Number | Description |
|---|
| 1 |
92090-022 |
NUT,STEERING STEM Price: $21.61 |
| 2 |
46098-012 |
CAP,STEERING STEM Price: $8.16 |
| 3 |
92048-0035 |
RACE,STEERING STEM BEARING This part replaces 92047-014. Price: $12.72 |
| 4 |
600A0600 |
BALL-STEEL,3/16 Price: $1.07 |
| 5 |
92048-0038 |
RACE,STEERING STEM BEARING This part replaces 92048-009. Price: $14.10 |
| 6 |
32002-091 |
FRAME Price: $398.42 |
| 7 |
92048-005 |
RACE STEERING BEARING Price: $12.37 |
| 8 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 9 |
92047-010 |
CONE STERNG BERG LOW Price: $10.51 |
| 10 |
43001-063 |
PEDAL,BRAKE Price: $56.52 |
| 11 |
43005-026 |
SPRING,BRAKE PEDAL Price: $5.27 |
| 12 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 13 |
550AA2520 |
PIN-COTTER,2.5X20 This part replaces 550D2520. Price: $1.36 |
| 14 |
110B0838 |
BOLT,HEX HEAD,8X38 Price: $1.91 |
| 15 |
34028-018 |
BAR,R.H FOOTREST Price: $24.96 |
| 16 |
92019-018 |
NUT,8MM Price: $7.24 |
| 17 |
92001-1248 |
BOLT,HEX HEAD,10X125 Price: $9.48 |
| 19 |
32117-007 |
BRACKET,ENGINE Price: $20.76 |
| 20 |
92019-016 |
NUT,10MM Price: $4.79 |
| 21 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 22 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 23 |
34008-009 |
BRACKET,SIDE STAND Price: $21.41 |
| 24 |
115B0822 |
BOLT-SMALL-UPSET,8X22 Price: $4.25 |
| 25 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 26 |
34025-004 |
SPRING-SIDE STAND Price: $7.22 |
| 27 |
34024-045 |
STAND-SIDE Price: $29.13 |
| 28 |
113G1028 |
BOLT,10X28 Price: $9.34 |
| 29 |
34028-017 |
BAR,L.H FOOTREST Price: $16.12 |
| 30 |
92019-018 |
NUT,8MM Price: $7.24 |
| 31 |
110B0865 |
BOLT,HEX HEAD,8X65 Price: $0.95 |
