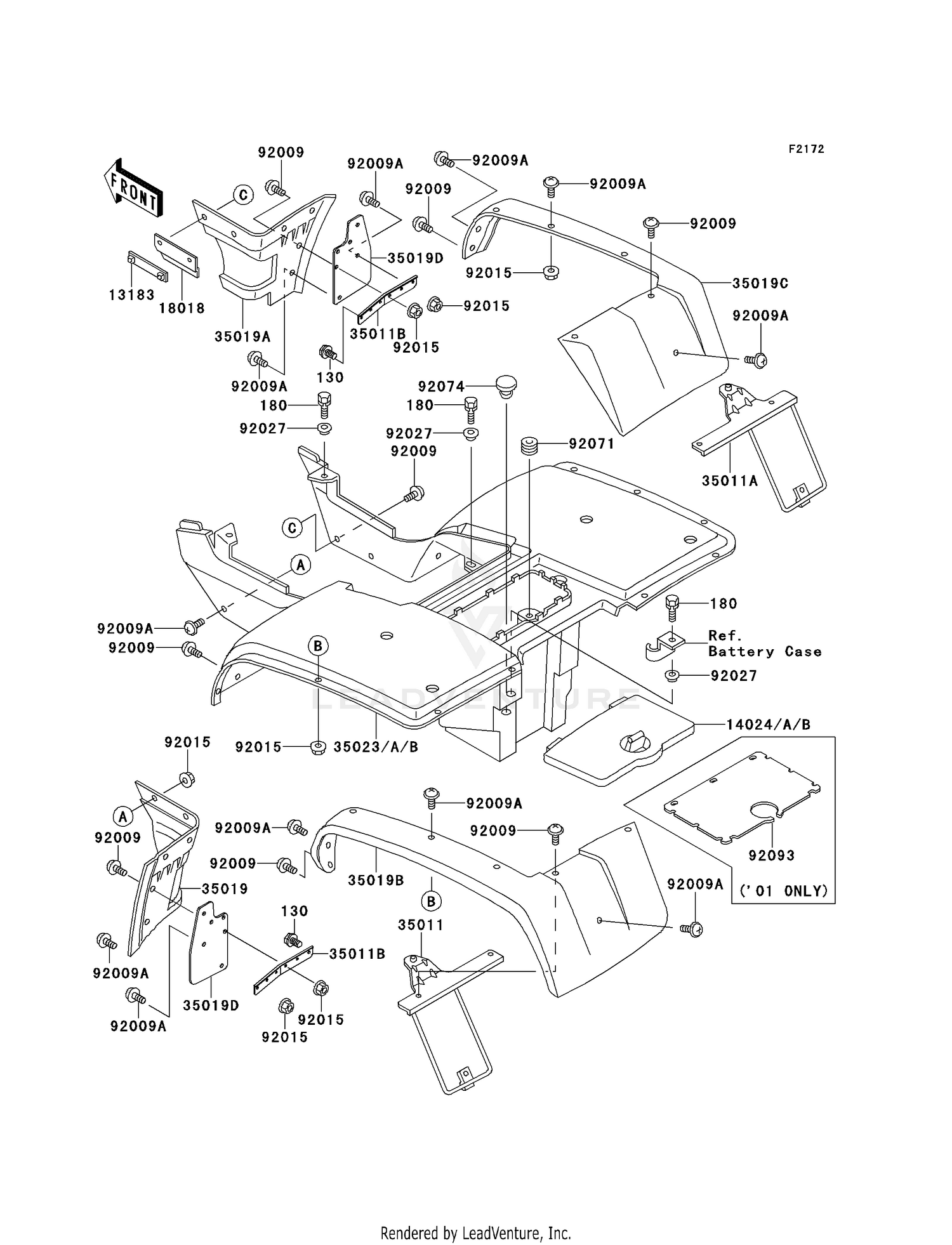

| Ref | Part Number | Description |
|---|
| 130 |
130C0610 |
BOLT-FLANGED,6X10,BLACK Price: $2.86 |
| 180 |
180AA0618 |
BOLT-UPSET-WS This part replaces 180D0618. Price: $0.89 |
| 13183 |
13183-1035 |
PLATE,HEAT GUARD Price: $8.76 |
| 14024 |
14024-1095-59 |
CVR,RR FNDR,GREEN Price: $29.68 |
| 14024B |
14024-1095-6L |
COVER-FRAME-RED Price: $37.62 |
| 18018 |
18018-1071 |
PLATE-HEAT GUARD Price: $22.06 |
| 35011 |
35011-1418 |
STAY,REAR FLAP,LH Price: $47.92 |
| 35011A |
35011-1419 |
STAY,REAR FLAP,RH Price: $47.92 |
| 35011B |
35011-1435 |
STAY,FLAP,OUTER Price: $35.24 |
| 35019 |
35019-1225 |
FLAP,FR,LH Price: $31.01 |
| 35019A |
35019-1226 |
FLAP,FR,RH Price: $31.01 |
| 35019B |
35019-1227 |
FLAP,RR,LH Price: $39.84 |
| 35019C |
35019-1228 |
FLAP,RR,RH Price: $39.84 |
| 35019D |
35019-1255 |
FLAP,FR,OUTER Price: $11.99 |
| 35023 |
35023-1139-59 |
FENDER-REAR,GREEN Price: $224.56 |
| 35023B |
35023-1139-6L |
FENDER-REAR-RED Price: $229.18 |
| 92009 |
92172-0002 |
SCREW,6X18 This part replaces 92009-1181. Price: $2.80 |
| 92009A |
92009-1662 |
SCREW,6X14 This part replaces 92009-1288. Price: $3.92 |
| 92015 |
92015-1675 |
NUT,LOCK,FLANGED,6MM Price: $4.31 |
| 92027 |
92027-1933 |
COLLAR,L=5.6 Price: $5.78 |
| 92071 |
92071-1131 |
GROMMET Price: $7.77 |
