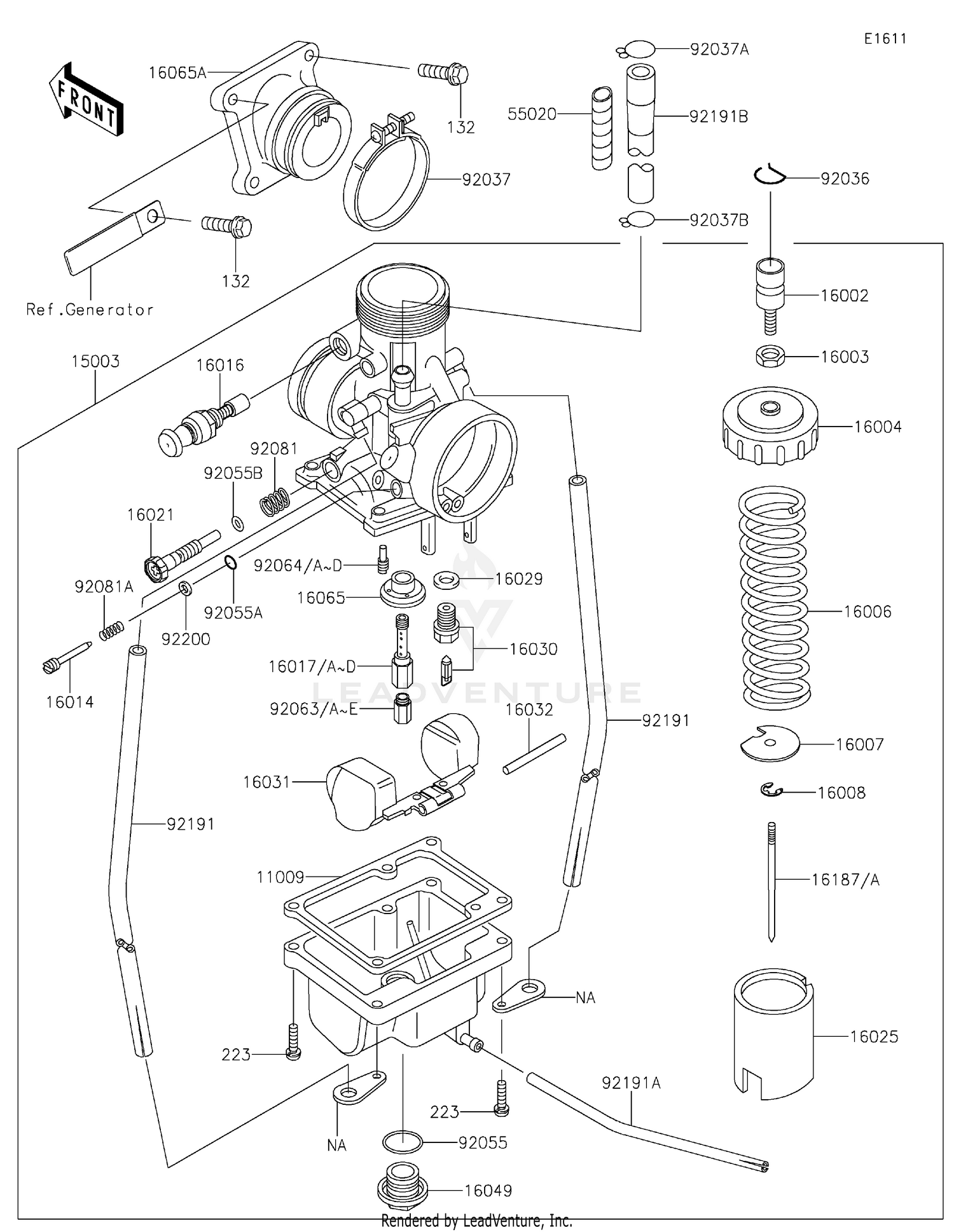

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1147 |
GASKET,FLOAT CHAMBER Price: $10.19 |
| 15003 |
15003-1669 |
CARBURETOR-ASSY Price: $188.07 |
| 16002 |
16002-011 |
ADJUSTER-CABLE Price: $13.97 |
| 16003 |
16003-006 |
NUT,ADJUST LOCK Price: $7.34 |
| 16004 |
16004-025 |
CAP-CHAMBER Price: $33.28 |
| 16006 |
16006-023 |
SPRING,THROTTLE VALVE Price: $15.02 |
| 16007 |
16007-023 |
SEAT-SPRING,THROTTLE VALVE Price: $10.19 |
| 16008 |
16008-1010 |
CLAMP Price: $3.26 |
| 16014 |
16014-1116 |
SCREW-PILOT AIR Price: $15.24 |
| 16016 |
16016-0008 |
PLUNGER,STARTER Price: $43.32 |
| 16017 |
16017-1412 |
JET-NEEDLE,N-8 Price: $43.99 |
| 16017A |
16017-1413 |
JET-NEEDLE,O-0 Price: $43.99 |
| 16017B |
16017-1414 |
JET-NEEDLE,O-2 Price: $43.99 |
| 16017C |
16017-1415 |
JET-NEEDLE,O-4 Price: $43.99 |
| 16017D |
16017-1418 |
JET-NEEDLE,N-6 Price: $43.99 |
| 16021 |
16021-1224 |
SCREW-THROTTLE STOP Price: $16.14 |
| 16025 |
16025-1040 |
VALVE-THROTTLE,CA1.5 Price: $48.29 |
| 16029 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 16030 |
16030-1095 |
VALVE-FLOAT,#2.5 Price: $49.99 |
| 16031 |
16031-1005 |
FLOAT Price: $53.59 |
| 16032 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 16049 |
16049-1001 |
COVER-MAIN JET Price: $26.99 |
| 16065 |
16065-1020 |
HOLDER,JET NEEDLE Price: $18.54 |
| 16065A |
16065-1366 |
HOLDER-CARBURETOR Price: $65.62 |
| 16187 |
16187-1226 |
NEEDLE-JET,5GSP68 Price: $35.93 |
| 16187A |
16187-1227 |
NEEDLE-JET,5GSP69 Price: $35.93 |
| 55020 |
55020-1787 |
GUARD,FUEL TUBE Price: $4.96 |
| 92036 |
92036-018 |
RING-SNAP Price: $3.89 |
| 92037 |
92037-1305 |
CLAMP Price: $9.06 |
| 92037A |
92037-147 |
CLAMP,TUBE Price: $7.34 |
| 92037B |
92037-1712 |
CLAMP Price: $5.00 |
| 92055 |
92055-1061 |
RING-O,MAIN JET COVER Price: $8.58 |
| 92055A |
92055-1658 |
RING-O,AIR SCREW Price: $6.00 |
