| Ref | Part Number | Description |
|---|
| 2 |
404104200 |
Gasket Price: $6.49 |
| 3 |
404102700 |
Pilot Jet 35 Price: $5.29 |
| 4 |
Not |
Available As Spare Part - Baffle |
| 5 |
404107300 |
O-Ring Price: $9.29 |
| 6 |
404107400 |
Drain Plug Screw Price: $23.99 |
| 7 |
404147500 |
Needle Valve 1.2 Price: $43.99 |
| 8 |
404107600 |
Float Lever Price: $23.99 |
| 9 |
404103300 |
Lever Pin Price: $6.39 |
| 10 |
404101600 |
Seat Washer Price: $3.39 |
| 11 |
404128400 |
Piston Valve 2.5 Price: $127.49 |
| 12 |
404103700 |
Cover Price: $32.99 |
| 13 |
404121300 |
Screw With Washer Price: $4.29 |
| 14 |
404161987 |
Packing Price: $15.99 |
| 15 |
404122100 |
Cover Price: $19.49 |
| 16 |
404154800 |
Spring Price: $24.99 |
| 18 |
404101800 |
Spring Price: $4.39 |
| 19 |
404102300 |
Air Screw Price: $14.99 |
| 20 |
404162130 |
Plunger Ass'y Price: $32.99 |
| 21 |
404162131 |
Spring Price: $17.49 |
| 23 |
404153400 |
Nipple Price: $12.49 |
| 24 |
404156600 |
Cap Price: $16.99 |
| 25 |
404101700 |
Spring Price: $4.29 |
| 26 |
404109700 |
Idle Speed Screw Price: $19.49 |
| 27 |
404162133 |
FLOAT BODY - Call your local BRP dealership Price: $67.99 |
| 28 |
404162124 |
Needle Jet Price: $42.99 |
| 30 |
Not |
Available As Spare Part - Baffle Ring |
| 31 |
404162113 |
Needle, J8-6BFY46 Price: $32.99 |
| 32 |
Not |
Available As Spare Part - Float |
| 33 |
404105800 |
Cap Price: $6.49 |
| 34 |
404152400 |
E-Ring Price: $7.39 |
| 35 |
404117000 |
Packing Price: $3.39 |
| 36 |
404102000 |
Screw With Lock Washer Price: $3.29 |
| 130 |
130BA1030 |
BOLT-FLANGED,10X30 Price: $5.25 |
| 130A |
130BA1055 |
BOLT-FLANGED,10X55 Price: $2.31 |
| 130B |
130BB0818 |
BOLT-FLANGED,8X18 Price: $1.71 |

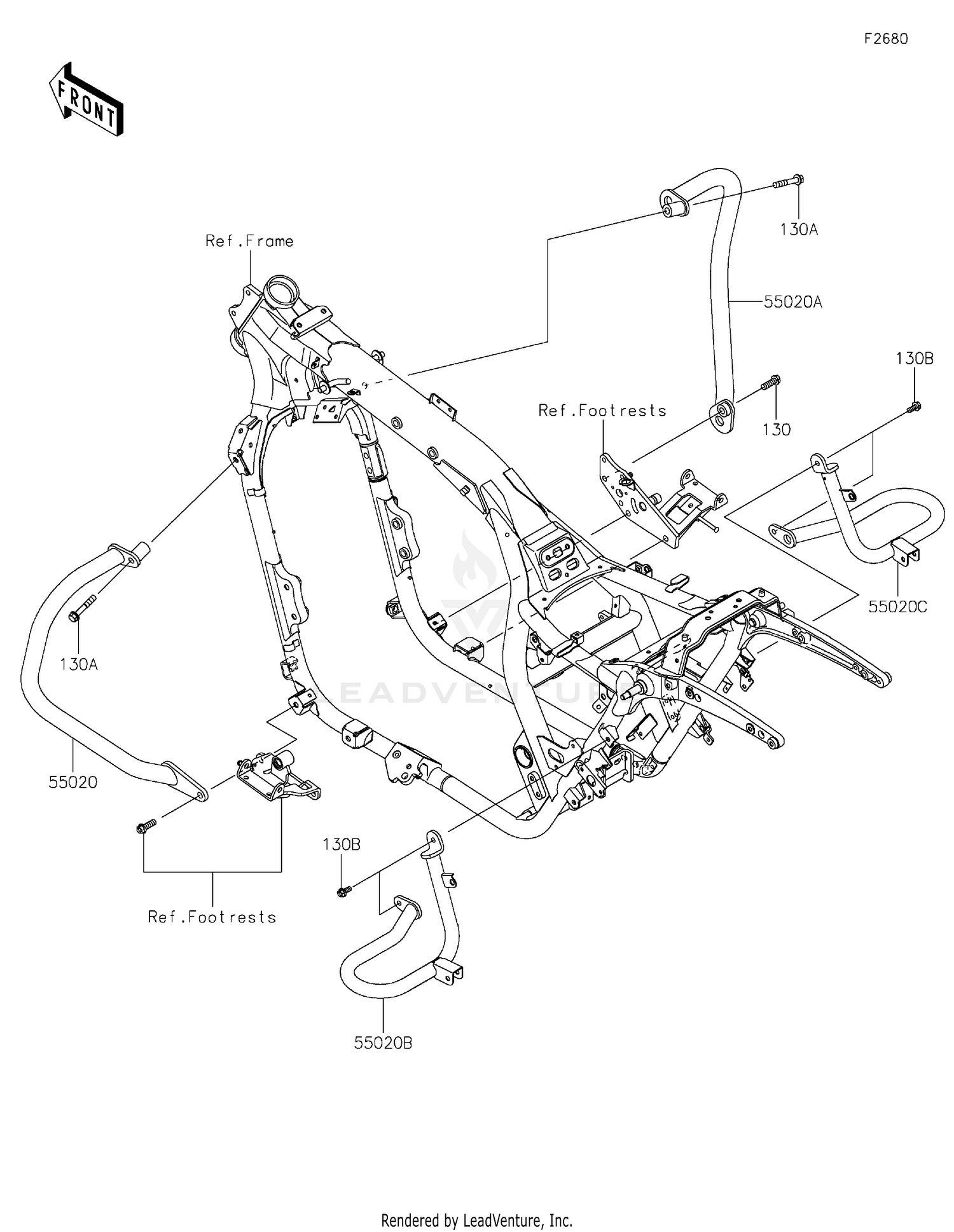

| 55020 |
55020-1894-18R |
GUARD,FR,LH,F.S.BLACK This part replaces 55020-1894. Price: $177.75 |
| 55020A |
55020-1895-18R |
GUARD,FR,RH,F.S.BLACK This part replaces 55020-1895. Price: $177.75 |
| 55020B |
55020-1896-18R |
GUARD,RR,LH,F.S.BLACK This part replaces 55020-1896. Price: $162.96 |
