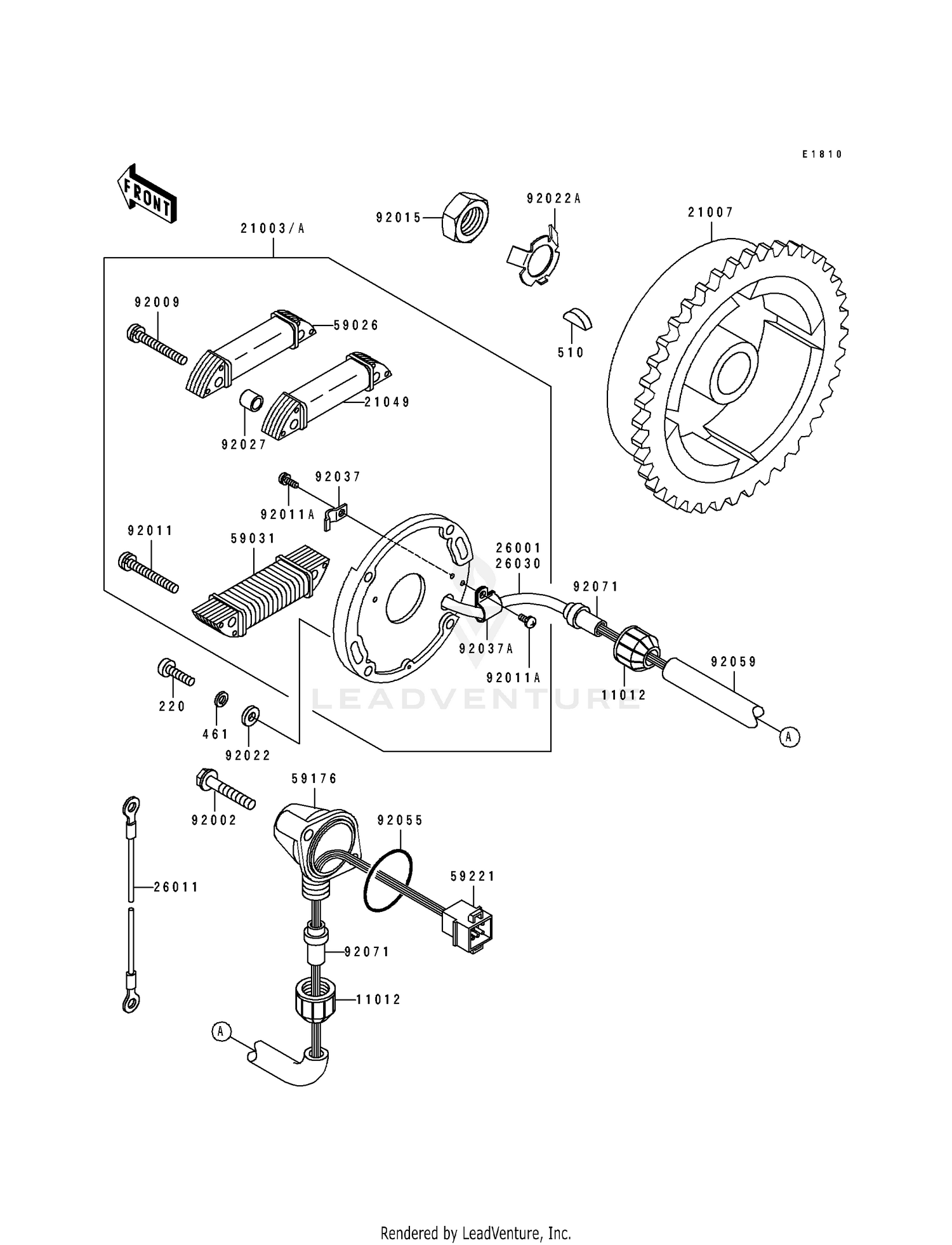

| Ref | Part Number | Description |
|---|
| 220 |
220AA0520 |
SCREW-PAN-CROS This part replaces 220B0520. Price: $0.68 |
| 461 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 11012 |
11012-3012 |
CAP Price: $9.11 |
| 21003 |
21003-3012 |
STATOR ASSY Price: $612.44 |
| 21007 |
21007-3707 |
ROTOR Price: $713.36 |
| 21049 |
21049-3007 |
COIL,EXCITING Price: $126.07 |
| 26001 |
26001-3006 |
HARNESS,MAGNETO Price: $97.28 |
| 26011 |
26011-3006 |
WIRE-LEAD,L=300 Price: $5.94 |
| 59026 |
59026-3008 |
COIL,PULSING Price: $126.07 |
| 59031 |
59031-3002 |
COIL,CHARGE Price: $127.23 |
| 59176 |
59176-517-YR |
CAP-MAGNETO HARNESS Price: $42.68 |
| 59221 |
59221-506 |
CONNECTOR,CORD Price: $11.17 |
| 92002 |
92002-3715 |
BOLT,6X35 Price: $6.61 |
| 92009 |
92009-3008 |
SCREW,5X38 Price: $5.30 |
| 92011 |
92011-530 |
SCREW 5X34 Price: $2.22 |
| 92011A |
92011-560 |
SCREW 4X8 Price: $1.73 |
| 92015 |
92015-535 |
NUT,20M/M Price: $7.64 |
| 92022 |
92022-544 |
WASHER Price: $2.67 |
| 92022A |
92022-569 |
WASHER,LOCK,20M/M Price: $4.50 |
| 92027 |
92027-3014 |
COLLAR,COIL Price: $8.43 |
| 92037 |
92037-520 |
CLAMP Price: $4.97 |
| 92037A |
92037-547 |
CLAMP Price: $4.04 |
| 92055 |
92055-520 |
RING-O,35.2X1.9 Price: $5.31 |
| 92059 |
92059-3717 |
TUBE,10X12X630 This part replaces 92059-3032. Price: $20.47 |
| 92071 |
92071-3001 |
GROMMET Price: $4.18 |
