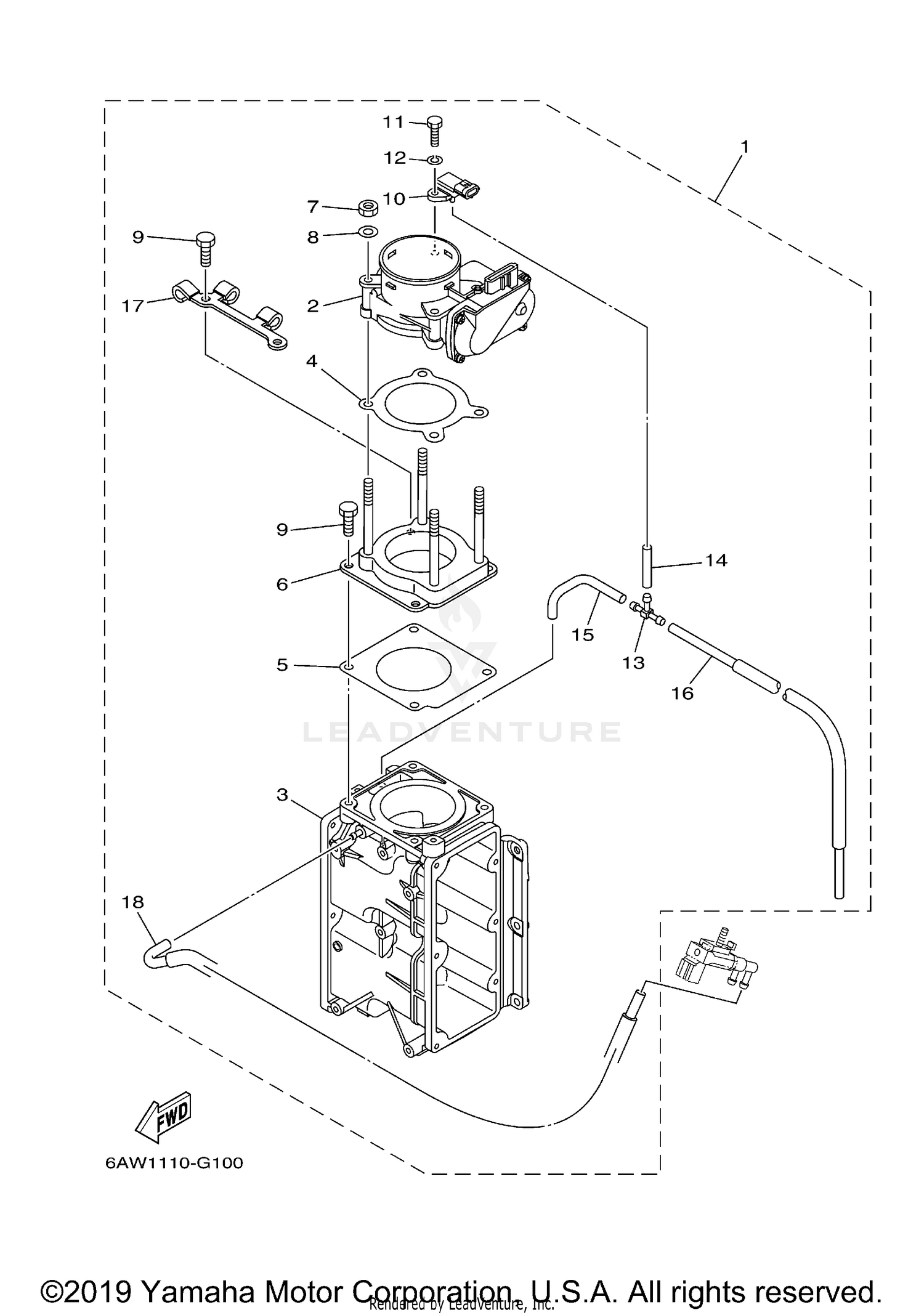

THROTTLE BODY ASSY 1
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6AW-13750-05-00 | THROTTLE BODY ASSY This part replaces 6AW-13750-03-00. Price: $1,834.85 |
| 2 | 6AW-13751-01-00 | BODY, THROTTLE 1 Price: $1,870.35 |
| 3 | 6AW-13711-01-00 | MIXING BODY Price: $460.15 |
| 4 | 6AW-13556-00-00 | GASKET, MANIFOLD Price: $113.15 |
| 5 | 6AW-13557-00-00 | GASKET Price: $253.65 |
| 6 | 6AW-14360-00-00 | THROTTLE DAMPER ASSY Price: $568.10 |
| 7 | 6P2-13588-01-00 | NUT This part replaces 6P2-13588-00-00. Price: $31.99 |
| 8 | 6P2-13578-00-00 | WASHER Price: $7.05 |
| 9 | 6P2-14496-00-00 | BOLT Price: $24.65 |
| 10 | 6P2-82380-00-00 | SENSOR, PRESSURE Price: $326.45 |
| 11 | 6P2-13573-00-00 | BOLT 1 Price: $6.75 |
| 12 | 68V-14356-00-00 | WASHER, SPRING Price: $5.55 |
| 13 | 4N0-14251-00-00 | NIPPLE Price: $11.49 |
| 14 | 5JW-24311-00-00 | PIPE, FUEL 1 Price: $5.99 |
| 15 | 6AW-82364-00-00 | HOSE 2 Price: $39.80 |
| 16 | 6AW-82365-00-00 | HOSE 3 Price: $43.15 |
| 17 | 6AW-11188-00-00 | CLIP, PIPE Price: $58.60 |
