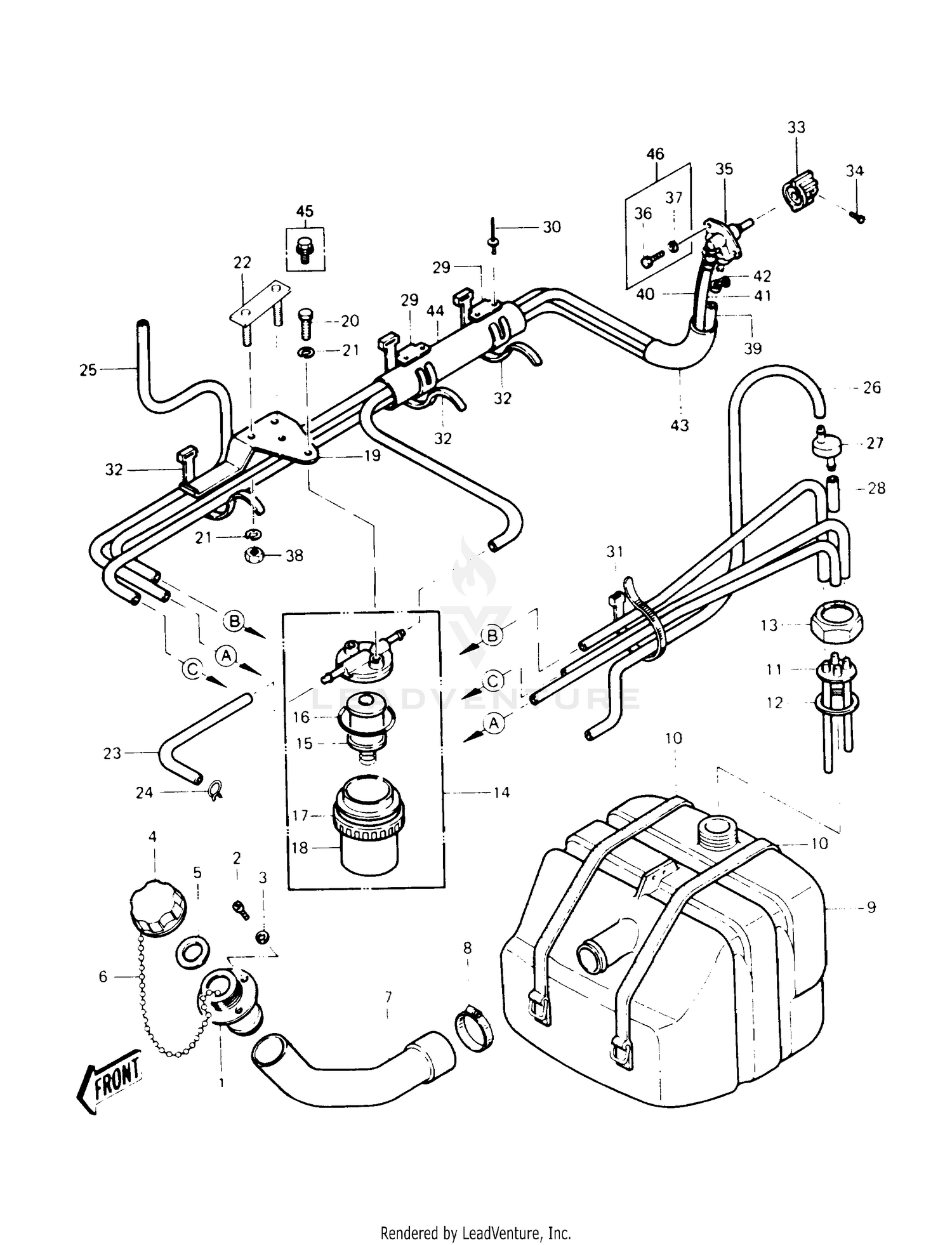

| Ref | Part Number | Description |
|---|
| 1 |
59231-3001 |
FILLER,FUEL TANK Price: $17.77 |
| 2 |
92011-562 |
SCREW 0.16X0.5 Price: $1.65 |
| 3 |
92022-563 |
WASHER Price: $1.13 |
| 4 |
51049-3001 |
CAP,FUEL TANK Price: $10.80 |
| 5 |
11009-3020 |
GASKET,TANK CAP Price: $13.51 |
| 6A |
92057-3704 |
CHAIN,COVER,L=100 Price: $19.34 |
| 7 |
92059-3020 |
HOSE,FUEL INLET,307.5 Price: $65.22 |
| 8 |
92037-3009 |
CLAMP Price: $3.70 |
| 9 |
51004-3702 |
TANK-FUEL Price: $119.30 |
| 10 |
92072-521 |
BAND,FUEL TANK Price: $37.43 |
| 11 |
31064-3001 |
OUTLET,FUEL Price: $35.43 |
| 12 |
92065-504 |
GASKET Price: $15.31 |
| 13 |
23072-501 |
RETAINER Price: $10.16 |
| 14 |
49019-3701 |
FILTER-FUEL Price: $102.53 |
| 15 |
14043-3701 |
FILTER,FUEL ELEMENT Price: $96.06 |
| 17 |
92015-3013 |
NUT-RING,60MM Price: $15.03 |
| 18 |
51036-3701 |
CUP,FUEL FILTER Price: $25.02 |
| 19 |
11047-3743 |
BRACKET,FUEL FILTER This part replaces 11034-3007. Price: $24.43 |
| 21 |
461S0600 |
WASHER-SPRING,6MM Price: $1.07 |
| 22 |
11034-3701 |
BRACKET Price: $15.47 |
| 23 |
92059-3011 |
TUBE,6X10X200 Price: $11.53 |
| 24 |
92037-1173 |
CLAMP This part replaces 92037-3024. Price: $3.49 |
| 25 |
92059-3012 |
TUBE,6X10X760 Price: $11.18 |
| 26 |
92059-3007 |
TUBE,6X10X960 This part replaces 92059-3025. Price: $19.70 |
| 27 |
49057-0002 |
VALVE-RELIEF This part replaces 49057-3001. Price: $64.85 |
| 28 |
92059-3026 |
TUBE,FUEL,5.8X12.2X55 Price: $4.28 |
| 29 |
92037-3005 |
CLAMP,TUBE Price: $5.04 |
| 30 |
92039-3702 |
RIVET Price: $0.99 |
| 31 |
92072-030 |
BAND,L=123 Price: $5.00 |
| 32 |
92072-031 |
BAND,L=149 Price: $5.00 |
| 33 |
92077-503 |
KNOB,COCK Price: $30.13 |
| 34A |
92009-3729 |
SCREW,4X8 Price: $6.61 |
| 35 |
51023-3705 |
TAP-ASSY,FUEL Price: $71.17 |
| 36 |
110R0512A |
BOLT,5X12 This part replaces 110R0512. Price: $1.36 |
| 37 |
411S0500 |
WASHER-PLAIN,5MM Price: $0.94 |
| 38 |
311R0600 |
NUT-HEX,6MM Price: $0.70 |
| 39 |
92059-552 |
TUBE,6X1300 This part replaces 92059-3005. Price: $26.77 |
| 40 |
92059-552 |
TUBE,6X1300 This part replaces 92059-3006. Price: $26.77 |
| 41 |
92059-3007 |
TUBE,6X10X960 Price: $19.70 |
| 42 |
92037-1173 |
CLAMP This part replaces 92037-551. Price: $3.49 |
| 43 |
92059-3008 |
TUBE,GUARD Price: $20.97 |
| 44 |
92191-3792 |
TUBE,22X24X200 This part replaces 92059-3018. Price: $30.46 |
