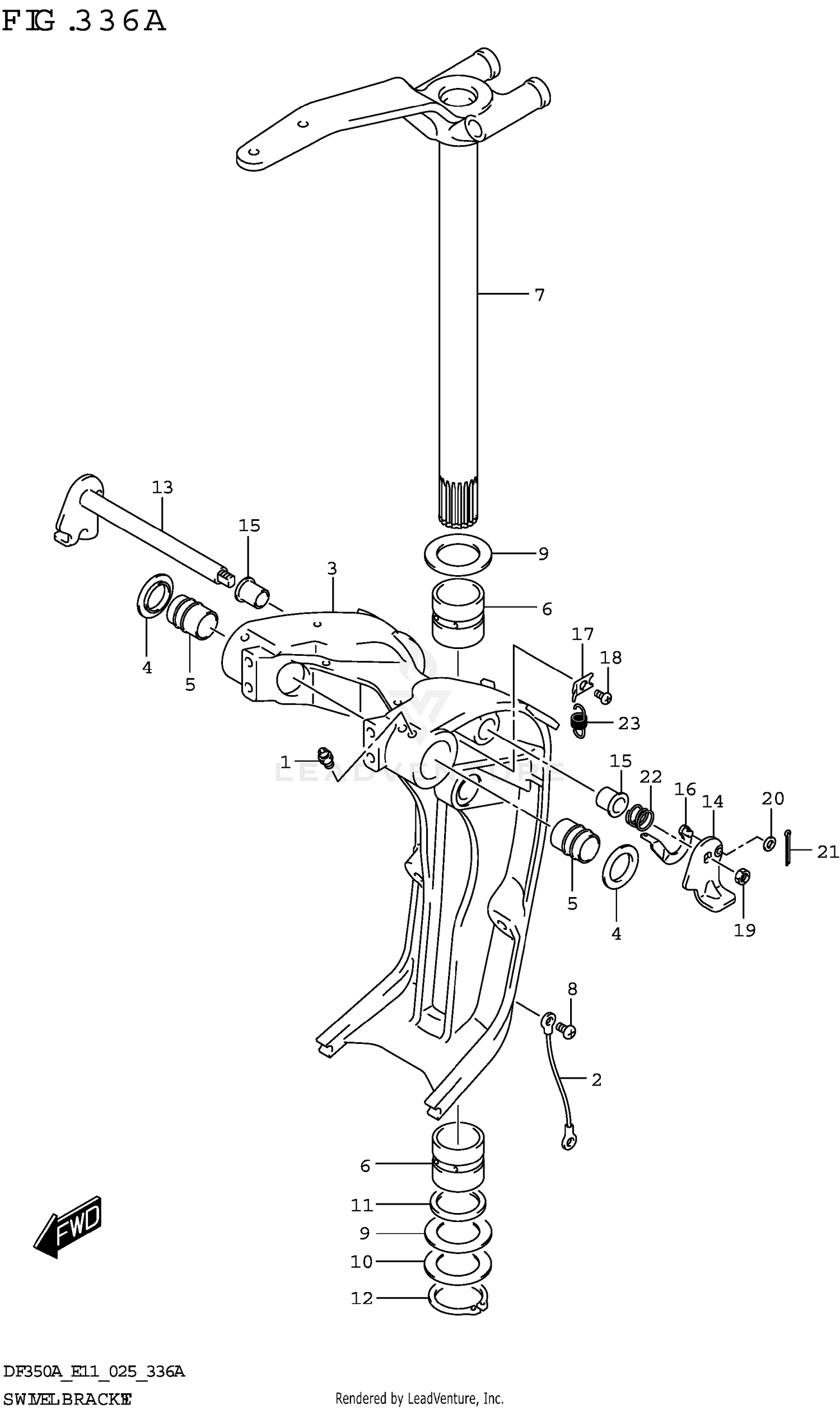

SWIVEL BRACKET (DF350A DF325A DF300B)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22511-99011 | NIPPLE GREASE Price: Call Us |
| 4 | 43114-93J00 | WASHER SWIVEL TO CLAMP BRKT Price: Call Us |
| 5 | 43211-93J11 | BUSH CLAMP SHAFT SWIVEL Price: Call Us |
| 6 | 43711-97E11 | BUSH STEERING Price: Call Us |
| 9 | 09160-39004 | WASHER (39.5X65.5X1) Price: Call Us |
| 10 | 09181-39001 | SHIM (39.5X64X0.30) Price: Call Us |
| 11 | 09282-39001 | OIL SEAL (39X51X5) Price: Call Us |
| 12 | 09380-38003 | CIRCLIP Price: Call Us |
| 13 | 41220-93J12 | LEVER TILT LOCK Price: Call Us |
| 15 | 41224-95E01 | BUSH TILT STOPPER ROD Price: Call Us |
| 16 | 41230-96J00 | LINK TILT LOCK LEVER Price: Call Us |
| 17 | 41233-95E10 | BRACKET TILT LOCK SPRING Price: Call Us |
| 19 | 09140-10032 | NUT (M10) Price: Call Us |
| 20 | 09160-06082 | WASHER (6.5X13X1.0) Price: Call Us |
| 21 | 09204-01006 | PIN Price: Call Us |
| 22 | 09440-19028 | SPRING Price: Call Us |
