| Ref | Part Number | Description |
|---|
| 120 |
120CA0640 |
BOLT-SOCKET,6X40 Price: $2.06 |
| 160 |
219704407 |
Tubing 10 MM 1000MM Long Price: $2.89 |
| 220 |
420924724 |
Hose Nipple Price: $15.49 |
| 300 |
403138815 |
Carburetor Kit, TM40-B418 Price: $1,203.99 |
| 310 |
512059835 |
Gemi Clamp Price: $11.49 |
| 500 |
515178473 |
Starter Price: $319.49 |
| 510 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip Price: $0.98 |
| 520 |
207583544 |
Hex Flange Screw M8 X 35, Scotch Grip Price: $4.49 |
| 530 |
250200008 |
Flat Washer With Teflon 8 mm Price: $3.89 |
| 540 |
515176500 |
Washer Price: $11.49 |
| 1000 |
512060478 |
Rear Support, PTO Price: $32.99 |
| 1010 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip Price: $0.98 |
| 1020 |
250200146 |
Conical Spring Washer M8 Price: $1.09 |
| 1030 |
250001016 |
Hex Flange Screw M8 X 25 S.Grip Price: $1.49 |
| 1200 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699. Price: $82.99 |
| 1210 |
250001016 |
Hex Flange Screw M8 X 25 S.Grip Price: $1.49 |
| 1220 |
250200146 |
Conical Spring Washer M8 Price: $1.09 |
| 1300 |
512060559 |
Rear Support, MAG Price: $32.99 |
| 1310 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip Price: $1.69 |
| 1320 |
250200146 |
Conical Spring Washer M8 Price: $1.09 |
| 1400 |
512060469 |
Front Support, MAG Price: $32.99 |
| 1410 |
250001016 |
Hex Flange Screw M8 X 25 S.Grip Price: $1.49 |
| 1420 |
250200146 |
Conical Spring Washer M8 Price: $1.09 |
| 1500 |
512060729 |
Rubber Mount Price: $67.99 |
| 1510 |
512061507 |
Vibration Damper This part replaces 512060387. Price: $44.99 |
| 1515 |
512060448 |
Rubber Mount Price: $52.99 |
| 1520 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip Price: $1.99 |
| 1540 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 1550 |
207683044 |
Hex. Flange Screw M8 X 30 Price: $1.69 |
| 1560 |
503183200 |
Yellow, Washer Price: $3.29 |
| 1570 |
250200146 |
Conical Spring Washer M8 Price: $1.09 |
| 1580 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 Price: $2.19 |
| 1700 |
512060627 |
Stopper Price: $10.99 |
| 1710 |
512060576 |
Stopper Support Price: $31.99 |
| 1720 |
207562544 |
Hex. Flange Screw M6 X 25 Price: $1.69 |
| 2580 |
512060196 |
Male Connector 1/8"-27 NPT Price: $10.99 |
| 2600 |
512060355 |
Hose Formed Price: $25.99 |
| 2610 |
219704408 |
Tubing 16 Mm 1000Mm Long Price: $7.69 |
| 2620 |
512059324 |
Valve 5/16” Price: $45.99 |
| 2630 |
512060353 |
Hose Formed Price: $24.49 |
| 2640 |
512060347 |
Hose Formed Price: $32.99 |
| 2650 |
219704408 |
Tubing 16 Mm 1000Mm Long Price: $7.69 |
| 2660 |
414655700 |
Spring Clamp Price: $0.74 |
| 2670 |
293650214 |
Norma Spring Clamp Price: $15.99 |
| 2675 |
293650125 |
Oetiker Clamp Price: $3.39 |
| 2690 |
293650046 |
Oetiker Clamp Price: $2.99 |
| 2950 |
572045500 |
T-Fitting Price: $7.69 |
| 2960 |
219704410 |
Polyurethane Hose 10000Mm Long Price: $57.99 |
| 2970 |
414580700 |
Male Connector Price: $4.19 |
| 3200 |
512060298 |
Solenoid Support Price: $14.49 |
| 3215 |
250000528 |
Torx Screw M5 X 20 Price: $2.19 |
| 3220 |
250000958 |
Panel Nut M5 X 0.8 Price: $4.29 |
| 3500 |
512060672 |
Choke Cable Price: $45.99 |
| 3510 |
512060671 |
Plastic Nut Price: $1.09 |
| 3600 |
512060886 |
Throttle Cable Price: $77.99 |
| 3640 |
234081100 |
Flat Washer 8 mm, Nylon Price: $1.49 |
| 3660 |
414753500 |
Circlip Price: $0.73 |
| 3690 |
414274500 |
Circlip Price: $0.92 |
| 3710 |
219704425 |
Tubing 6 Mm 3000Mm Long Price: $13.99 |
| 3730 |
512060313 |
Protector Price: $10.99 |
| 3740 |
219704407 |
Tubing 10 MM 1000MM Long Price: $2.89 |
| 3800 |
512060859 |
Upper Housing Price: $9.09 |
| 3810 |
512060860 |
Lower Housing Price: $17.49 |
| 3820 |
512061252 |
Throttle Handle Ass'y Price: $129.99 |
| 3840 |
732601143 |
Flange Screw Price: $4.19 |
| 4200 |
512059968 |
Ignition Coil Price: $52.99 |
| 4220 |
512060291 |
Cable Price: $52.99 |
| 4240 |
410914600 |
Plastic Clip, Spark Plug Wire Price: $5.69 |
| 4300 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip Price: $2.19 |
| 4330 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 4400 |
512060924 |
Coils Support Price: $10.99 |
| 4410 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 Price: $1.49 |
| 4600 |
512060680 |
Calibrated Module, 600 Price: $739.99 |
| 5000 |
415128524 |
Spark Plug NGK BR9ECS Price: $11.99 |
| 5300 |
512060136 |
Starter Grip Price: $15.49 |
| 5600 |
512060338 |
Noise Shield Price: $18.49 |
| 5610 |
512060341 |
Inner Noise Foam Price: $19.99 |
| 5620 |
512060342 |
Outer Noise Foam Price: $19.99 |
| 5630 |
512060574 |
Heat Shield Price: $7.99 |
| 5640 |
512060575 |
Heat Shield Price: $8.79 |
| 5650 |
250000528 |
Torx Screw M5 X 20 Price: $2.19 |

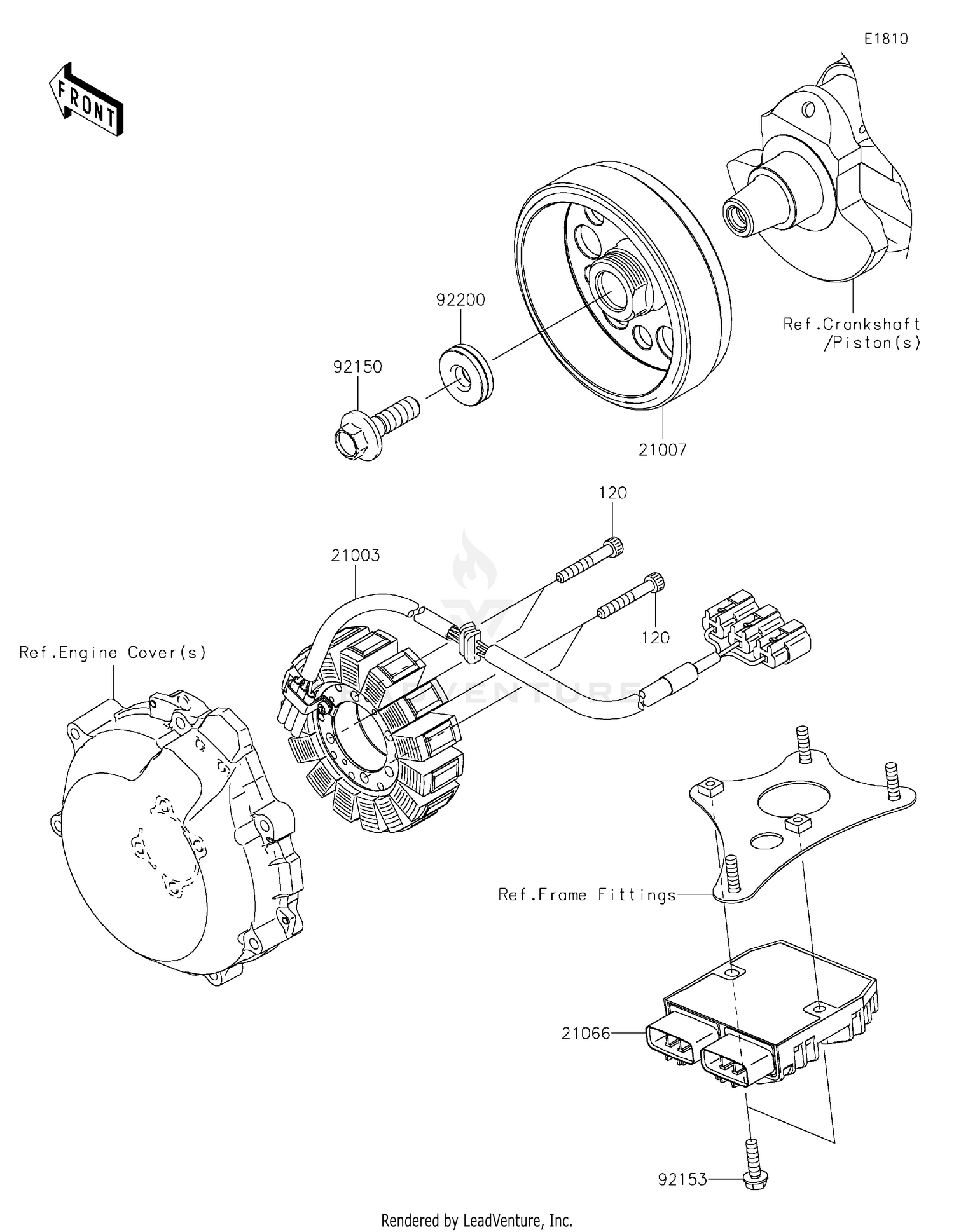

| 21003 |
21003-0149 |
STATOR Price: $396.63 |
| 21007 |
21007-0595 |
ROTOR Price: $599.75 |
| 21066 |
21066-0771 |
REGULATOR-VOLTAGE This part replaces 21066-0744. Price: $339.14 |
| 92150 |
92150-1717 |
BOLT,12X40 Price: $11.39 |
| 92153 |
92153-1598 |
BOLT,FLANGED,6X22 Price: $2.15 |
