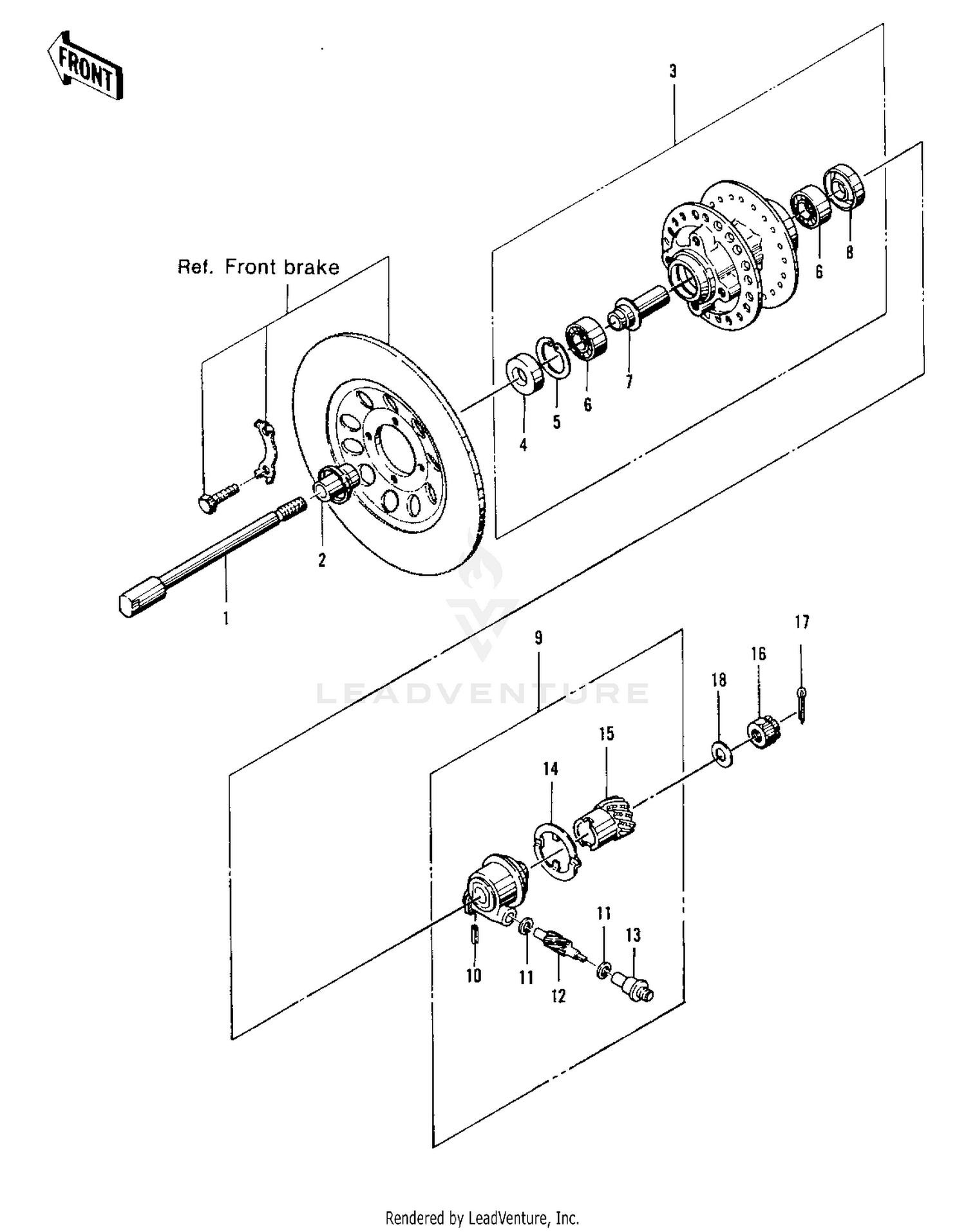

| Ref | Part Number | Description |
|---|
| 1 |
41068-045 |
AXLE,FRONT Price: $37.25 |
| 2 |
41069-028 |
COLLAR,FRONT AXLE Price: $11.93 |
| 3 |
41034-038-80 |
DRUM-ASSY,FR BRK,BUFF Price: $198.80 |
| 4 |
92052-011 |
OIL SEAL,WTC22427 Price: $25.75 |
| 5 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 6 |
601B6302 |
BEARING BALL #6302 Price: $9.05 |
| 7 |
41039-026 |
COLLAR,FR HUB BEARING Price: $10.45 |
| 8 |
92052-012 |
OIL SEAL,WTC40528 Price: $15.42 |
| 9 |
41078-006 |
GEAR BOX ASSY Price: $133.57 |
| 10 |
41082-001 |
PIN,SPRING Price: $3.92 |
| 11 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
| 12 |
41060-016 |
PINION,SPEEDOMETER Price: $30.54 |
| 13 |
41062-005 |
BUSH,SPEEDMETER CABLE Price: $19.48 |
| 14 |
41064-012 |
DRIVE,SPEED,GEAR Price: $12.05 |
| 15 |
41059-025 |
GEAR,SPEEDOMETER Price: $29.63 |
| 16 |
92015-1765 |
NUT,CASTLE,14MM This part replaces 42045-020. Price: $9.91 |
| 17 |
550AA3025 |
PIN-COTTER,3.0X25 This part replaces 550D3025. Price: $0.62 |
