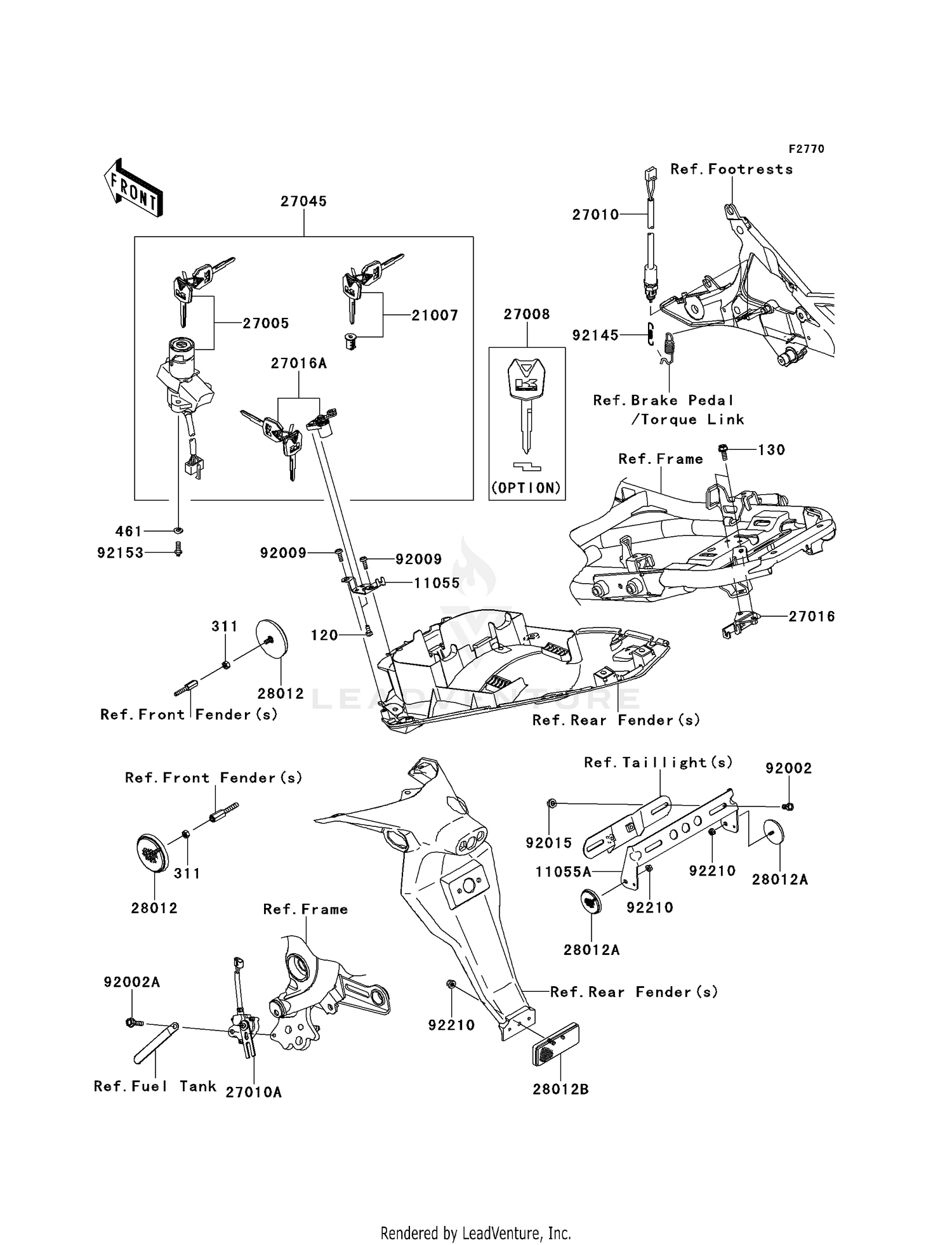

| Ref | Part Number | Description |
|---|
| 120 |
120CB0512 |
BOLT-SOCKET,5X12 Price: $1.76 |
| 130 |
130BA0612 |
BOLT-FLANGED,6X12 Price: $1.72 |
| 311 |
311AB0500 |
NUT-HEX,5MM Price: $0.43 |
| 461 |
461DA0600 |
WASHER-SPRING,6MM Price: $0.71 |
| 11055 |
11055-0590 |
BRACKET,SEAT LOCK Price: $10.53 |
| 11055A |
11055-1092 |
BRACKET,REFLECTOR Price: $33.36 |
| 21007 |
21007-5057 |
ROTOR,LOCK,TANK CAP Price: $84.71 |
| 27005 |
27005-5141 |
SWITCH-ASSY-IGNITION Price: $183.11 |
| 27010 |
27010-0095 |
SWITCH,REAR BRAKE Price: $28.74 |
| 27010A |
27010-0097 |
SWITCH,SIDE STAND Price: $117.39 |
| 27016 |
27016-1115 |
LOCK-ASSY,SEAT STRIKER Price: $28.59 |
| 27016A |
27016-5309 |
LOCK-ASSY,SEAT Price: $86.99 |
| 27045 |
27045-5360 |
SWITCH-ASSY Price: $417.31 |
| 28012 |
28012-0001 |
REFLECTOR-REFLEX,FR,SIDE Price: $24.14 |
| 28012A |
28012-0002 |
REFLECTOR-REFLEX Price: $24.14 |
| 28012B |
28012-1077 |
REFLECTOR-REFLEX Price: $23.25 |
| 92002 |
112BA0612 |
BOLT-UPSET This part replaces 92002-1132. Price: $1.49 |
| 92002A |
92002-1582 |
BOLT,FLANGED,6X25 Price: $4.69 |
| 92009 |
92009-3845 |
SCREW,6X14 Price: $1.06 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92145 |
92145-0724 |
SPRING,REAR BRAKE SWITCH Price: $3.35 |
| 92153 |
92153-0967 |
BOLT,TORX,6X16 Price: $2.61 |
