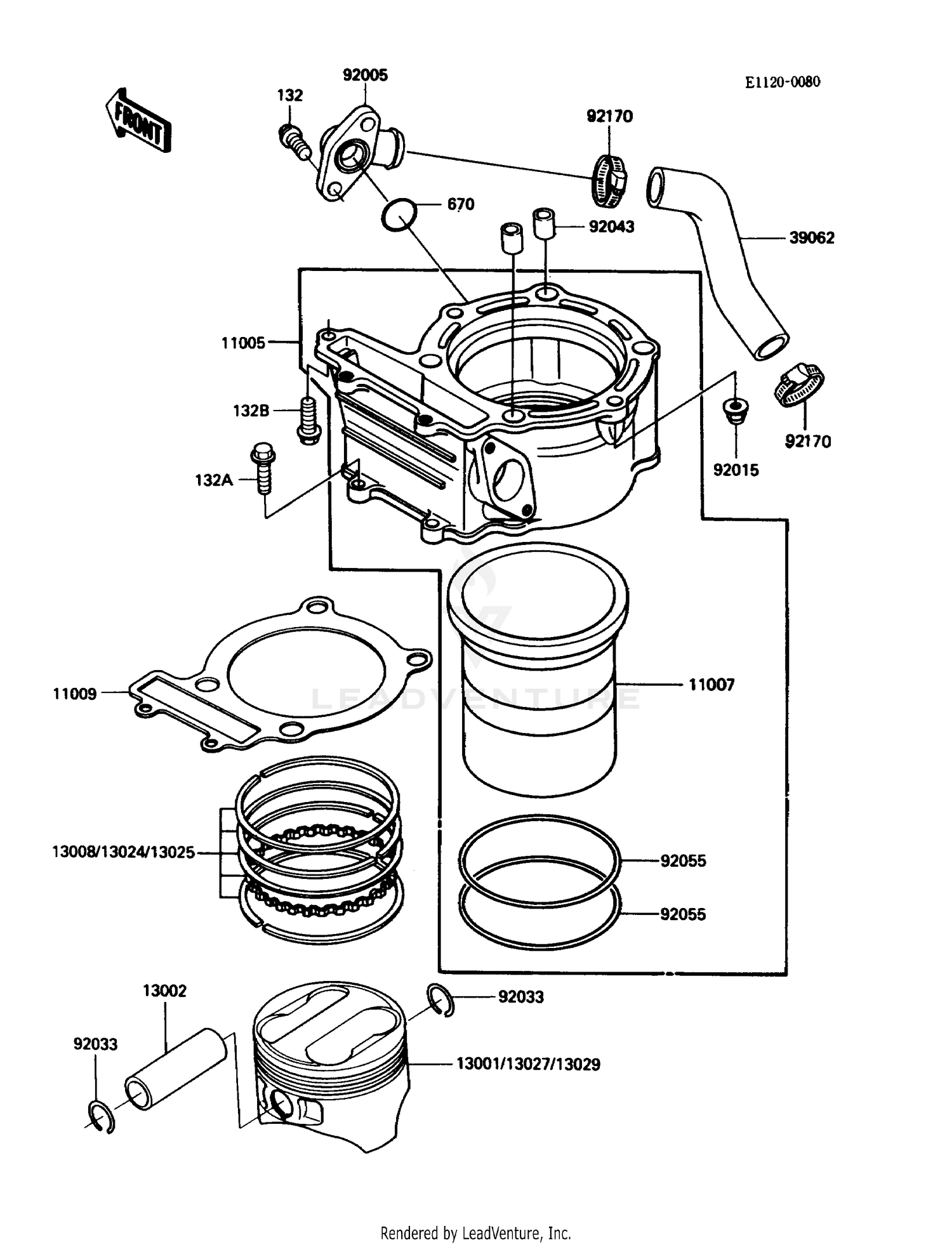

CYLINDER/PISTON(S)

CYLINDER/PISTON(S)

Parts (20)

RefPart NumberDescription
132 132BB0612 BOLT-FLANGED-SMALL,6X12 This part replaces 132J0612. Price: $2.06
132A 132BB0620 BOLT-FLANGED-SMALL,6X20 This part replaces 132J0620. Price: $3.99
132B 132BB0625 BOLT-FLANGED-SMALL,6X25 This part replaces 132J0625. Price: $2.80
11005 11005-1387 CYLINDER-ENGINE Price: $583.25
11007 11007-1070 LINER-CYLINDER Price: $145.44
11009 11060-1125 GASKET,CYLINDER BASE This part replaces 11009-1440. Price: $11.03
13001 13001-1280 PISTON-ENGINE,STD Price: $128.42
13002 13002-1023 PIN-PISTON,12X18X57.2 Price: $26.26
13008 13008-1066 RING-SET-PISTON,STD Price: $72.04
13024 13024-1068 RING-SET-PISTON LL,O/ Price: $84.94
13025 13025-1065 RING-SET-PISTON L,O/S Price: $49.12
13027 13027-1152 PISTON-ENGINE LL,O/S Price: $137.62
13029 13029-1175 PISTON-ENGINE L,O/S 0 Price: $94.80
39062 39062-1082 HOSE-COOLING Price: $23.81
92005 92005-0784 FITTING This part replaces 92005-1122. Price: $21.09
92015 92015-1174 NUT,CAP,8MM,BLACK Price: $5.00
92033 92033-1182 RING-SNAP Price: $4.35
92043 92043-4009 PIN,10.1X12X14 Price: $6.22
92055 92055-1247 RING-O Price: $13.07
92170 92170-1033 CLAMP,COOLING HOSE Price: $15.16
