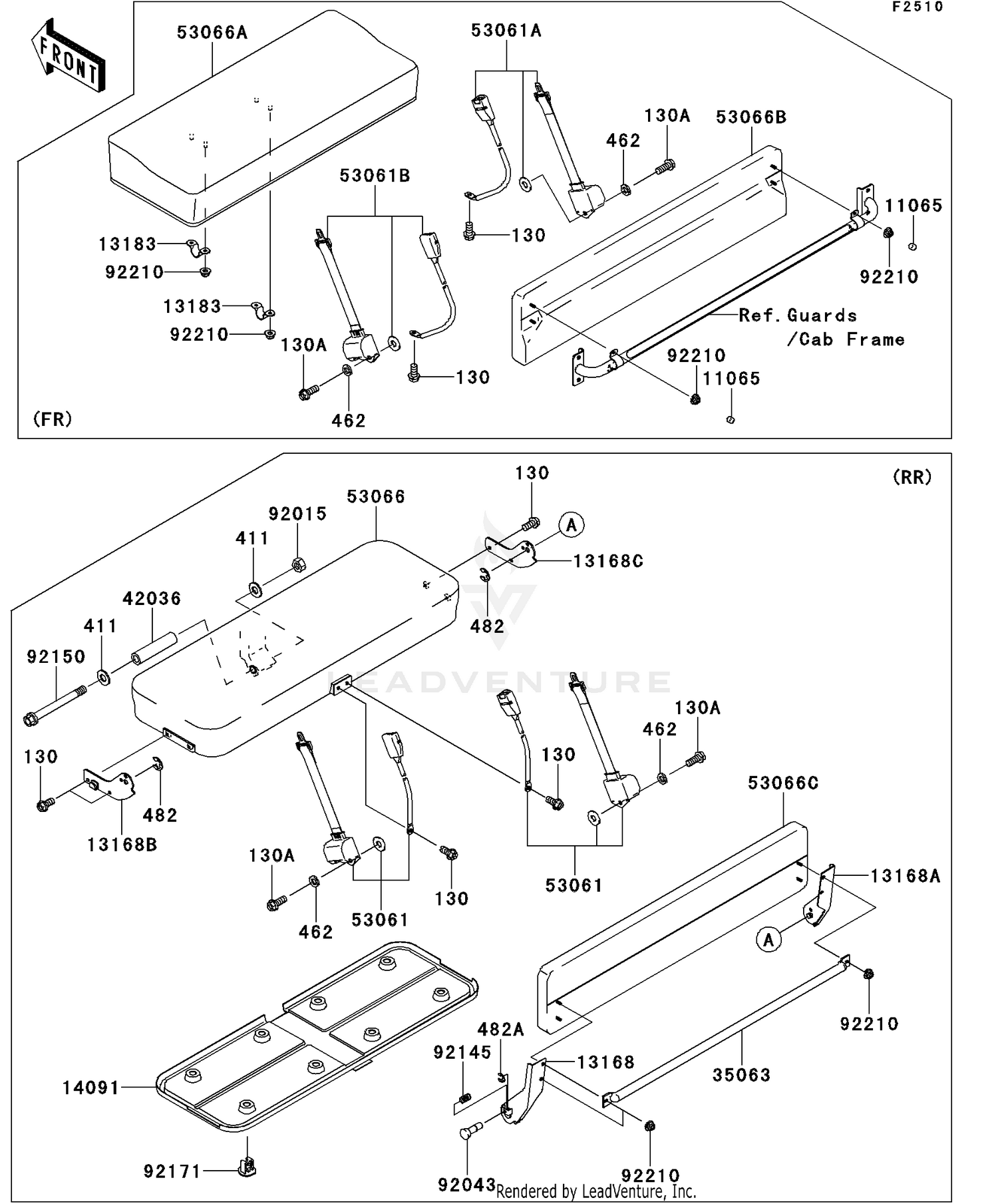

| Ref | Part Number | Description |
|---|
| 130 |
130BB1020 |
BOLT-FLANGED,10X20 Price: $5.96 |
| 130A |
130BB1025 |
BOLT-FLANGED,10X25 Price: $5.25 |
| 411 |
411AB1200 |
WASHER-PLAIN Price: $3.92 |
| 462 |
462DB1000 |
WASHER-SPRING,10MM Price: $2.81 |
| 482 |
482EA0200 |
CIRCLIP-TYPE-E,12MM Price: $2.30 |
| 482A |
482EA8000 |
CIRCLIP-TYPE-E,8MM Price: $0.68 |
| 11065 |
11065-7504 |
CAP Price: $1.50 |
| 13168 |
13168-7502 |
LEVER,SEAT,TOP,LH Price: $58.46 |
| 13168A |
13168-7503 |
LEVER,SEAT,TOP,RH Price: $58.46 |
| 13168B |
13168-7504 |
LEVER,SEAT,LWR,LH Price: $47.79 |
| 13168C |
13168-7505 |
LEVER,SEAT,LWR,RH Price: $47.79 |
| 13183 |
13183-1400 |
PLATE,SEAT Price: $7.58 |
| 14091 |
14091-1740 |
COVER Price: $139.87 |
| 35063 |
35063-7510 |
STAY,REAR BACK Price: $147.48 |
| 42036 |
42036-7501 |
SLEEVE,12.1X20X85 Price: $10.13 |
| 53061 |
53061-7506 |
BELT-SEAT,RR Price: $127.15 |
| 53061A |
53061-7507 |
BELT-SEAT,FR,RH Price: $127.15 |
| 53061B |
53061-7508 |
BELT-SEAT,FR,LH Price: $127.15 |
| 53066 |
53066-0226-MA |
SEAT-ASSY,RR,LWR,BLAC Price: $586.91 |
| 53066A |
53066-7502-MA |
SEAT-ASSY,FR,LWR,BLAC Price: $505.95 |
| 53066B |
53066-7503-MA |
SEAT-ASSY,BLACK Price: $257.63 |
| 53066C |
53066-7507-MA |
SEAT-ASSY,RR,BACK,BLA Price: $257.63 |
| 92015 |
92015-1190 |
NUT,LOCK,12MM,BLACK Price: $7.34 |
| 92043 |
92043-7503 |
PIN Price: $4.17 |
| 92145 |
92145-7507 |
SPRING Price: $1.50 |
| 92150 |
92150-1895 |
BOLT,FLANGED,12X117 Price: $12.74 |
| 92171 |
92171-7509 |
CLAMP Price: $1.12 |
