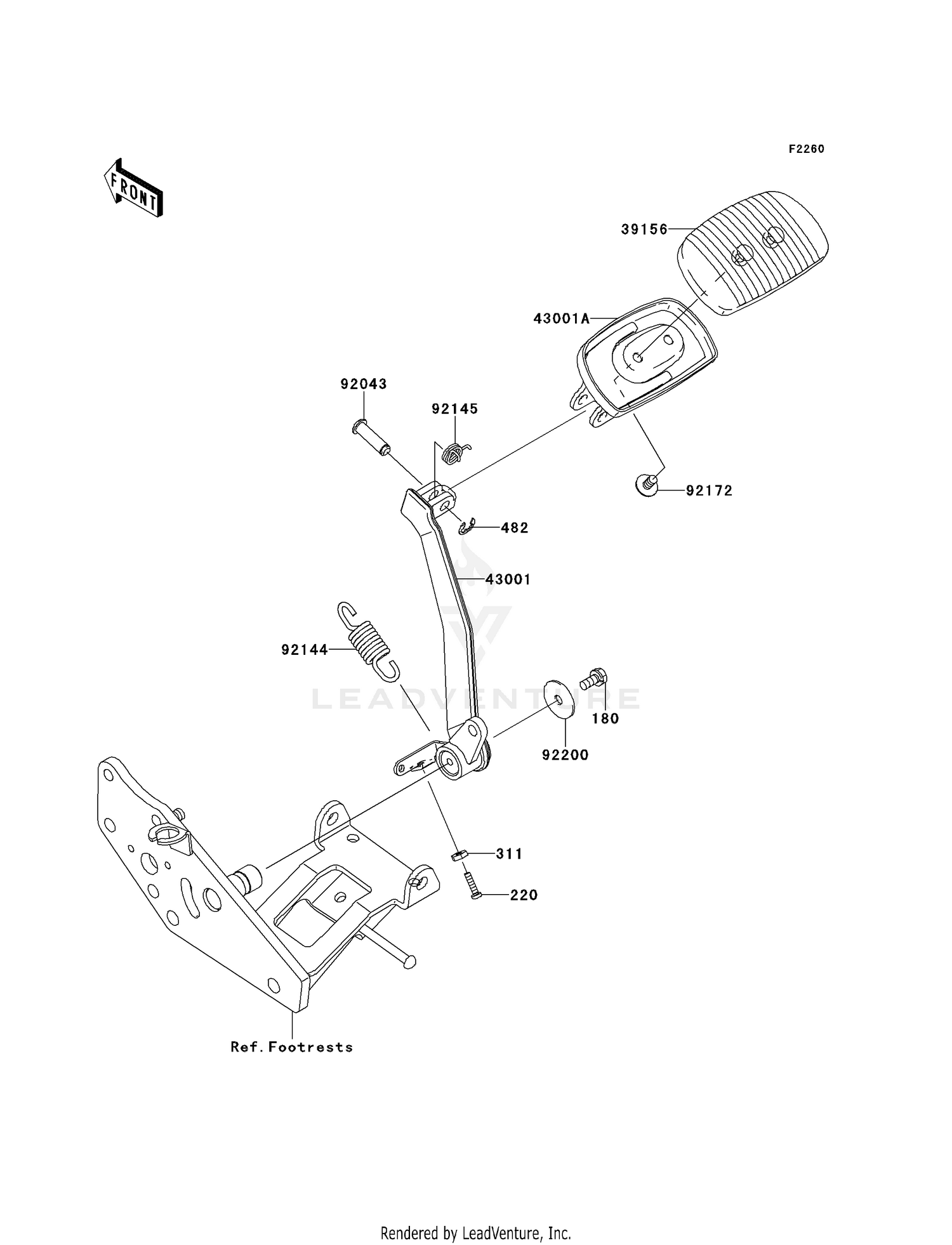

BRAKE PEDAL/TORQUE LINK
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 180 | 180BA0614 | BOLT-UPSET-WS,6X14 Price: $1.28 |
| 220 | 220AB0416 | SCREW-PAN-CROS,4X16 Price: $1.81 |
| 311 | 311AB0400 | NUT-HEX,4MM Price: $0.62 |
| 482 | 482EA7000 | CIRCLIP-TYPE-E Price: $3.92 |
| 39156 | 39156-0045 | PAD,BRAKE PEDAL Price: $38.32 |
| 43001 | 43001-0708 | LEVER-BRAKE Price: $115.93 |
| 43001A | 43001-0709 | LEVER-BRAKE Price: $32.10 |
| 92043 | 92043-0047 | PIN,8X24.5 Price: $7.95 |
| 92144 | 92144-1169 | SPRING,BRAKE PEDAL RETURN Price: $9.43 |
| 92145 | 92145-0168 | SPRING Price: $7.88 |
| 92172 | 92172-0098 | SCREW,6X10 Price: $2.80 |
