| Ref | Part Number | Description |
|---|
| 1 |
504153184 |
Chaincase This part replaces 504152866. Price: $359.99 |
| 1a |
207662034 |
Hex. Flange Screw M6 X 20 Price: $2.19 |
| 1b |
233261434 |
Flange Elastic Nut M6 Price: $4.49 |
| 1c |
234061410 |
Flat Washer 6 mm Price: $1.39 |
| 2 |
250400048 |
Dowel Pin Price: $2.19 |
| 3 |
293200158 |
Oil Seal This part replaces 415049300. Price: $14.49 |
| 4 |
293350115 |
Ball Bearing This part replaces 293350055. Price: $12.11 |
| 5 |
504152576 |
Circlip Price: $10.99 |
| 6 |
504152687 |
Coupling Shaft Price: $196.99 |
| 7 |
293370054 |
Circlip Price: $8.29 |
| 8 |
504153179 |
Spring Release This part replaces 504152899. Price: $11.99 |
| 9 |
504152853 |
Sliding Gear, 27 Teeth Price: Call Us |
| 10 |
293350063 |
Needle Bearing Price: $23.99 |
| 11 |
504152852 |
SPROCKET, 24 TEETH - Call your local BRP dealership Price: $99.99 |
| 12 |
504152689 |
Washer Price: $7.79 |
| 13 |
293370055 |
Circlip Price: $8.29 |
| 14 |
504152784 |
Spring Washer M10 Price: $7.79 |
| 15 |
207102544 |
Hex. Screw M10 X 25 Price: $1.39 |
| 16 |
504152862 |
Washer Price: $10.99 |
| 17 |
504083100 |
Reverse Shaft Price: $46.99 |
| 18 |
250400010 |
Rolled Pin M3 X 10 Price: $1.99 |
| 19 |
504078700 |
Ring Price: $21.99 |
| 20 |
581096900 |
Sprock Ass'y, 19 Teeth Price: $114.99 |
| 21 |
293350064 |
Needle Bearing Price: $23.49 |
| 22 |
570048600 |
Alignement Rod Price: $16.49 |
| 23 |
293350064 |
Needle Bearing Price: $23.49 |
| 24 |
504152724 |
Sprocket, 29 Teeth Price: $184.99 |
| 25 |
504077300 |
Spacer Price: $7.09 |
| 26 |
293200159 |
Oil Seal This part replaces 504152571. Price: $16.49 |
| 27 |
293350059 |
Ball Bearing This part replaces 504152573. Price: $30.99 |
| 28 |
504152582 |
Circlip Price: $10.99 |
| 29 |
504152726 |
Sprocket, 43 Teeth Price: $154.99 |
| 30 |
504152572 |
Circlip Price: $7.09 |
| 31 |
293300122 |
O-Ring Price: $2.19 |
| 32 |
504152619 |
Magnetic Cap Price: $24.49 |
| 33 |
504152629 |
Drive Chain, 104 Links Price: $184.99 |
| 34 |
232006414 |
Hex. Nut M10 X 1.5 Price: $1.39 |
| 35 |
504152602 |
Adjustment Screw Price: $12.99 |
| 36 |
504152636 |
Magnetic Plug 1/8 - 27 NPTF Price: $11.99 |
| 37 |
250200100 |
Bonded Washer Price: $2.19 |
| 38 |
504153431 |
Chaine Tensionner This part replaces 504152748. Price: $16.49 |
| 39 |
504152739 |
Slider Chain Price: $67.99 |
| 40 |
504152841 |
Tensioner Axle Price: $16.99 |
| 41 |
504152282 |
Circlip Price: $3.29 |
| 42 |
504153122 |
Chain Slider This part replaces 504152722. Price: $16.99 |
| 43 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip Price: $4.19 |
| 44 |
504152785 |
Chaincase Cover Ass'y Price: Call Us |
| 44a |
504152896 |
Rotation Sensor This part replaces 504152732. Price: $38.99 |
| 45 |
293300130 |
Tight Seal Price: $7.69 |
| 46 |
250000360 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $2.19 |
| 47 |
504152860 |
Cap Price: $21.99 |
| 48 |
414580700 |
Male Connector Price: $4.19 |
| 49 |
219704410 |
Polyurethane Hose 10000Mm Long Price: $57.99 |
| 50 |
504153074 |
Tube Protector This part replaces 504152900. Price: $14.99 |
| 51 |
293750002 |
Tie Wrap 142 mm Price: $1.25 |
| 52 |
291000714 |
ATTACHE *BRACKET - Call your local BRP dealership Price: $2.39 |
| 53 |
414554800 |
Spring Clamp Price: $0.90 |
| 54 |
504152797 |
Fork Ass'y Price: Call Us |
| 55 |
414484400 |
O-Ring Price: $7.69 |
| 56 |
504152956 |
Welded Axle Fork This part replaces 504152719. Price: $31.99 |
| 57 |
250400045 |
Spring Pin M5 X 16 Price: $4.69 |
| 59 |
504153427 |
Lever This part replaces 504152788. Price: $31.99 |
| 60 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership Price: $8.29 |
| 61 |
504152951 |
Ball Joint This part replaces 504152783. Price: $46.49 |
| 62a |
504152710 |
Double Ball Joint Price: $51.99 |
| 63 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip Price: $2.19 |
| 64 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip Price: $2.19 |
| 69 |
504082900 |
Washer Price: $2.69 |
| 70 |
207089044 |
Hex. Screw M8 X 90 Price: $3.59 |
| 71 |
507032437 |
Bearing Housing Price: $19.99 |
| 72 |
293350059 |
Ball Bearing Price: $30.99 |
| 73 |
293300122 |
O-Ring Price: $2.19 |
| 74 |
504152619 |
Magnetic Cap Price: $24.49 |
| 75 |
504152572 |
Circlip Price: $7.09 |
| 77 |
250300028 |
Clinch Stud, M8 X 25 Price: $4.49 |
| 78 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 79a |
Not |
Available As Spare Part - Sprocket 8th |
| 79b |
Not |
Available As Spare Part - Sprocket 8th |
| 80a |
415129528 |
Track Guide This part replaces 504152410. Price: $3.39 |
| 80b |
504152651 |
Cleat Price: $9.69 |

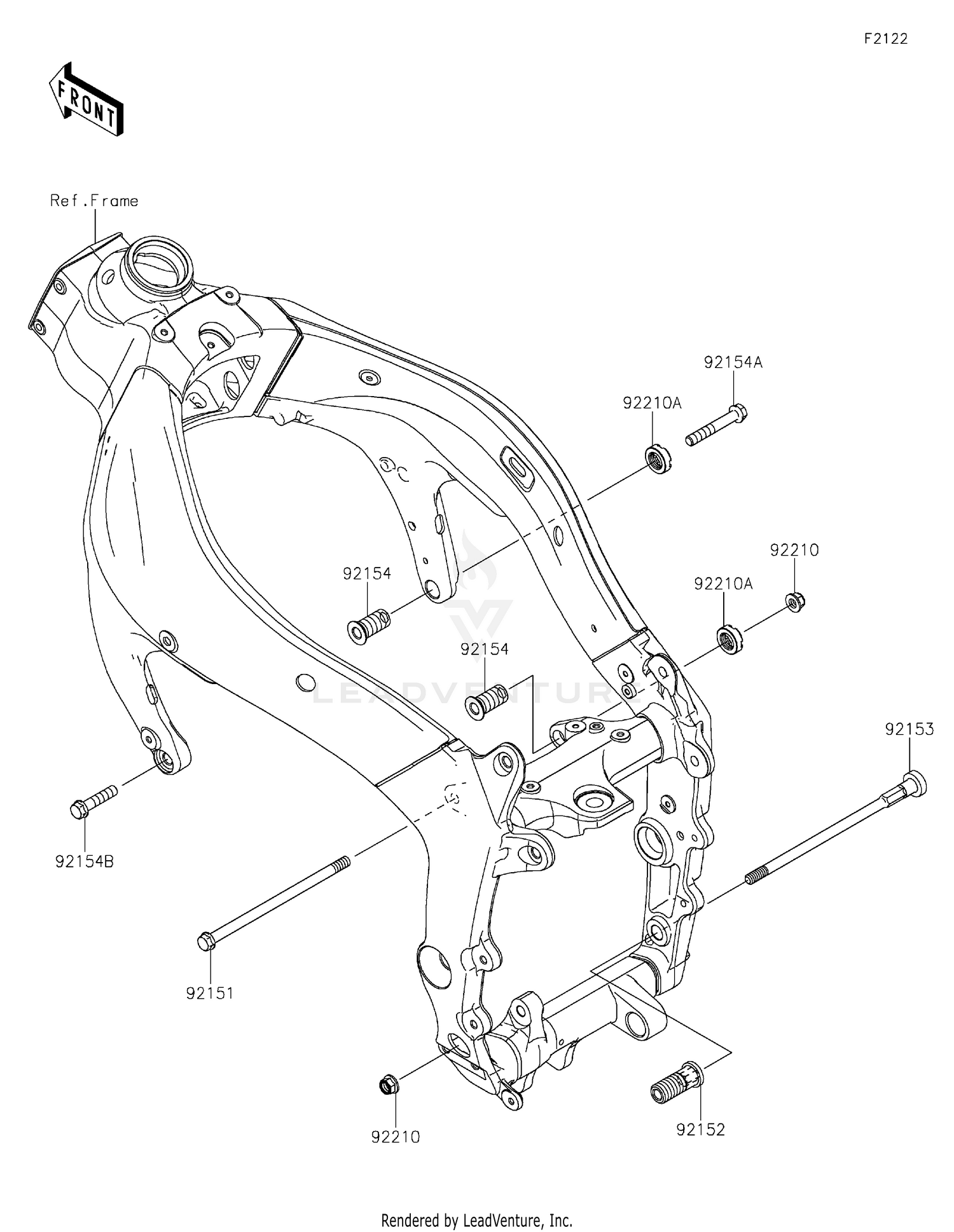

| 92151 |
92151-1915 |
BOLT,FLANGED,10X190 Price: $16.41 |
| 92152 |
92152-0076 |
COLLAR,ENGINE MOUNT Price: $28.70 |
| 92153 |
92153-1328 |
BOLT,SOCKET,10X227 Price: $37.85 |
| 92154 |
92154-0249 |
BOLT,ENGINE MOUNT,18MM Price: $30.15 |
| 92154A |
92154-0312 |
BOLT,FLANGED,10X65 Price: $7.66 |
| 92154B |
92154-0313 |
BOLT,FLANGED,10X40 Price: $5.59 |
| 92210 |
92210-1139 |
NUT,LOCK,FLANGED,10MM Price: $4.18 |
