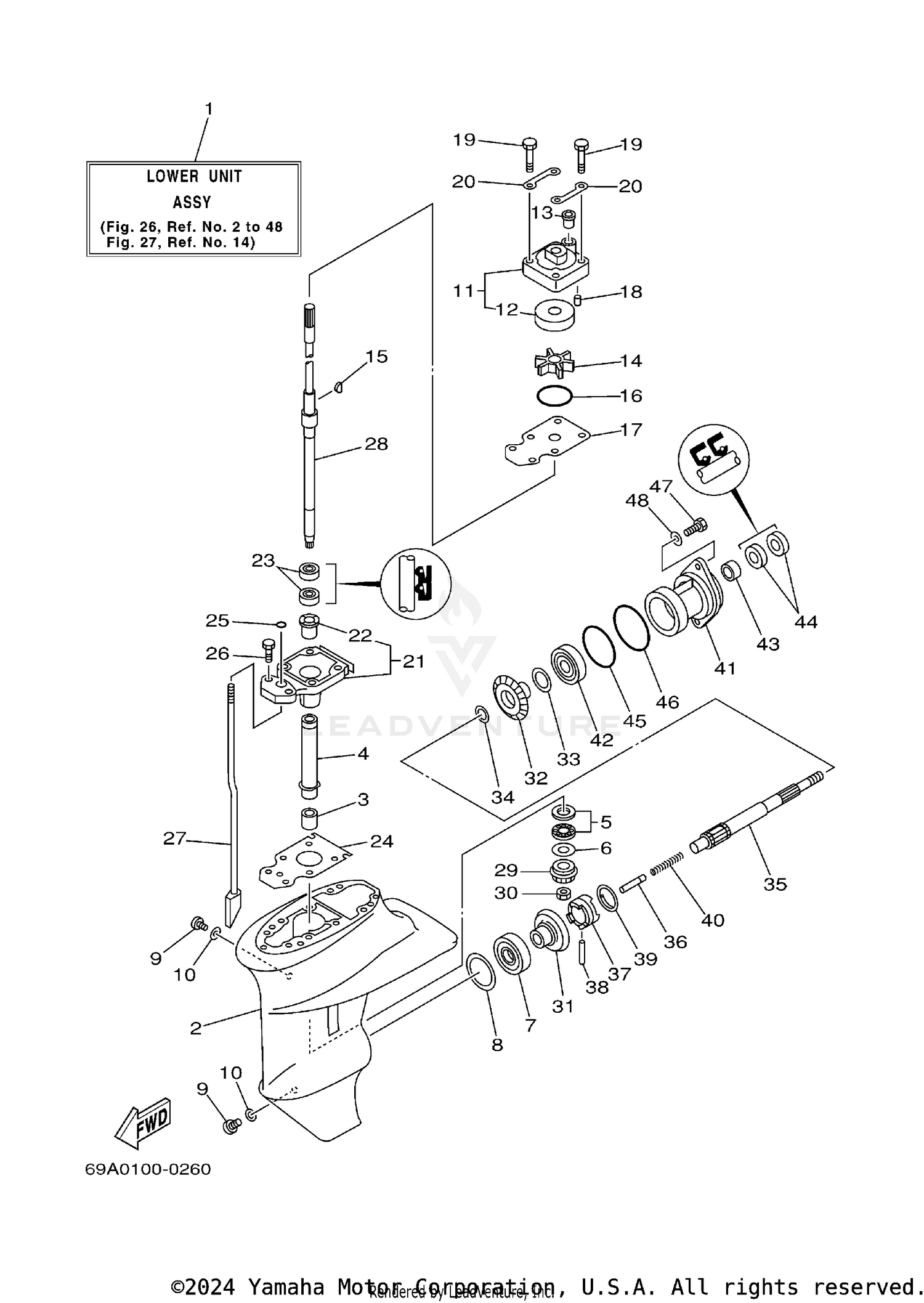

| Ref | Part Number | Description |
|---|
| 3 |
93315-314V8-00 |
BEARING Price: $61.99 |
| 4 |
63V-45536-00-00 |
SLEEVE, DRIVE SHAFT Price: $38.15 |
| 5 |
93341-41414-00 |
BEARING Price: $45.99 |
| 7 |
93332-00005-00 |
BEARING Price: $80.99 |
| 9 |
90340-08002-00 |
PLUG, STRAIGHT SCREW Price: $12.75 |
| 10 |
90430-08003-00 |
GASKET This part replaces 90430-08020-00. Price: $1.55 |
| 11 |
63V-44301-00-00 |
WATER PUMP HOUSING COMP. Price: $40.35 |
| 12 |
63V-44322-00-00 |
INSERT, CARTRIDGE Price: $17.15 |
| 13 |
647-44366-01-00 |
DAMPER, WATER SEAL 2 This part replaces 647-44366-00-00. Price: $2.70 |
| 14 |
63V-44352-01-00 |
IMPELLER Price: $27.75 |
| 15 |
664-44338-00-00 |
KEY, WOODRUFF Price: $10.70 |
| 16 |
93210-44704-00 |
O-RING This part replaces 93210-44398-00. Price: $8.49 |
| 17 |
63V-44323-00-00 |
OUTER PLATE, CARTRIDGE Price: $12.25 |
| 18 |
93604-10M03-00 |
PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 19 |
97080-08045-00 |
BOLT Price: $10.49 |
| 20 |
63V-44328-01-00 |
PLATE This part replaces 63V-44328-00-00. Price: $4.15 |
| 21 |
63V-45331-00-CA |
HOUSING, BEARING This part replaces 63V-45331-00-5B. Price: $59.00 |
| 22 |
626-45316-09-00 |
BUSHING, DRIVE SHAFT This part replaces 90381-14020-00. Price: $28.00 |
| 23 |
93101-20048-00 |
OIL SEAL Price: $9.49 |
| 24 |
63V-45315-A0-00 |
PACKING, LOWER CASING Price: $15.65 |
| 25 |
93210-06ME6-00 |
O-RING Price: $3.55 |
| 26 |
97095-08025-00 |
BOLT This part replaces 97080-08025-00. Price: $9.49 |
| 29 |
63V-45551-00-00 |
PINION (13T) Price: $73.20 |
| 30 |
90179-08M06-00 |
NUT Price: $13.49 |
| 31 |
6E7-45560-01-00 |
GEAR 1 (27T) Price: $99.20 |
| 32 |
6E7-45571-00-00 |
GEAR 2 (27T) Price: $116.25 |
| 34 |
90201-17682-00 |
WASHER, PLATE Price: $2.65 |
| 35 |
683-45611-00-00 |
SHAFT, PROPELLER Price: $198.40 |
| 36 |
650-45635-00-00 |
PLUNGER, SHIFT Price: $11.40 |
| 37 |
682-45631-00-00 |
CLUTCH, DOG Price: $47.95 |
| 38 |
90250-05010-00 |
PIN, STRAIGHT Price: $5.55 |
| 39 |
648-45633-11-00 |
RING, CROSS PIN This part replaces 648-45633-00-00. Price: $8.40 |
| 40 |
90501-14M09-00 |
SPRING, COMPRESSION This part replaces 90501-14M06-00. Price: $6.25 |
| 41 |
683-45361-02-8D |
CAP, LOWER CASING This part replaces 683-45361-02-4D. Price: $122.95 |
| 42 |
93306-00519-00 |
BEARING This part replaces 93306-00501-00. Price: $39.99 |
| 43 |
93315-317U2-00 |
BEARING Price: $21.99 |
| 44 |
93101-17054-00 |
OIL SEAL Price: $11.10 |
| 45 |
93210-57M09-00 |
O-RING Price: $7.05 |
| 46 |
93210-56M80-00 |
O-RING Price: $9.10 |
| 47 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
